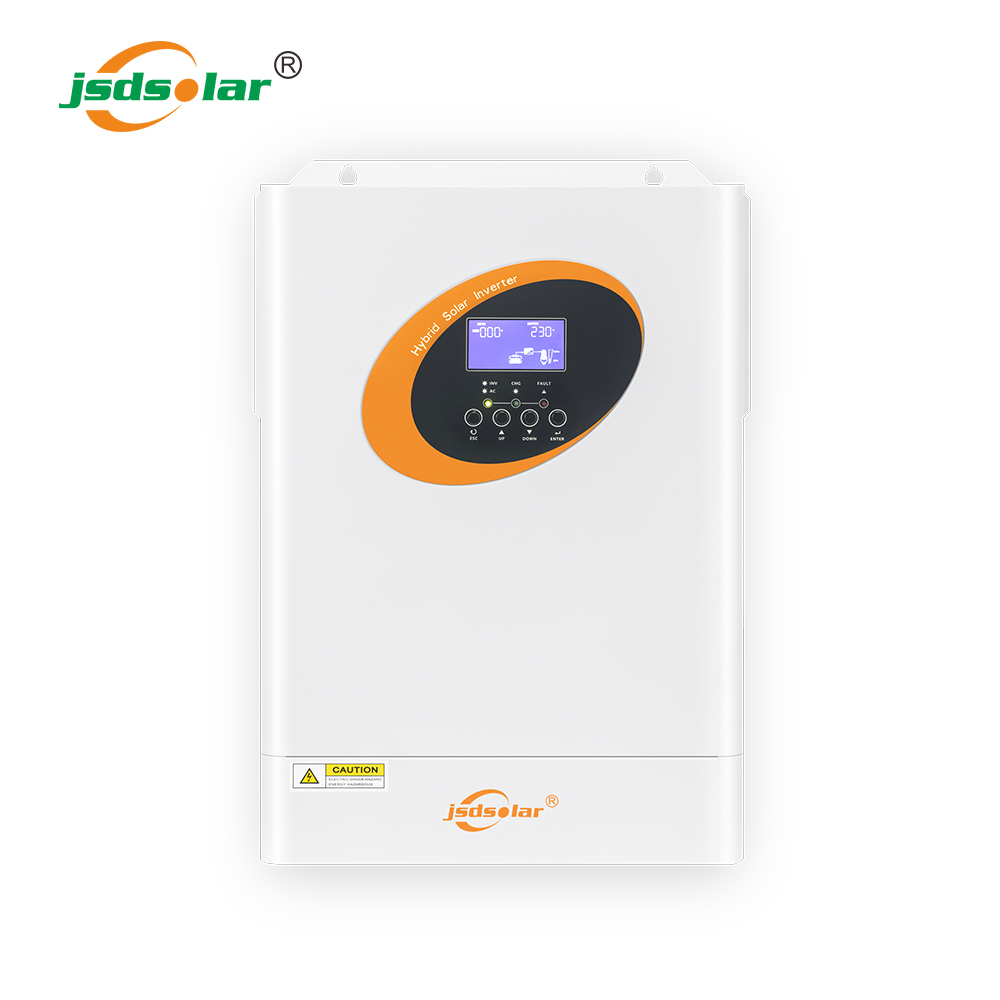

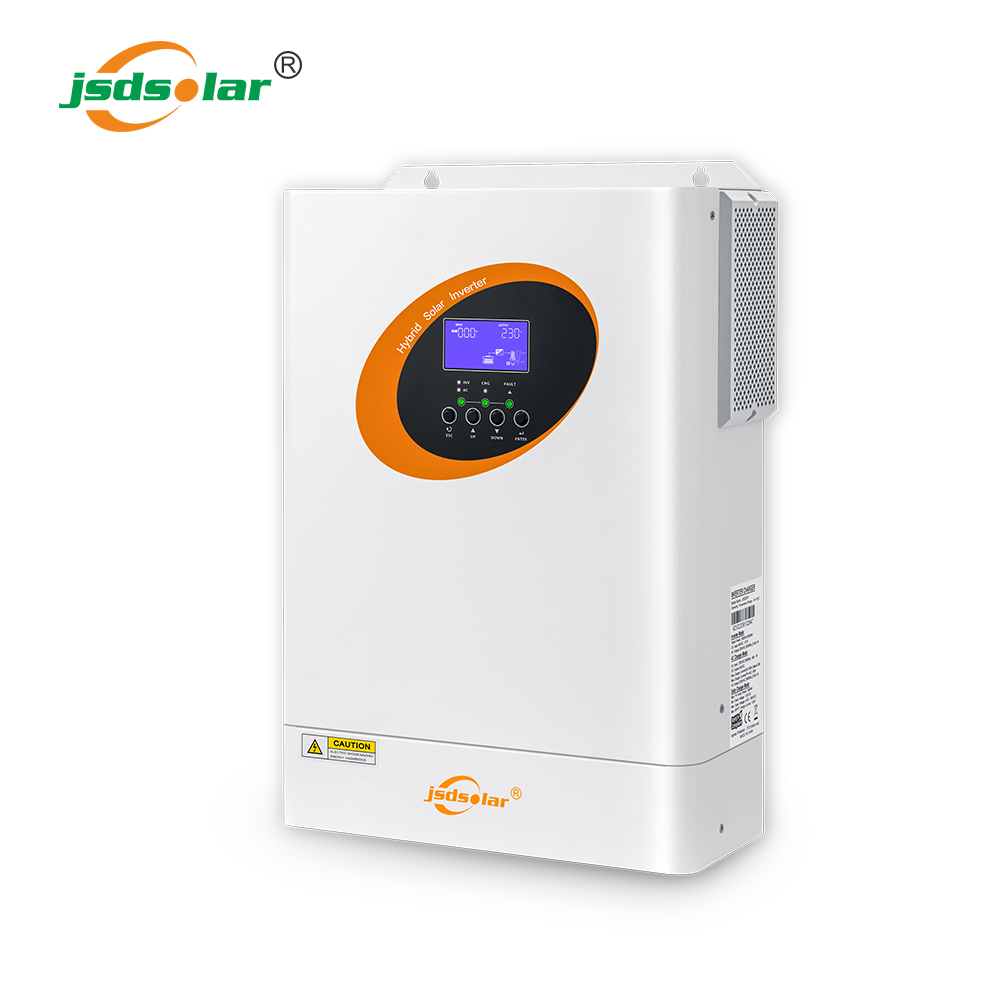

Panda-Eye 5.5KW solar inverter with improved cooling, unique design, and software support for batte

• Detachable dust-proof net reduces temperature rise, enhances inverter heat

dissipation, and prolongs service life.
• Unique panda-inspired appearance adds exotic elements, enhances design,

and elevates brand image.
• Adaptive cooling fan minimizes noise by adjusting speed according to internal

temperature.
• Software upgrade support ensures continual improvement and enhanced

technical experience.
• Inverter communicates with battery's BMS for precise control, maintaining

battery life and ensuring safe charging.

MODEL	J5500HPC
Parallel	5.5KW
Capability	YES,12units
Input
Nominal voltage	230VAC
Acceptable voltage Range	170-280 VAC (For Personal Computers) 90-280 VAC(For Home Appliances)
Frequency	50/60HZ(Auto sensing)
Output
Nominal voltage	220/230VAC土5%
Surge Power	10000VA
Frequency	50Hz/60Hz
Waveform	Pure Sine Wave
Transfer Time	10ms (For Personal Computers) 20ms (For Home Appliances)
Peak Efficiency (Pv to INV)	97%
Peak Efficiency (Battery to INV)	93%
Overload Protection	5s@>=150%load; 10s 110%~150%load
Crest Factor	3:01
Admissible Power Factor	0.6~1(inductive or capacitive)
Battery
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	63 VDC
Charging Method	CC/CV
Solar Charge & AC Charge

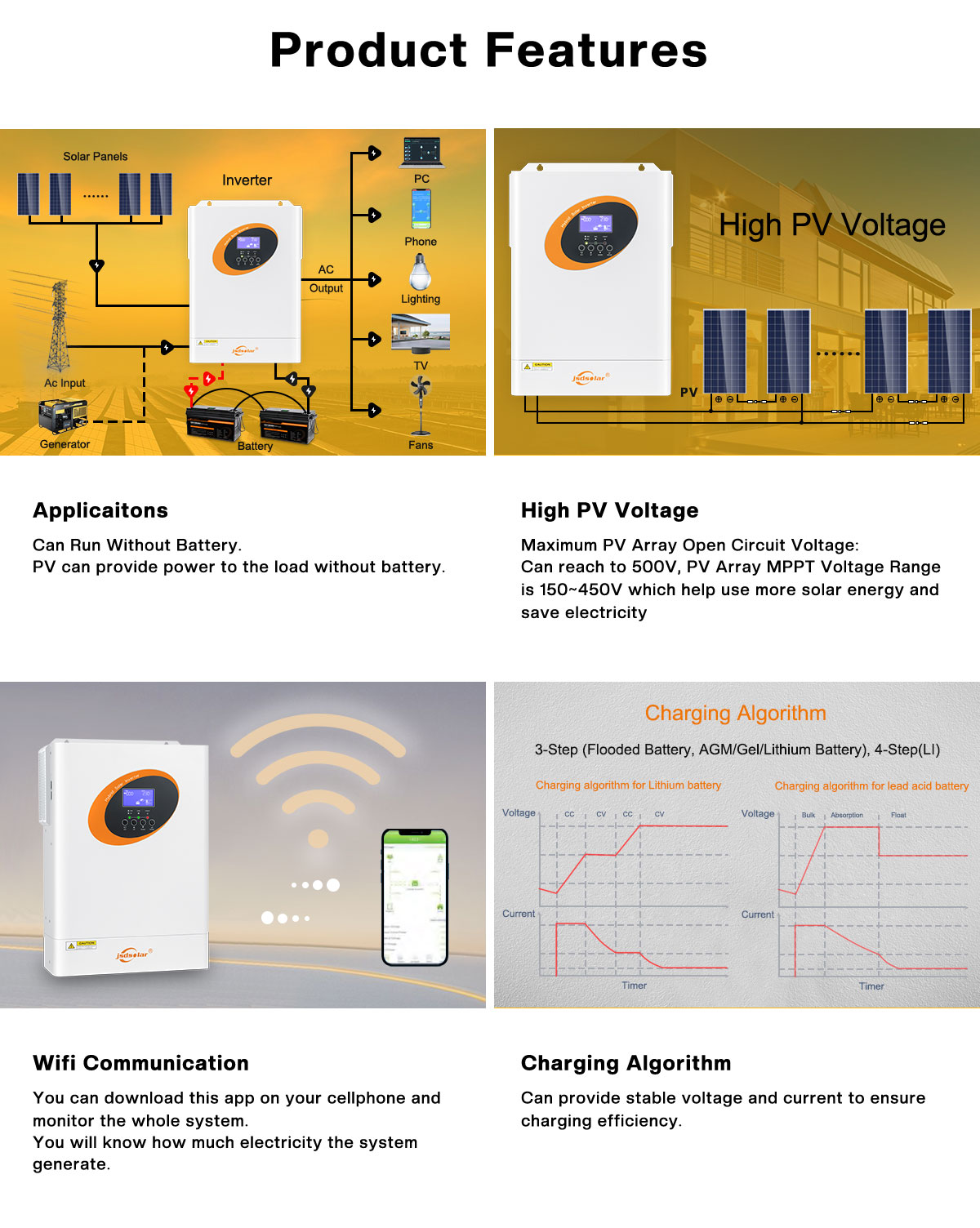

Solar Charge Type	MPPT
Max. PV Array Power	5500W
Max. PV Array Open Circuit Voltage	500 VDC
PV Array MPPT Voltage Range	120VDC~450 VDC
Maximum Solar Input Current	18A
Maximum Solar Charge Current	100A
Maximum AC Charge Current	60A
Maximum Charge Current	100A

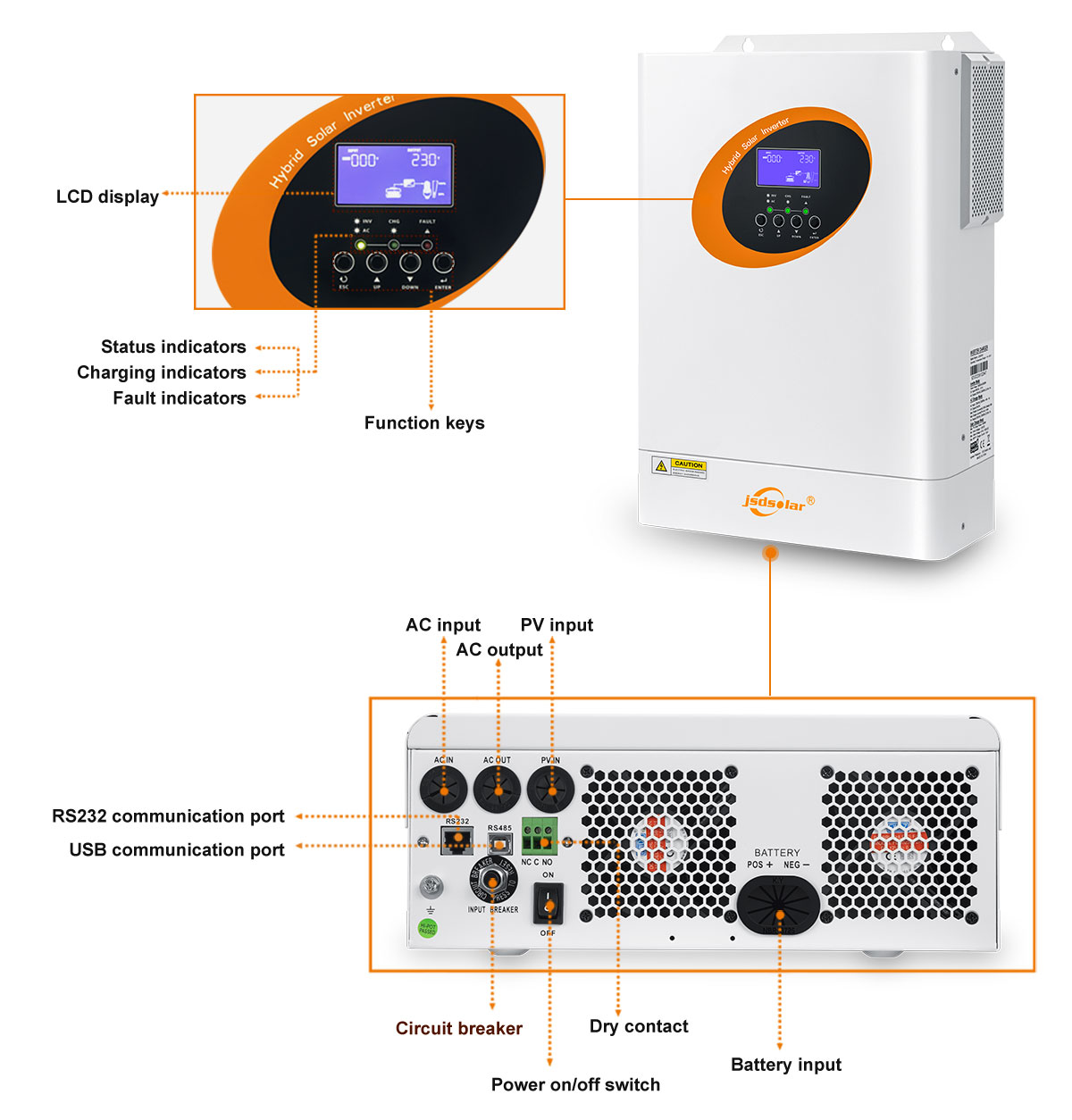

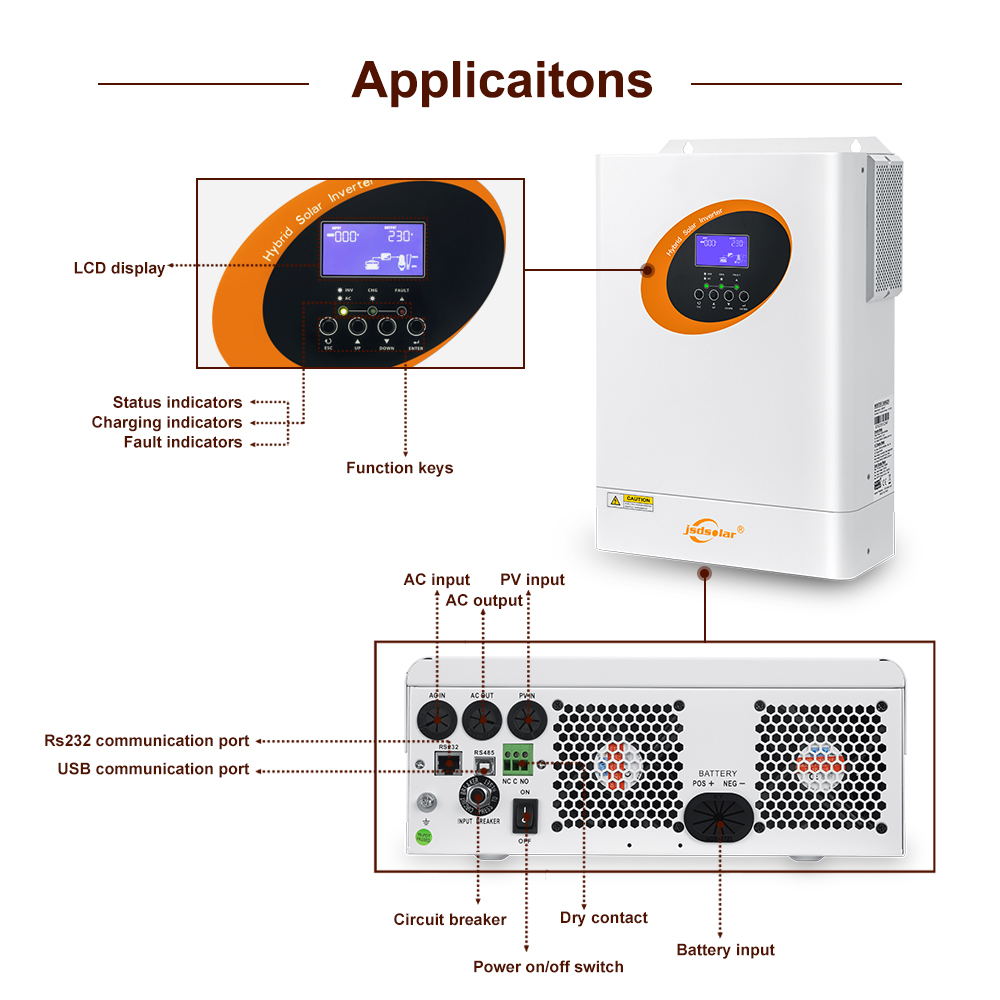

Communication Interface	USB/RS232/Dry-contact
Environment
Operating Temperature	(-10℃~50℃)
Storage Temperature	(-15℃~60℃)
Humidity	5% to 95% Relative Humidity (Non-condensing)
