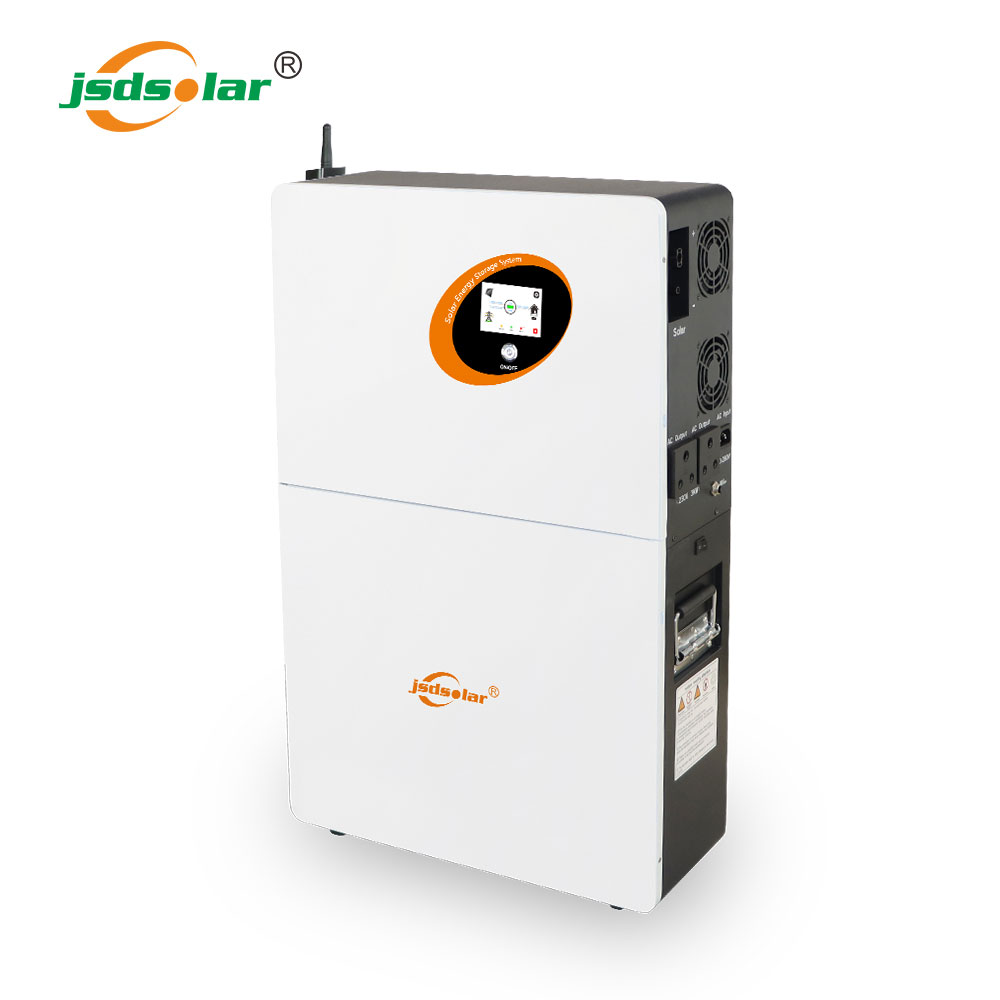

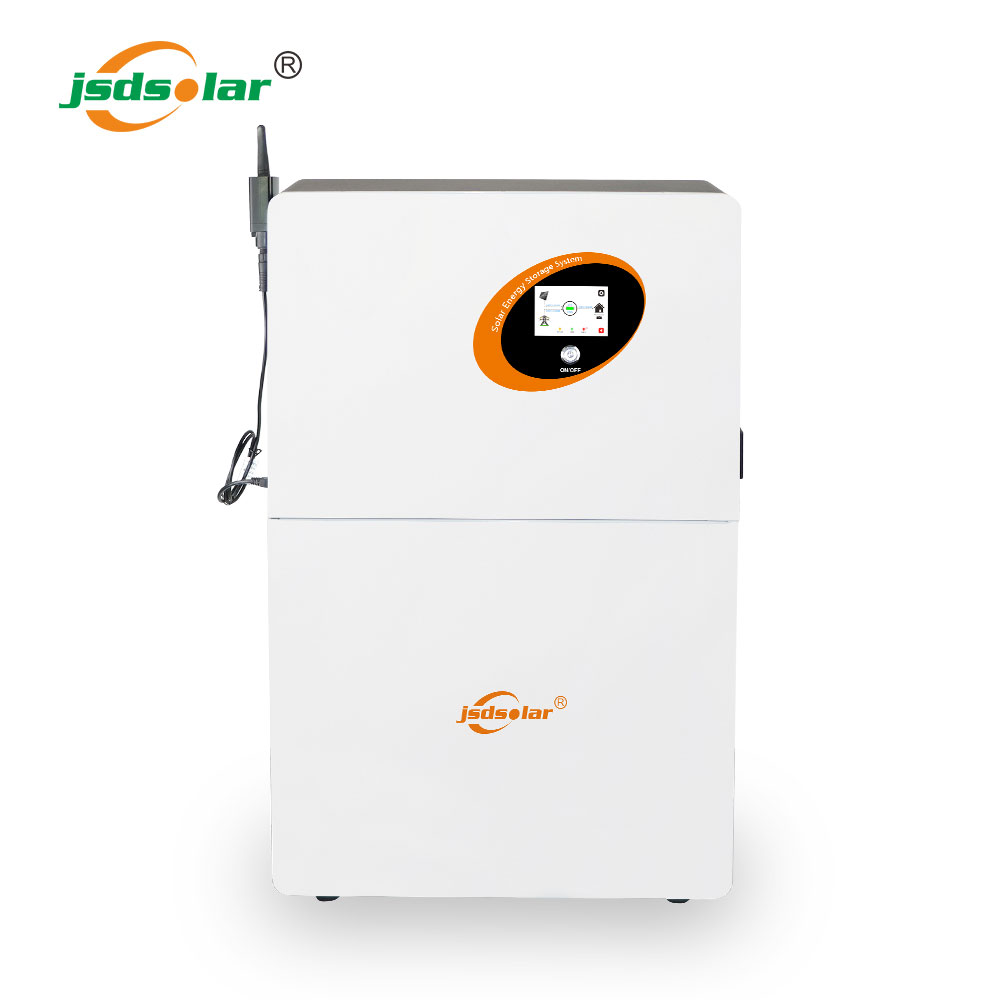

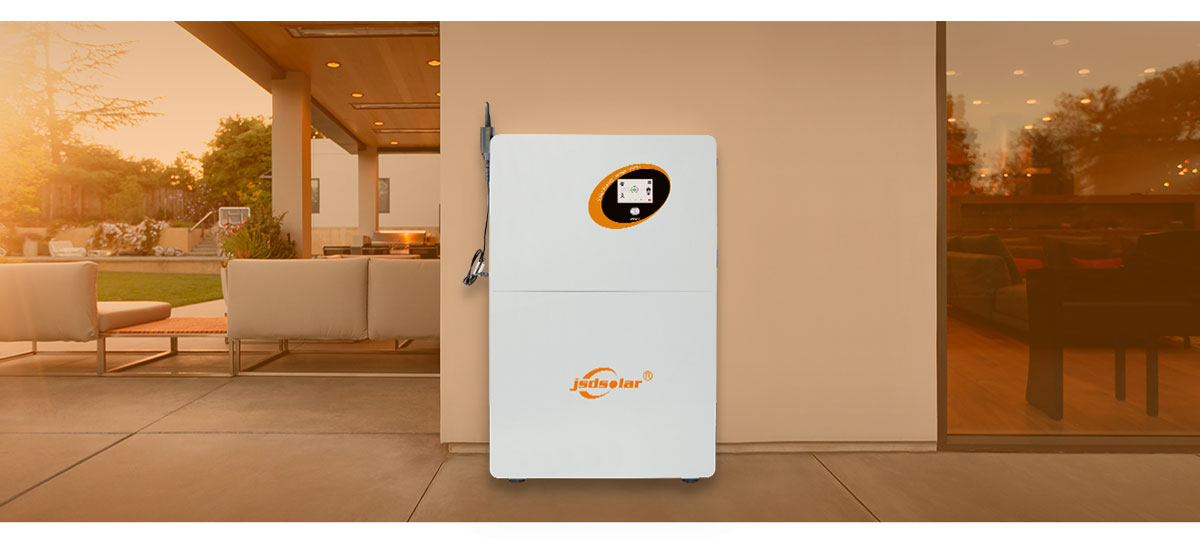

All-In-One solar system 3KW solar Inverter and 5KWH LiFePO4 battery

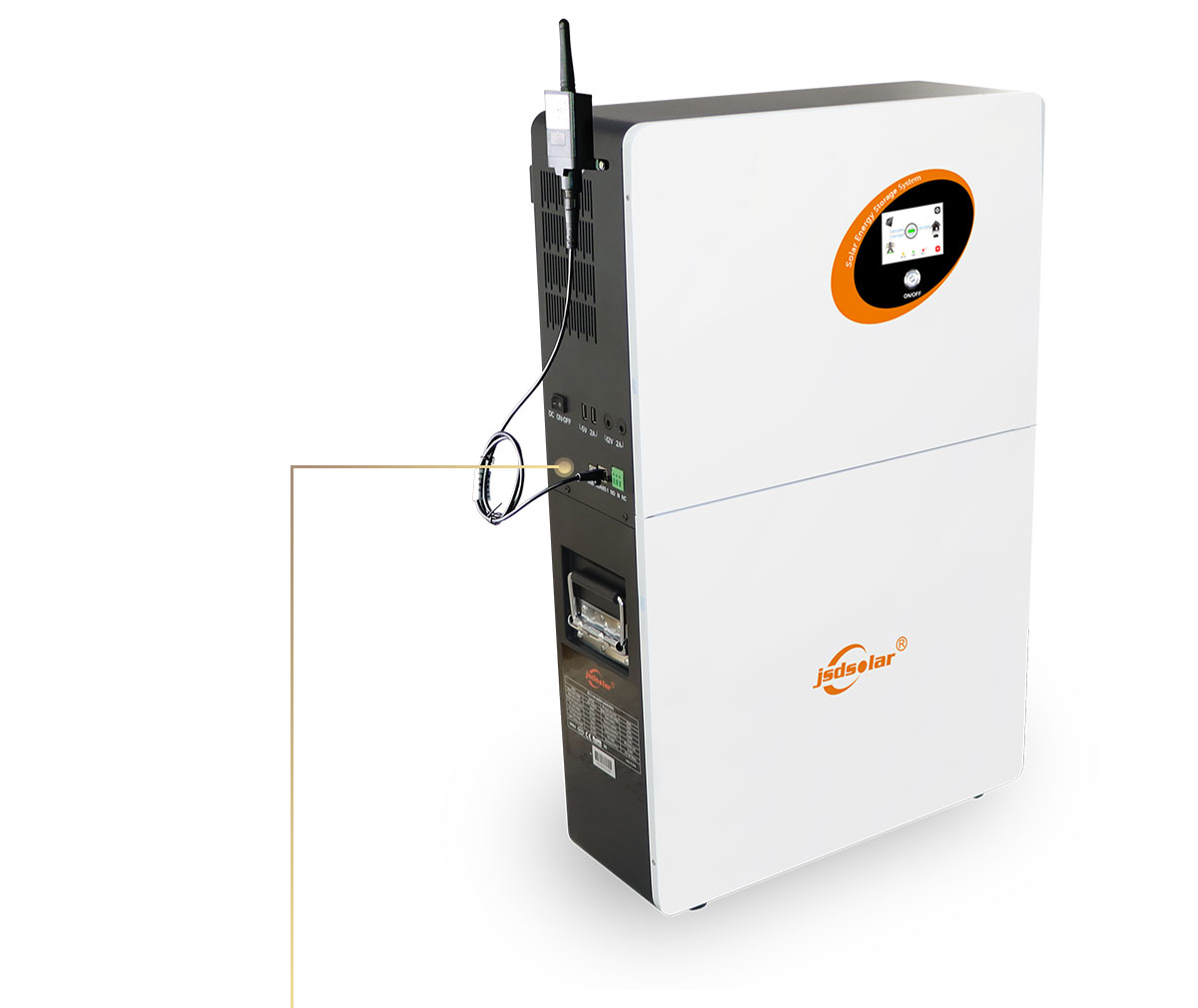

• Compact design saves installation space, colorful display interface shows

system status, smart WiFiremote monitoring available.
• Comprehensive protection for charging, discharging, circuit, high-frequency

solar inverter, MPPT charge controller achieve high conversion efficiency for

the solar system.
• Double cooling fan extends lifespan, CE, UN38.3, MSDS certified.

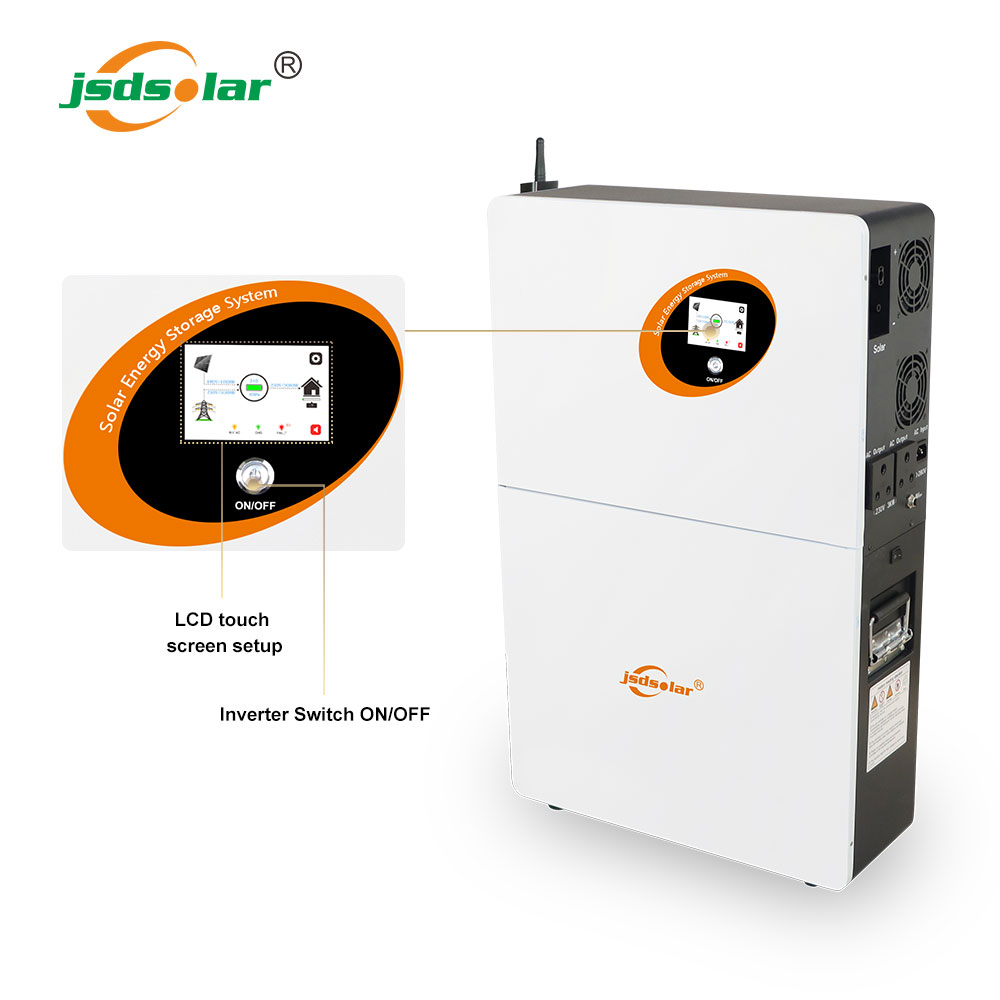

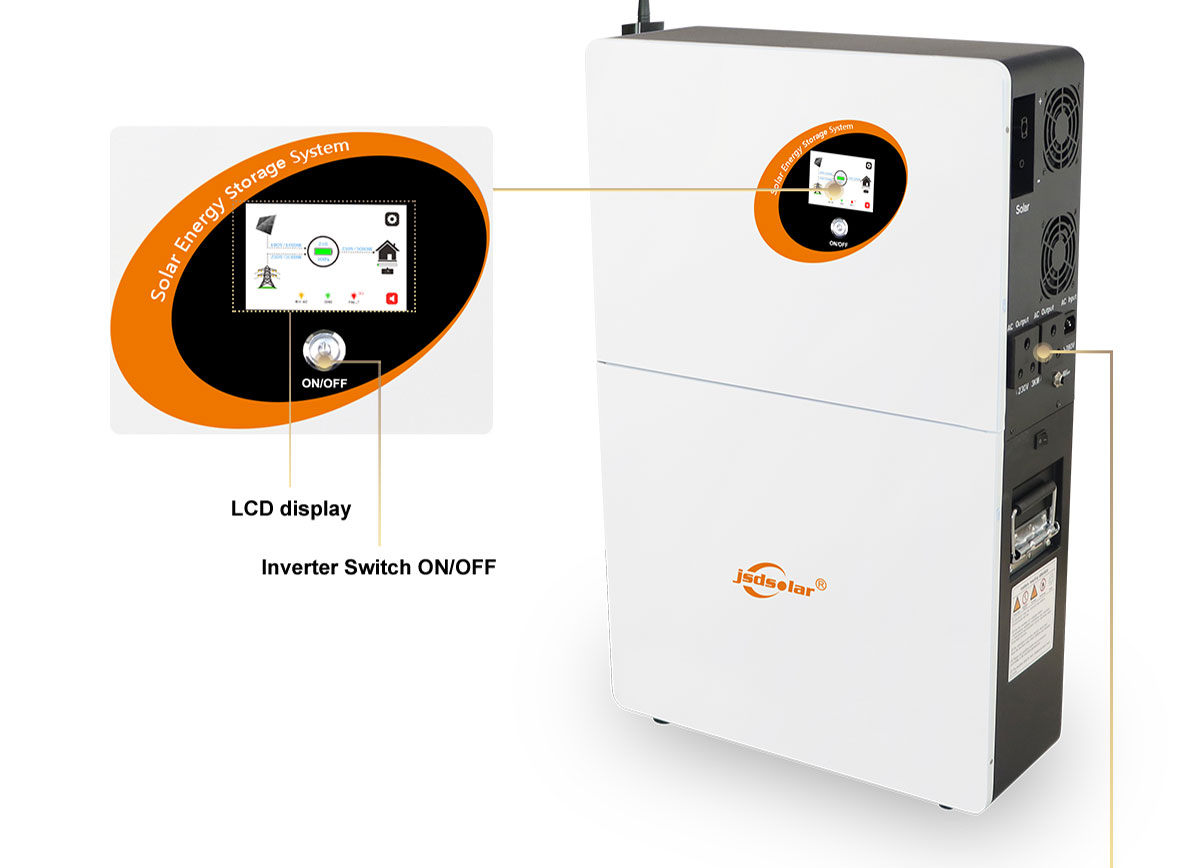

• Colorful display screen shows system status, touch screen for parameter

adjustment.
• Recycling times is up to 6000-cycle LiFePO4 batteries to support long

retirement life.

SKU		JHP3K5
Battery rated voltage		25.6VDC
Battery Capcity		5120Wh

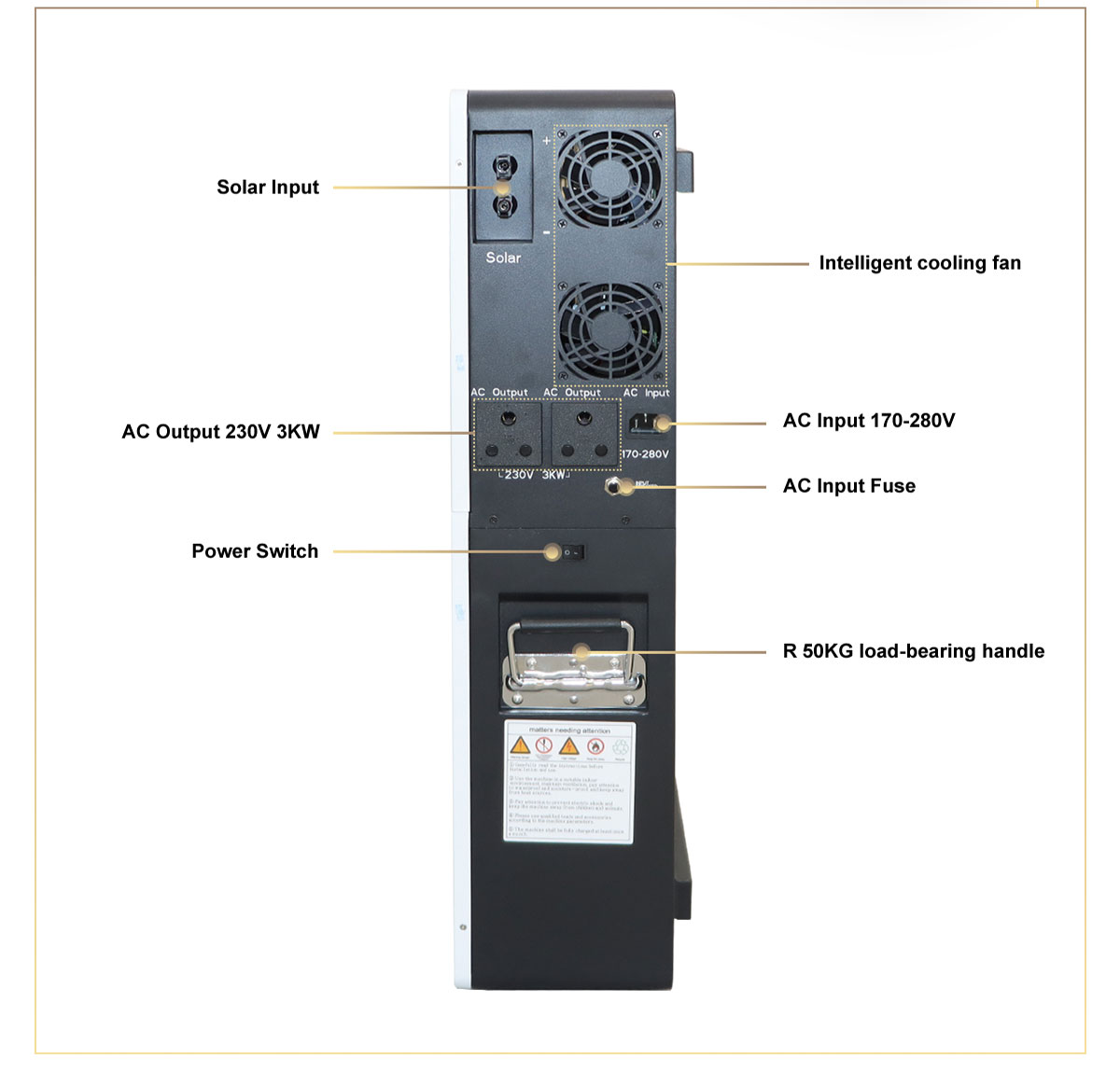

Solar system	MAX input power	5000W
	AC input voltage	170-280VAC
	MAX output power	3000W
	Output voltage	230VAC
	Output frequency	50/60Hz auto
MPPT PV Input	MPPT voltage range	30V-100VDC
	Max PV input power	1600W
	Charge current range	0-60A
	MPPT efficiency	≥96%
	PV input voltage	30-108VDC

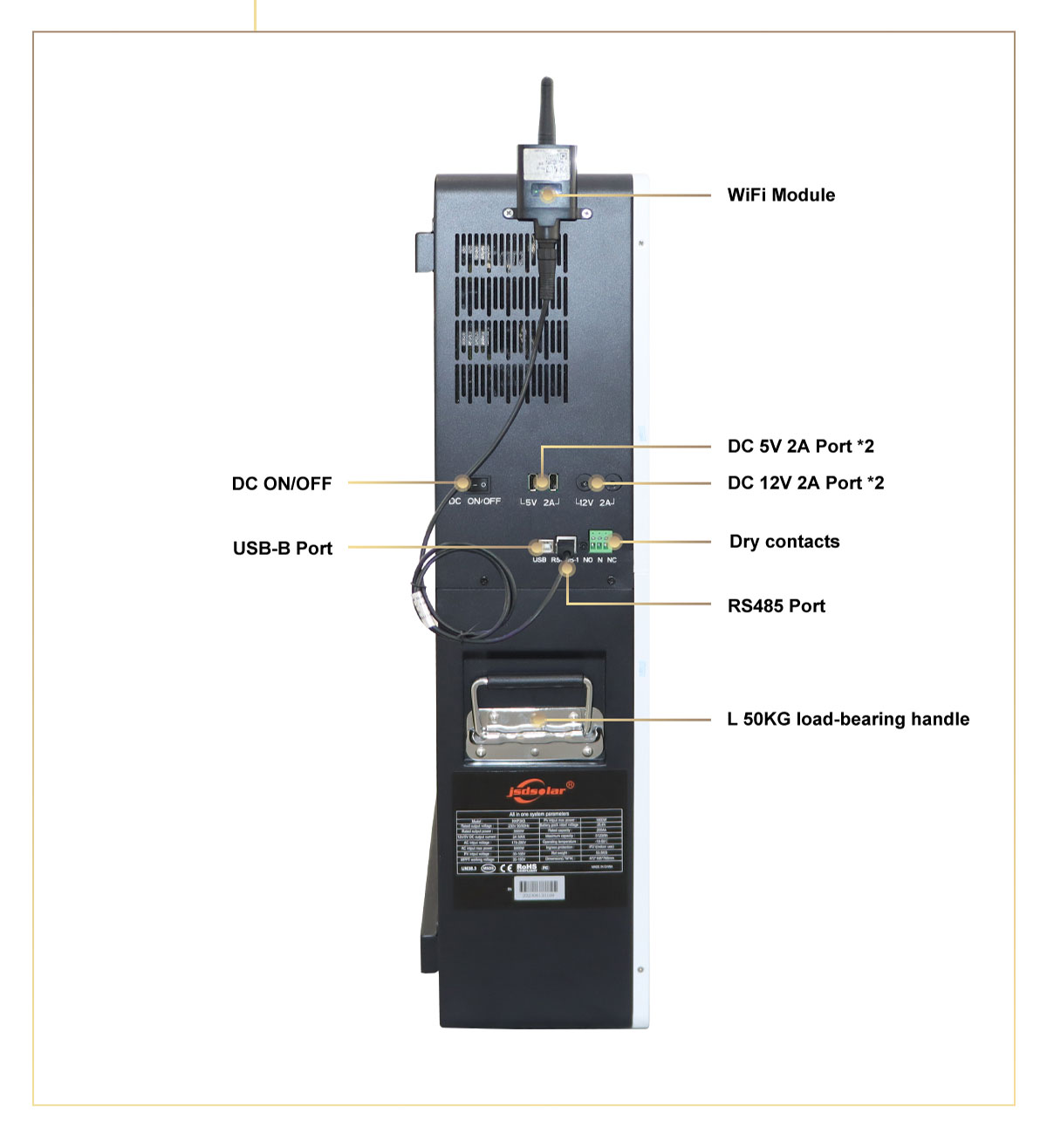

DC Output	5V USB DC Output	current limiting 2A
DC Output	12V DC2.1 DC Output	current limiting 2A
Temperature control system		Smart fan
Work environment temperature		-20~+50 ℃
Storage environment temperature		-25~+55 ℃
Operation/storage environment humidity		0-90% no condensate

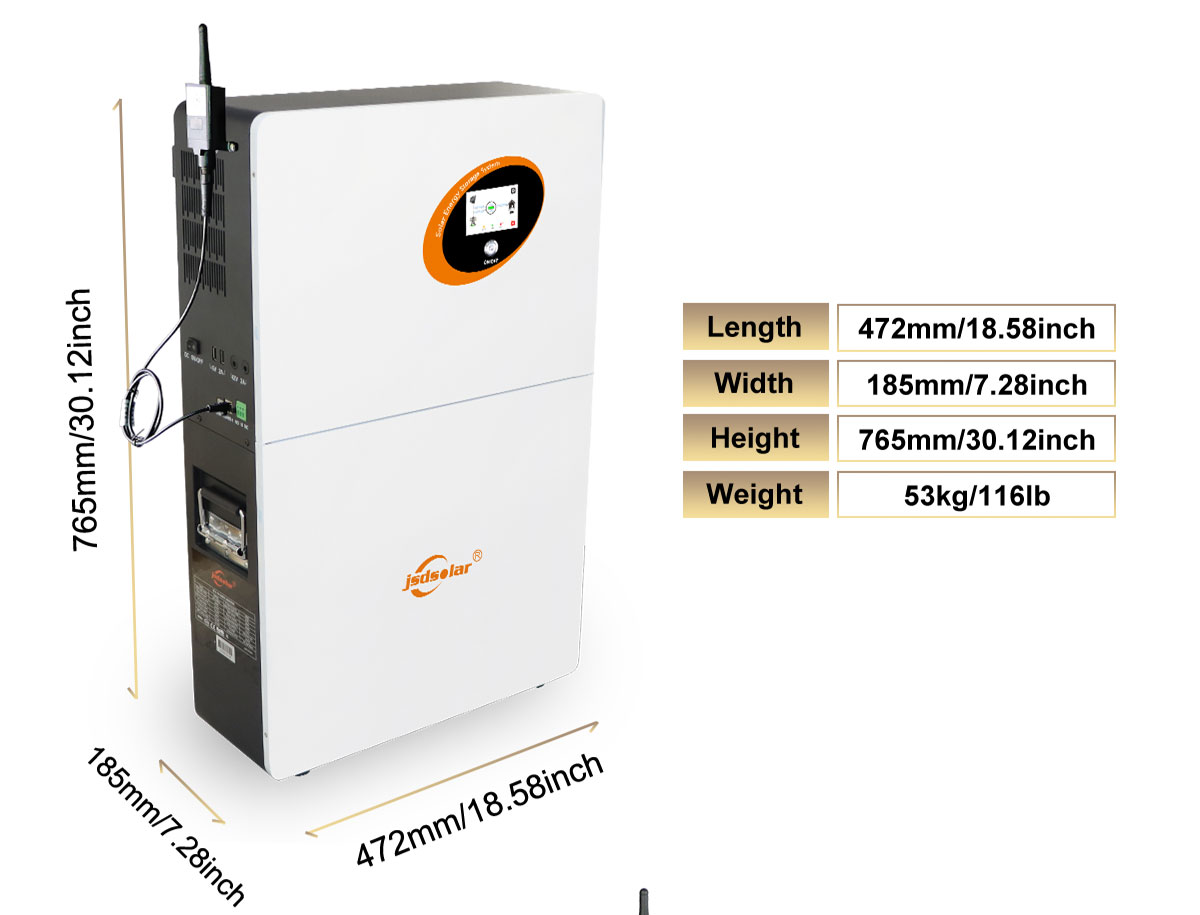

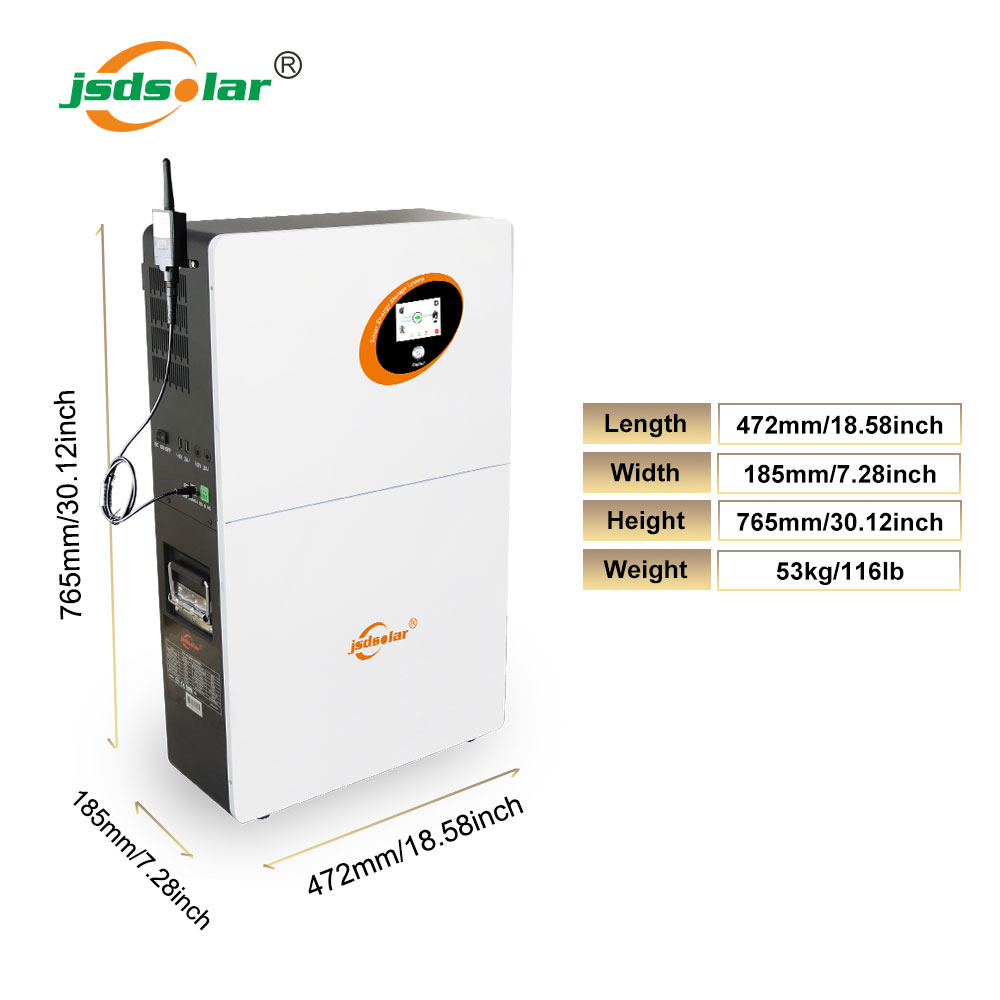

Product Size: LWH (mm)		472185765
Package Size : LWH (mm)		Inverter box 552429.5265
Package Size : LWH (mm)		battery box 552496.0265
