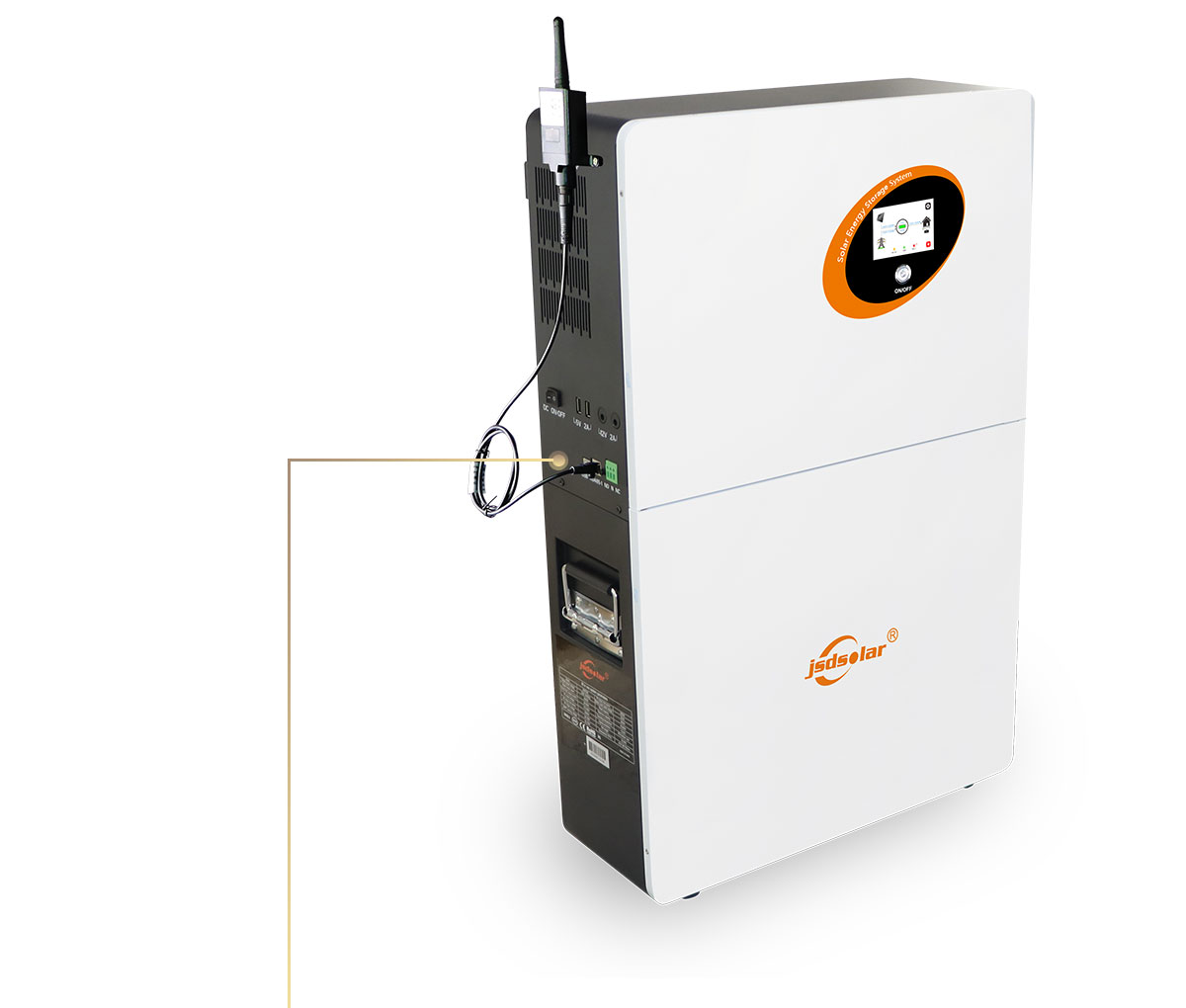

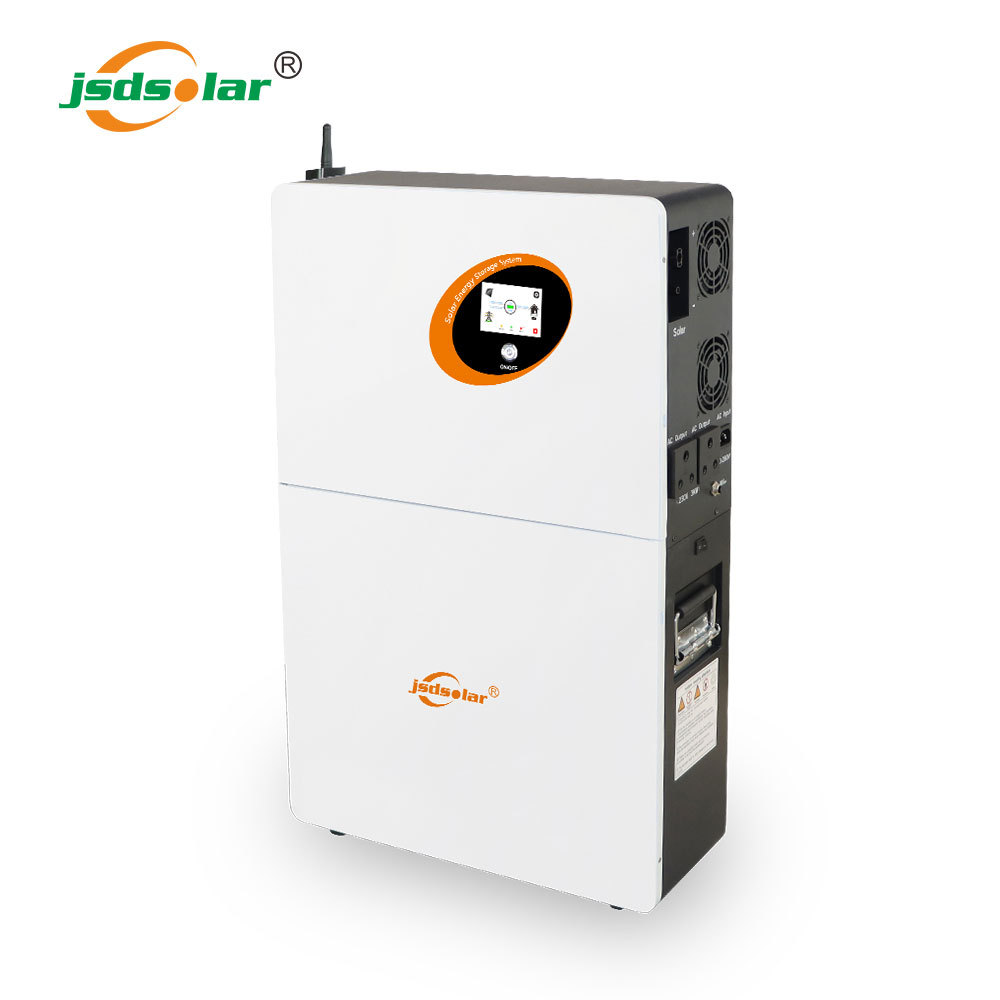

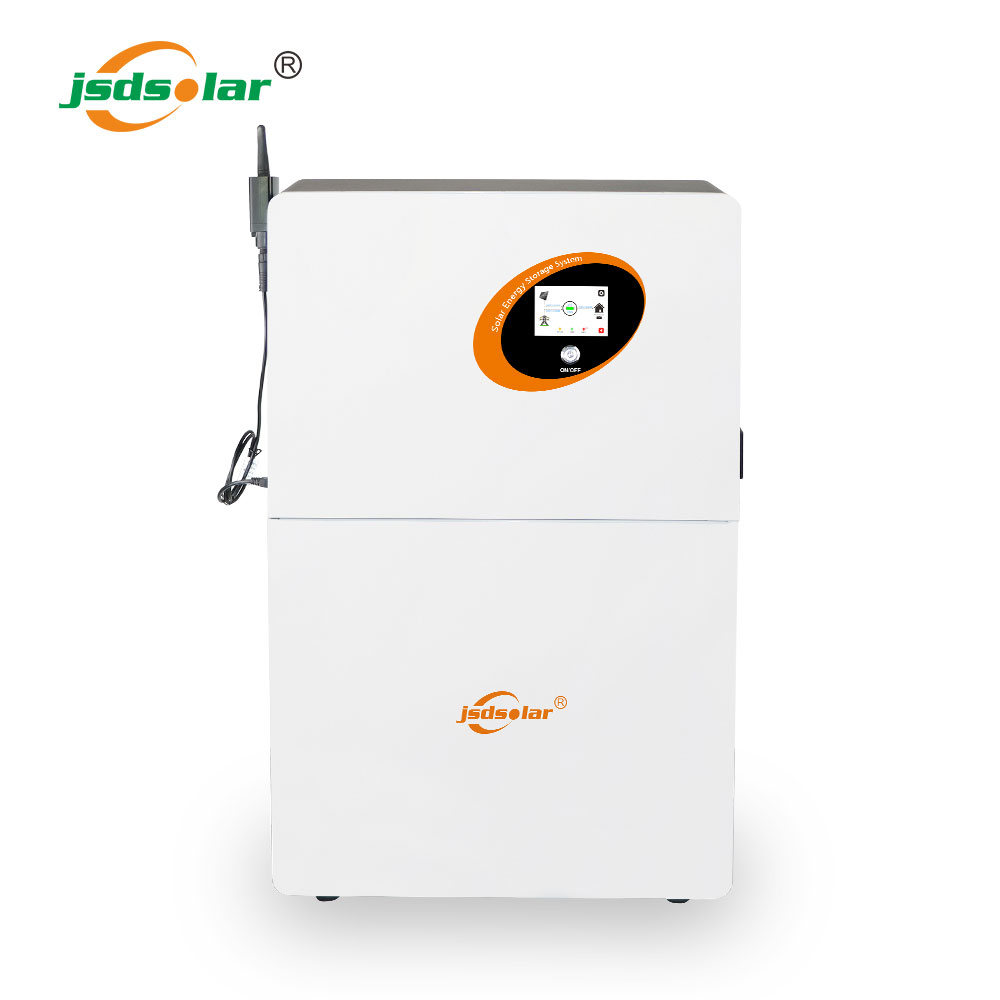

All-In-One solar system 5KW solar Inverter and 5KWH LiFePO4 battery

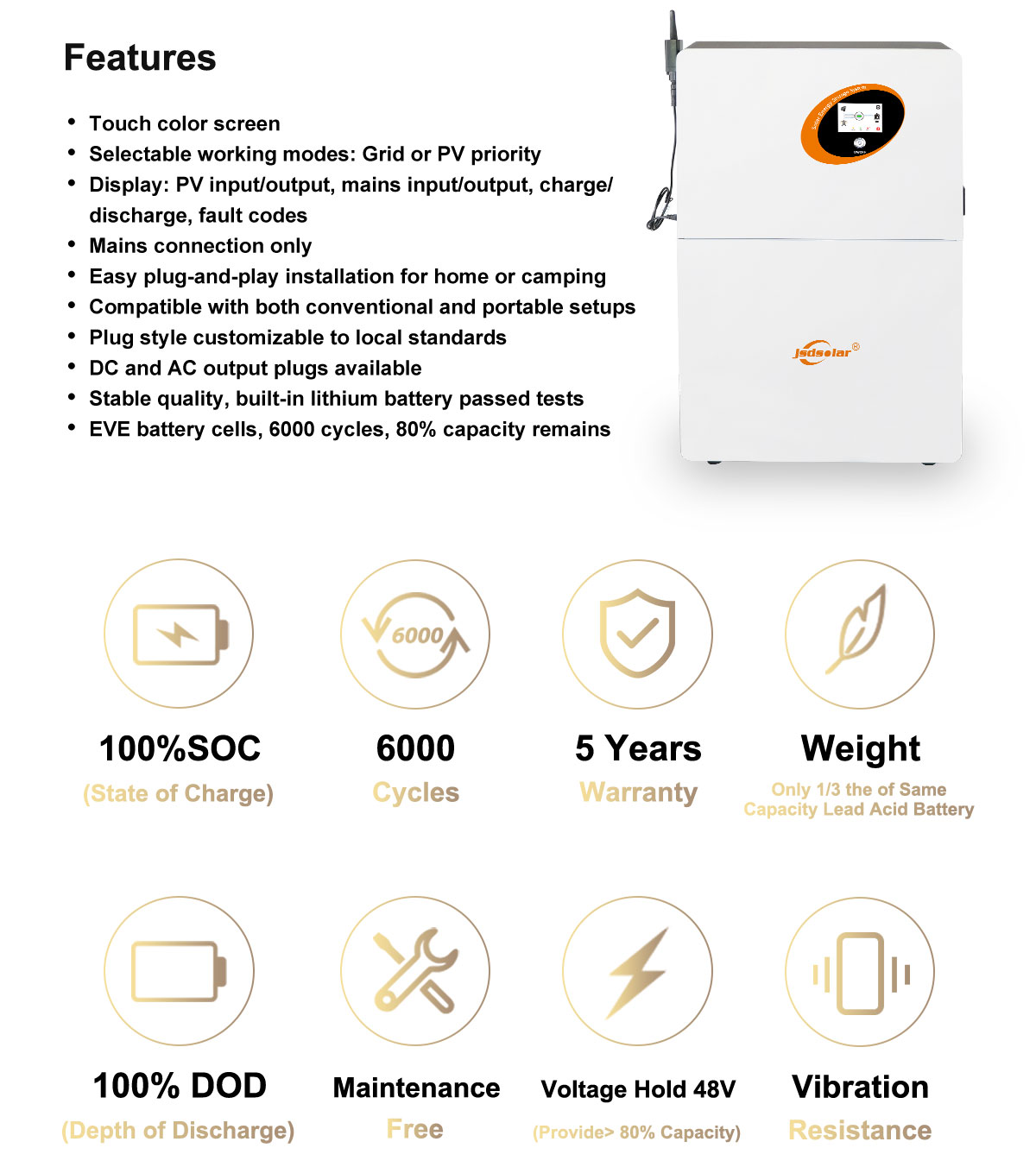

• Space-saving superpose design, colorful display interface, and smart

   WiFiremote monitoring option.
• Provides protection for charging, discharging, circuit short/open, and features

   a high-frequency solar inverter.
• Equipped with an MPPT solar charge controller and long-lasting LiFePO4

   batteries with 6000 cycles.
• Includes double cooling fans for extended lifespan, and holds certifications

   such as CE, UN38.3, and MSDS.

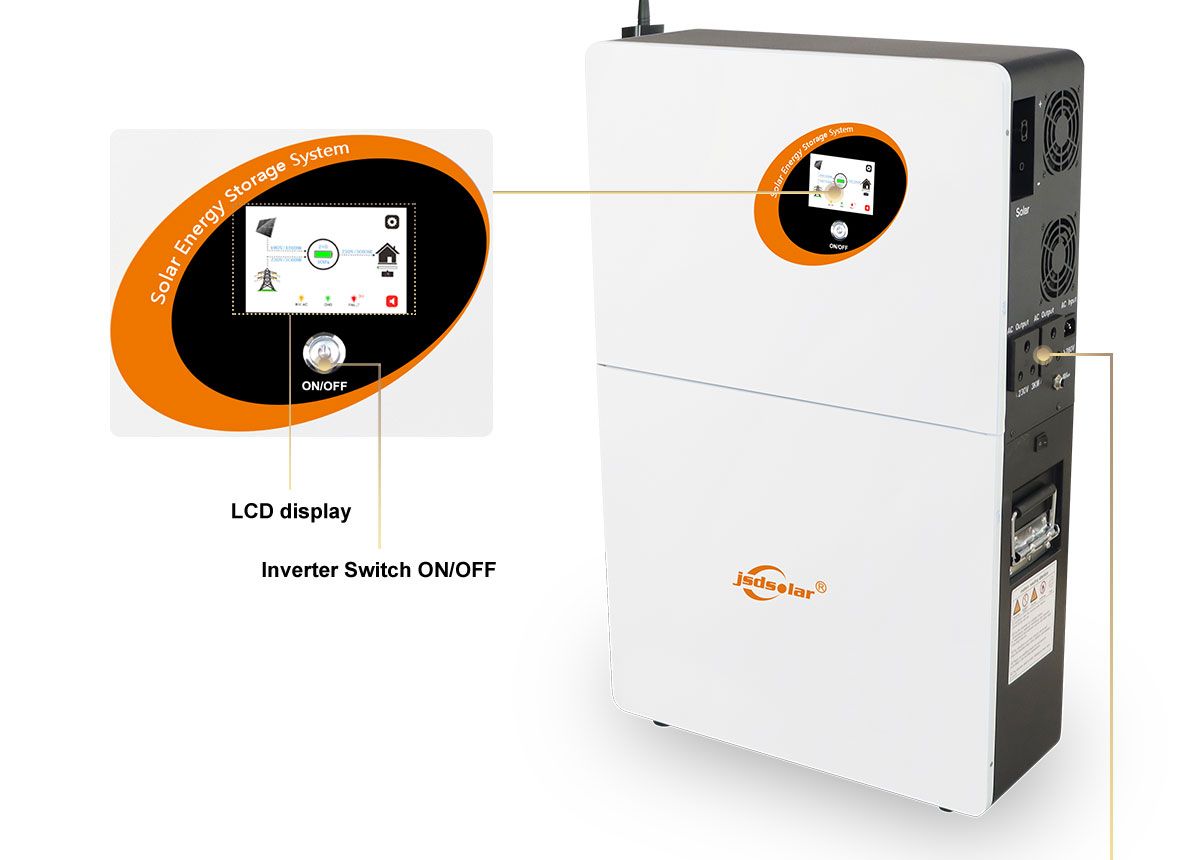

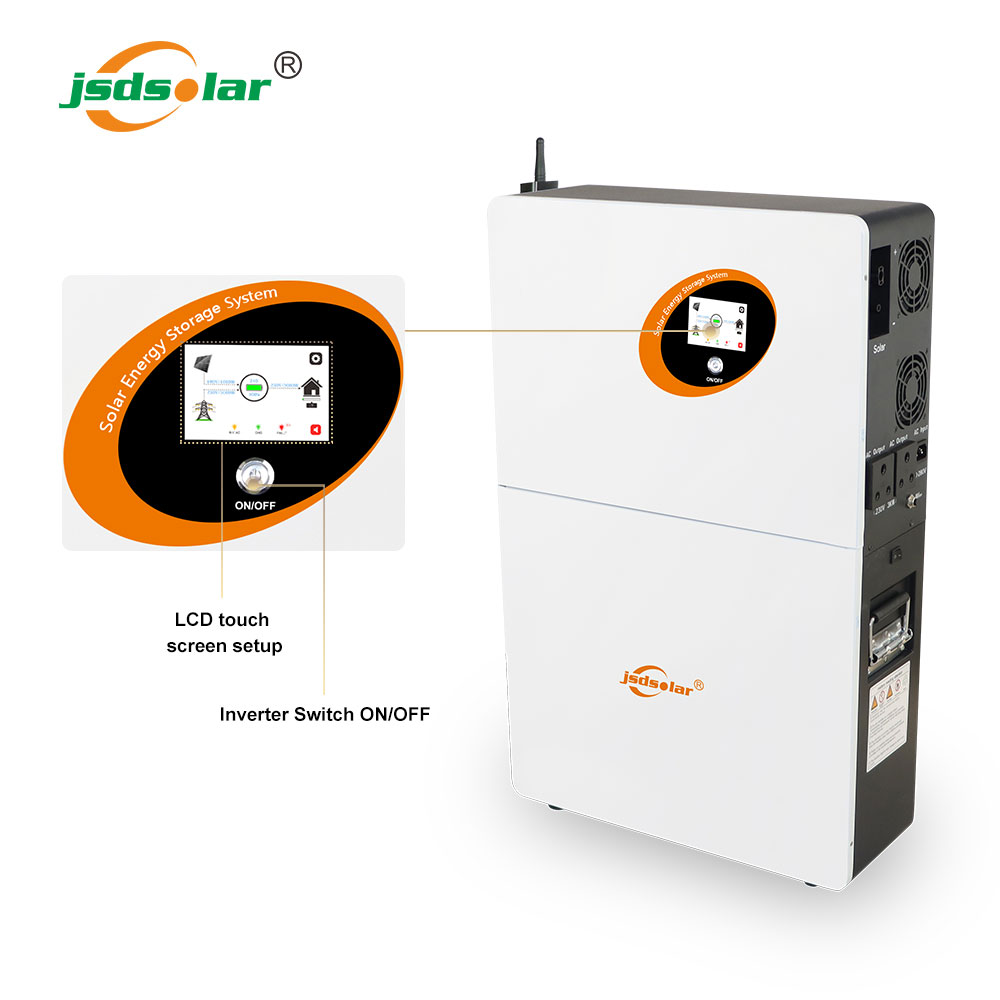

• The system features a vibrant display screen for monitoring system status and

   a touch screen for parameter adjustment, offering an all-in-one solar solution.

SKU JHP5K5
Battery rated voltage 51.2VDC
Battery Capcity 5120Wh
Solar system MAX input power 7000W
AC input voltage 170-280VAC
MAX output power 5000W
Output voltage 230VAC
Output frequency 50/60Hz auto
MPPT PV Input MPPT voltage range 180V-450VDC
Max PV input power 5000W
Charge current range 0-80A
MPPT efficiency ≥96%
PV input voltage 120-500VDC

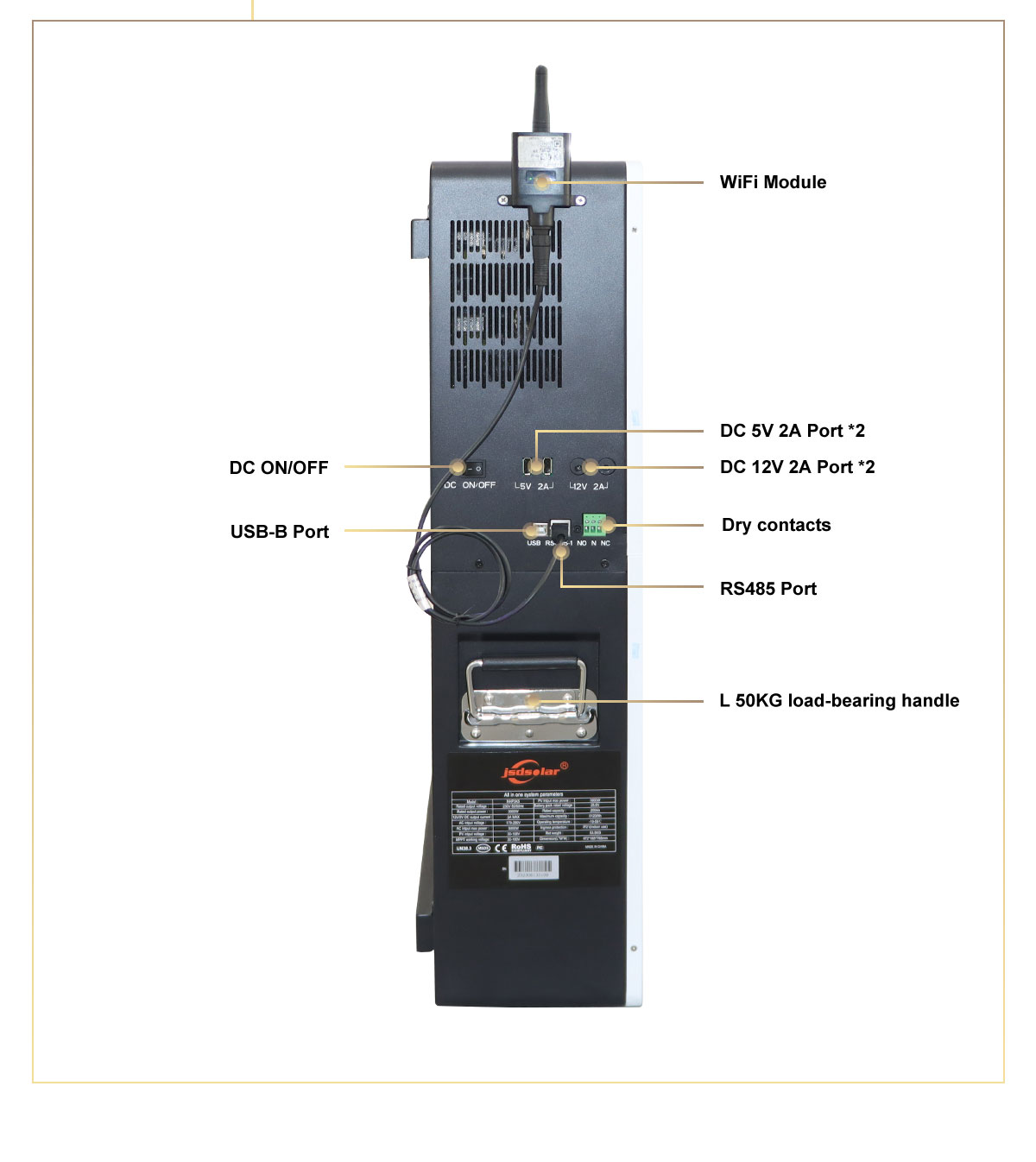

DC Output 5V USB DC Output current limiting 2A
12V DC2.1 DC Output current limiting 2A
Temperature control system Smart fan
Work environment temperature -20~+50 ℃
Storage environment temperature -25~+55 ℃
Operation/storage environment humidity 0-90% no condensate

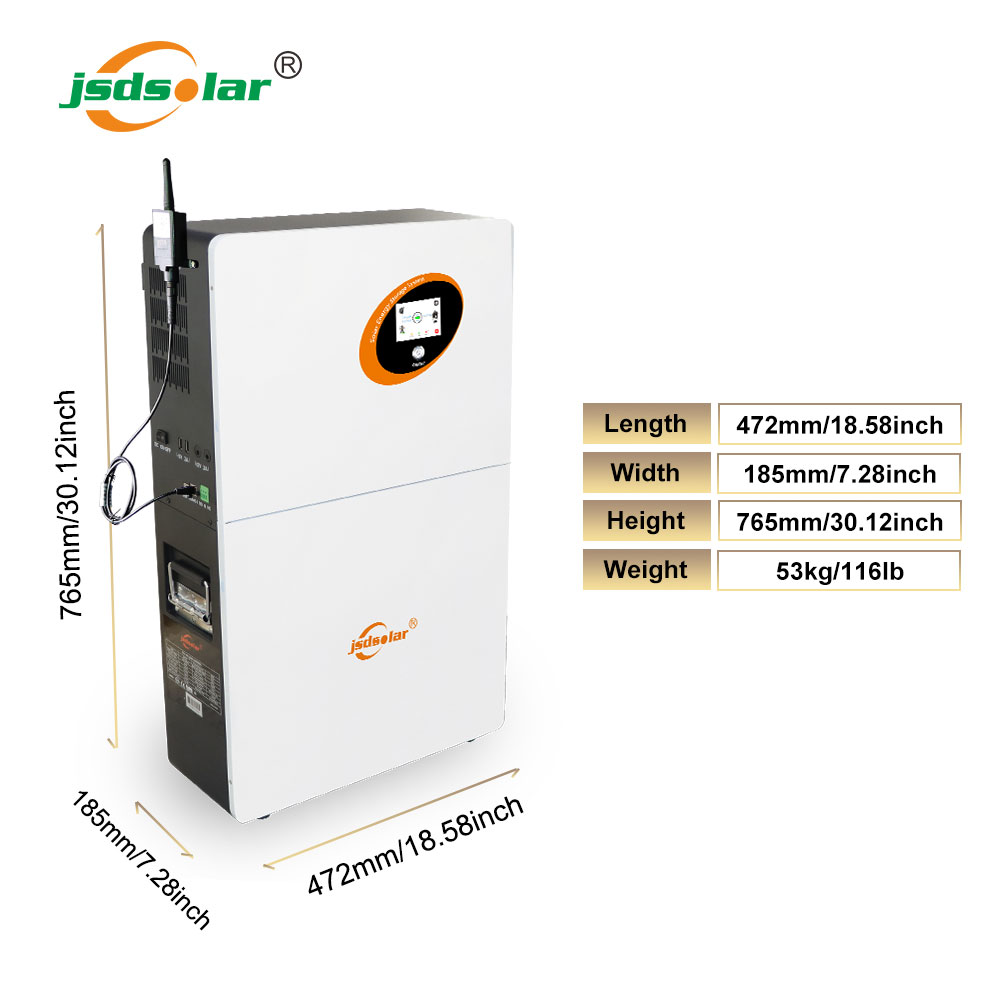

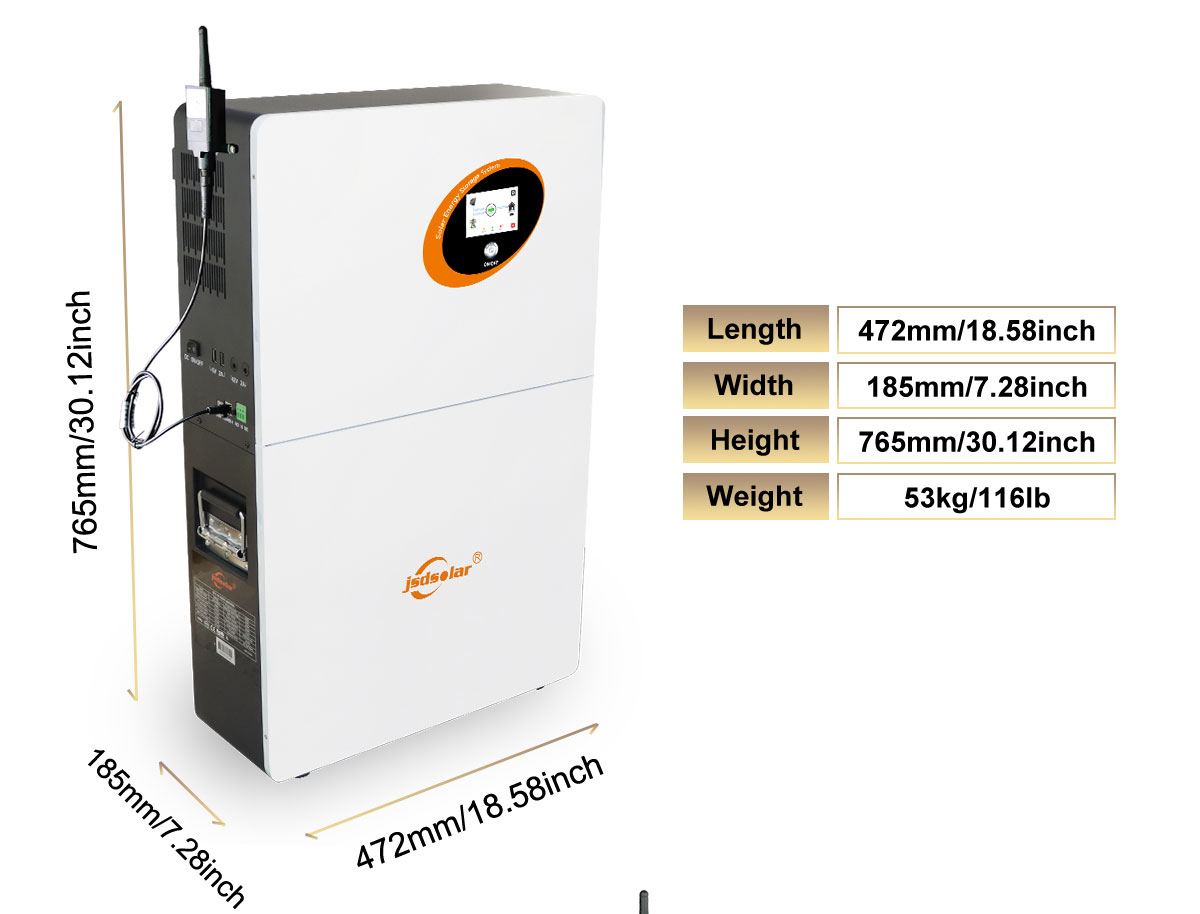

Product Size: L*W*H (mm) 472*185*765
Package Size : L*W*H (mm) Inverter box 552*429.5*265
battery box 552*496.0*265

Request a Quote →
