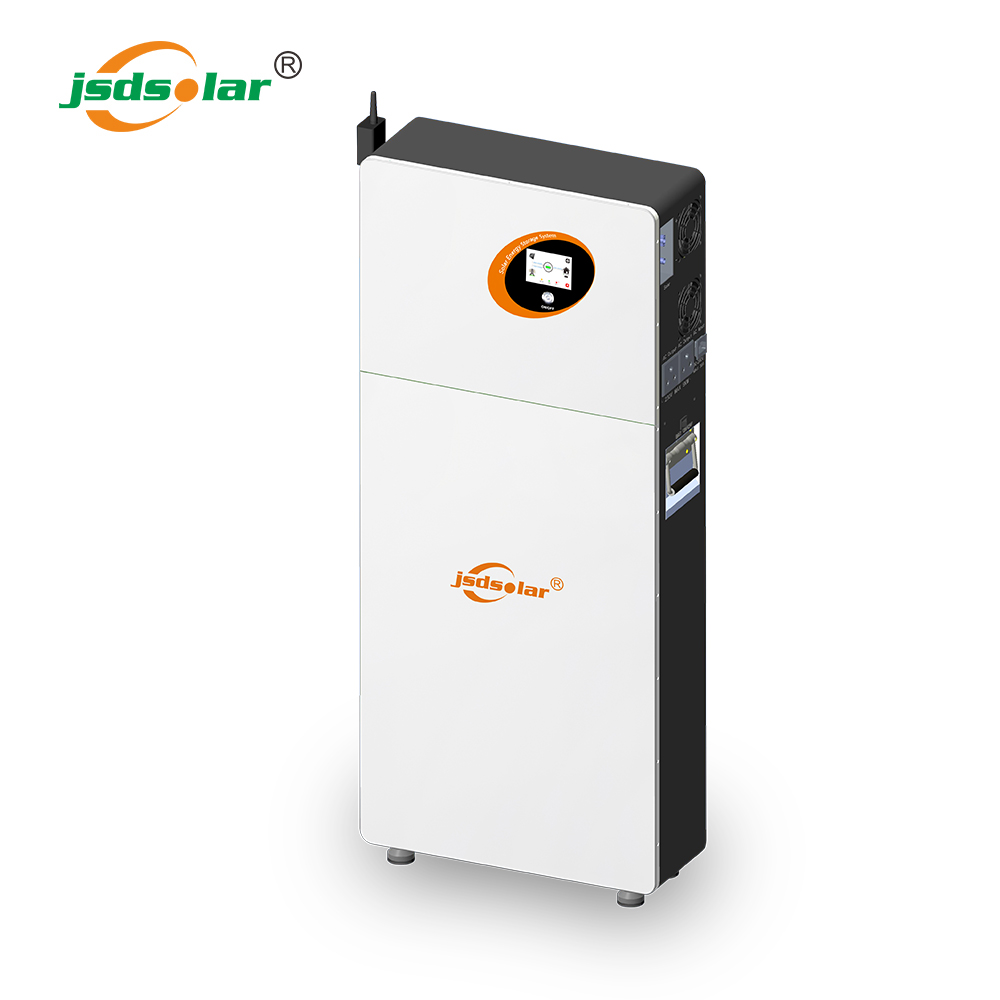

All-In-One solar system 5KW solar Inverter and 10KWH LiFePO4 battery

• Double cooling fans enhance lifespan, certified for CE, UN38.3, and MSDS

   compliance.

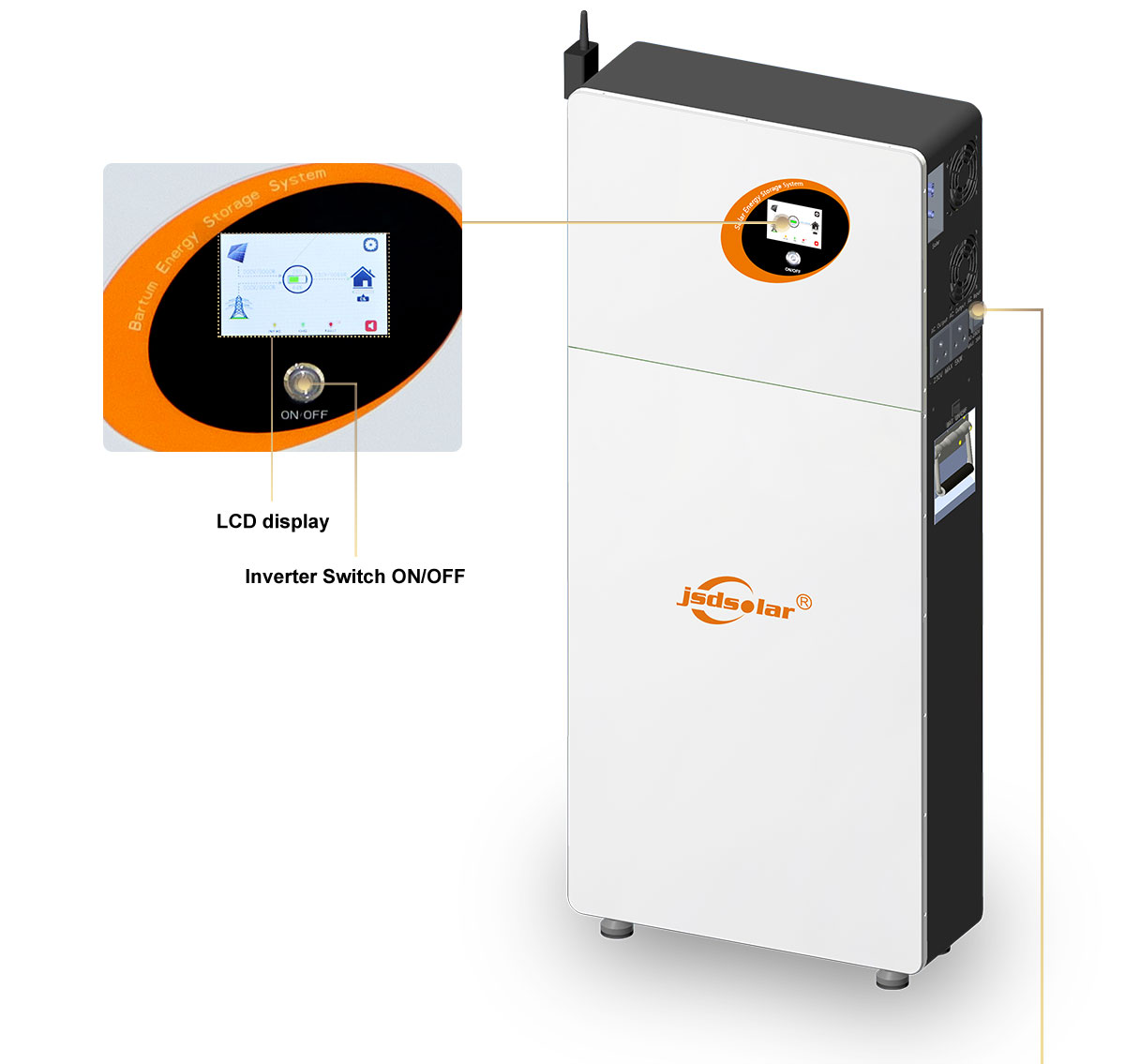

• Vivid display screen showcases system status, touch screen enables easy

   parameter adjustment
• LiFePO4 batteries with a lifespan of up to 6000 cycles for long-lasting

   performance.
• Includes double cooling fans for temperature control and holds certifications

   for quality assurance.
• Vibrant display screen shows system status, while touch screen allows easy

   parameter adjustment.
• All-in-one solar system with reliable components for seamless integration and

   energy management.

SKU JHP5K10
Battery rated voltage 51.2VDC
Battery Capcity 10240Wh
Solar system MAX input power 7000W

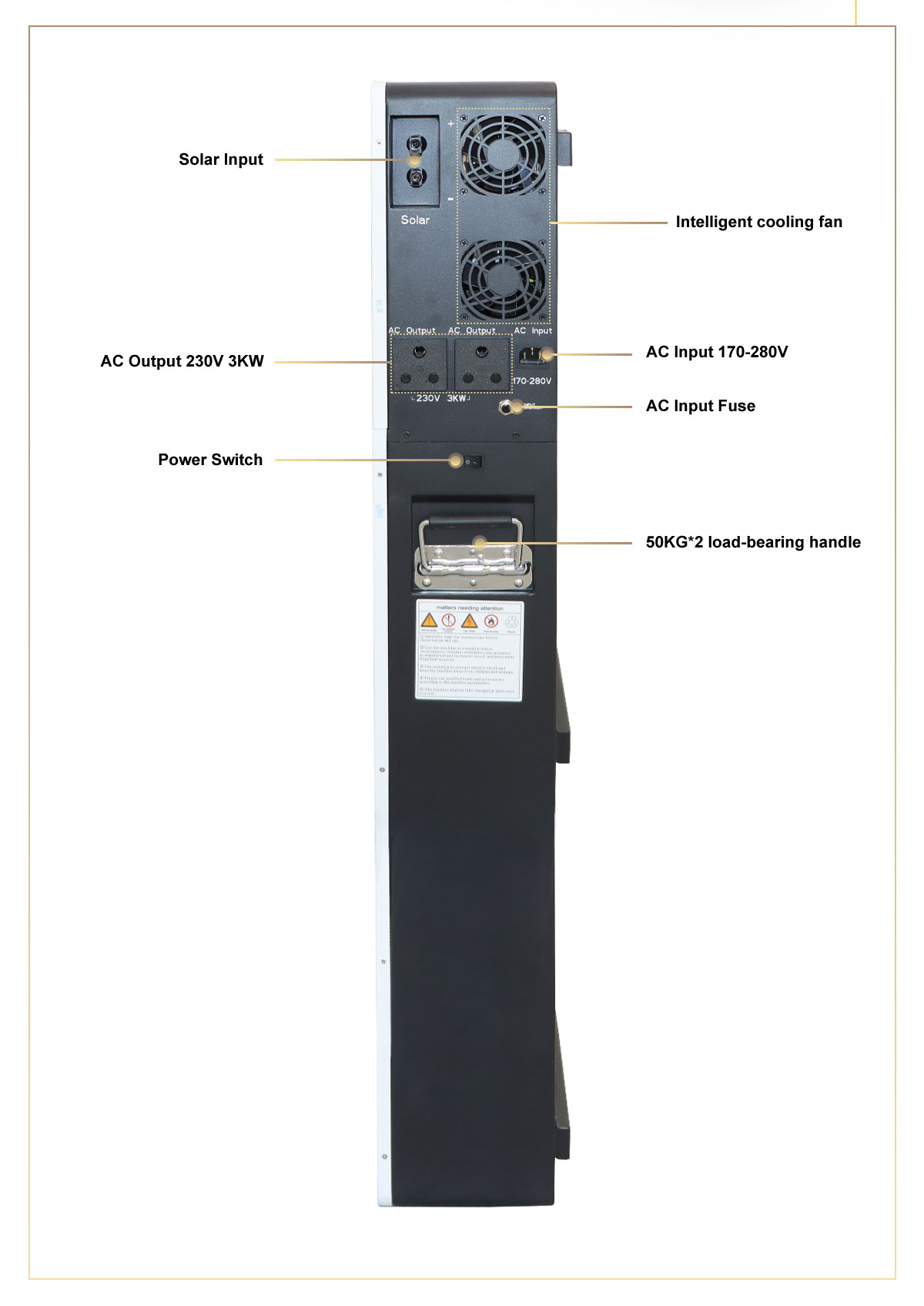

AC input voltage 170-280VAC
MAX output power 5000W
Output voltage 230VAC
Output frequency 50/60Hz auto
MPPT PV Input MPPT voltage range 180-450VAC
Max PV input power 5000W
Charge current range 0-80A
MPPT efficiency ≥96%
PV input voltage 120-500V

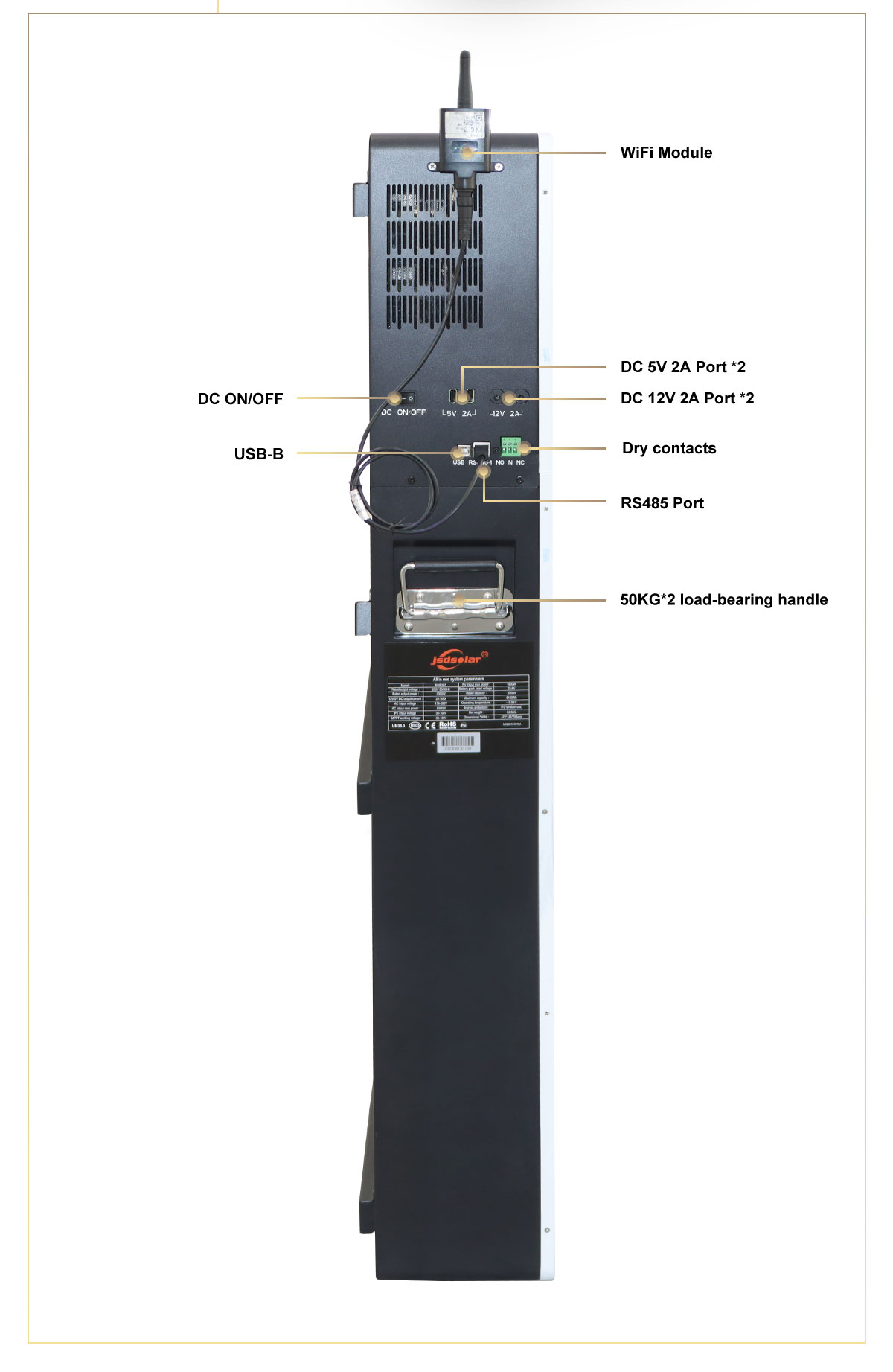

DC Output 5V USB DC Output current limiting 2A
12V DC2.1 DC Output current limiting 2A
Temperature control system Smart fan
Work environment temperature -20~+50 ℃
Storage environment temperature -25~+55 ℃
Operation/storage environment humidity 0-90% no condensate

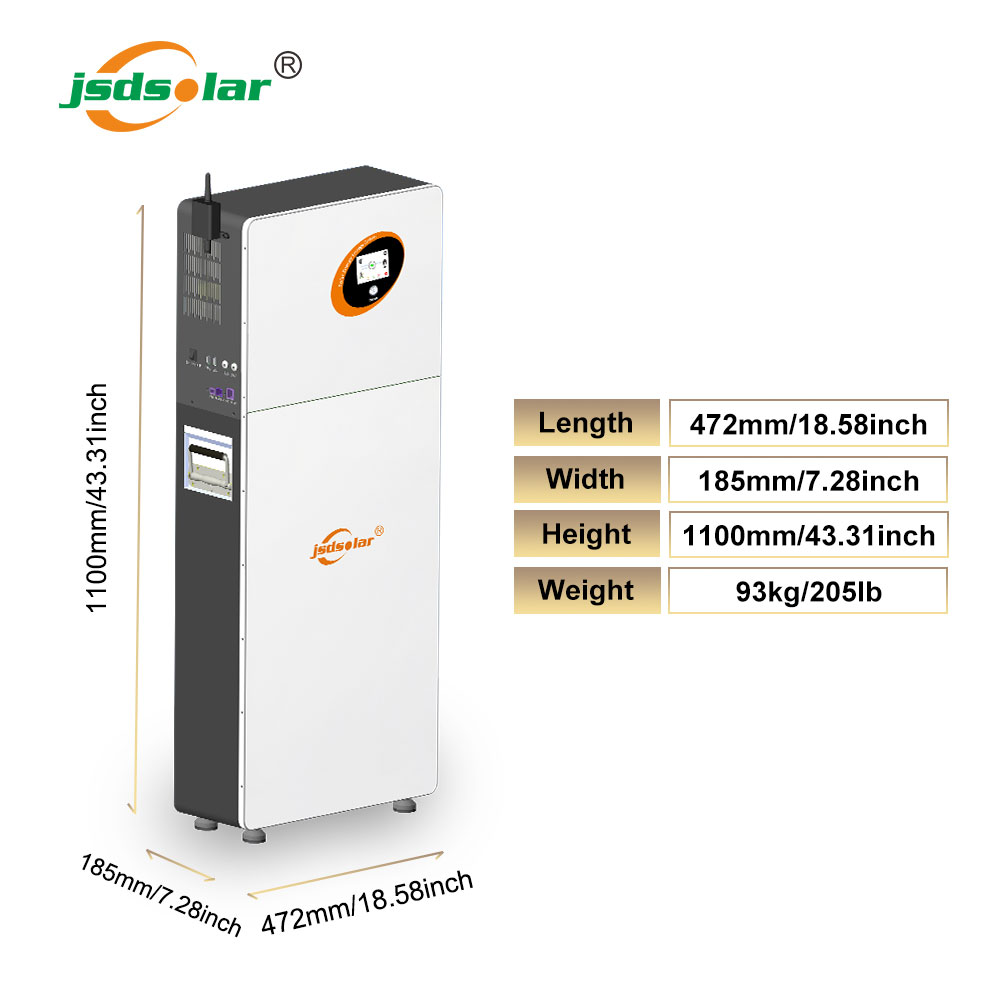

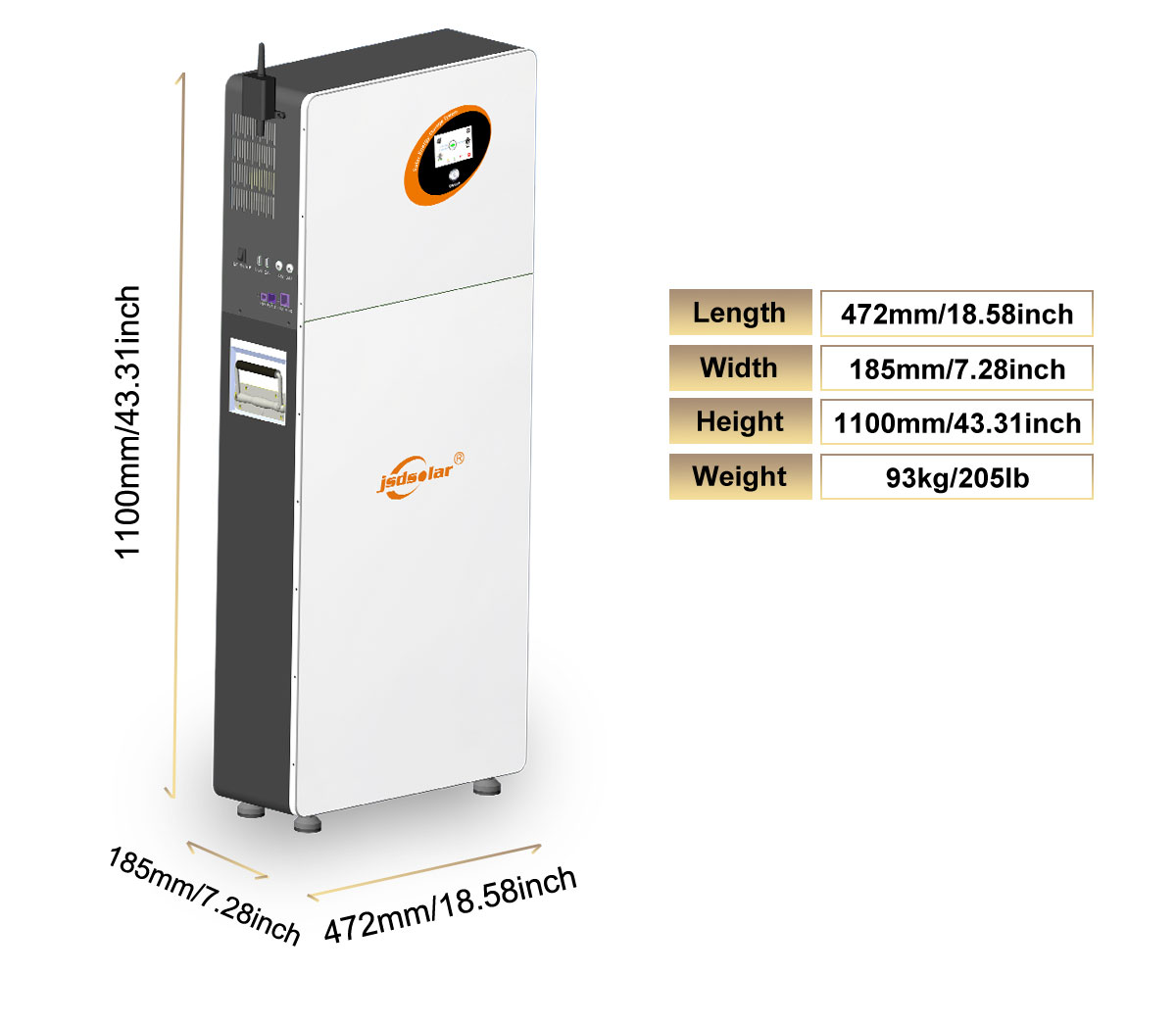

Product Size: L*W*H (mm) 472*185*1100
Package Size : L*W*H (mm) Inverter box 552*429.5*265
battery box 552*796.0*265
