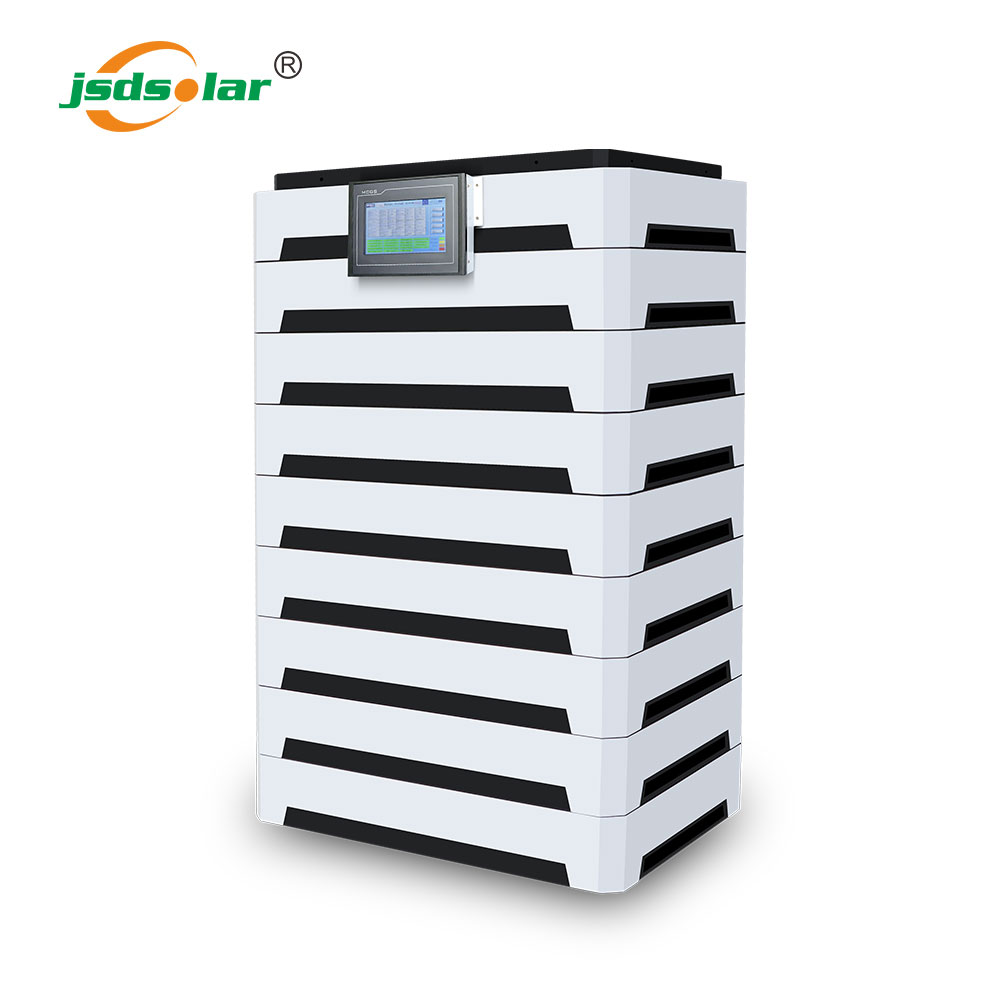

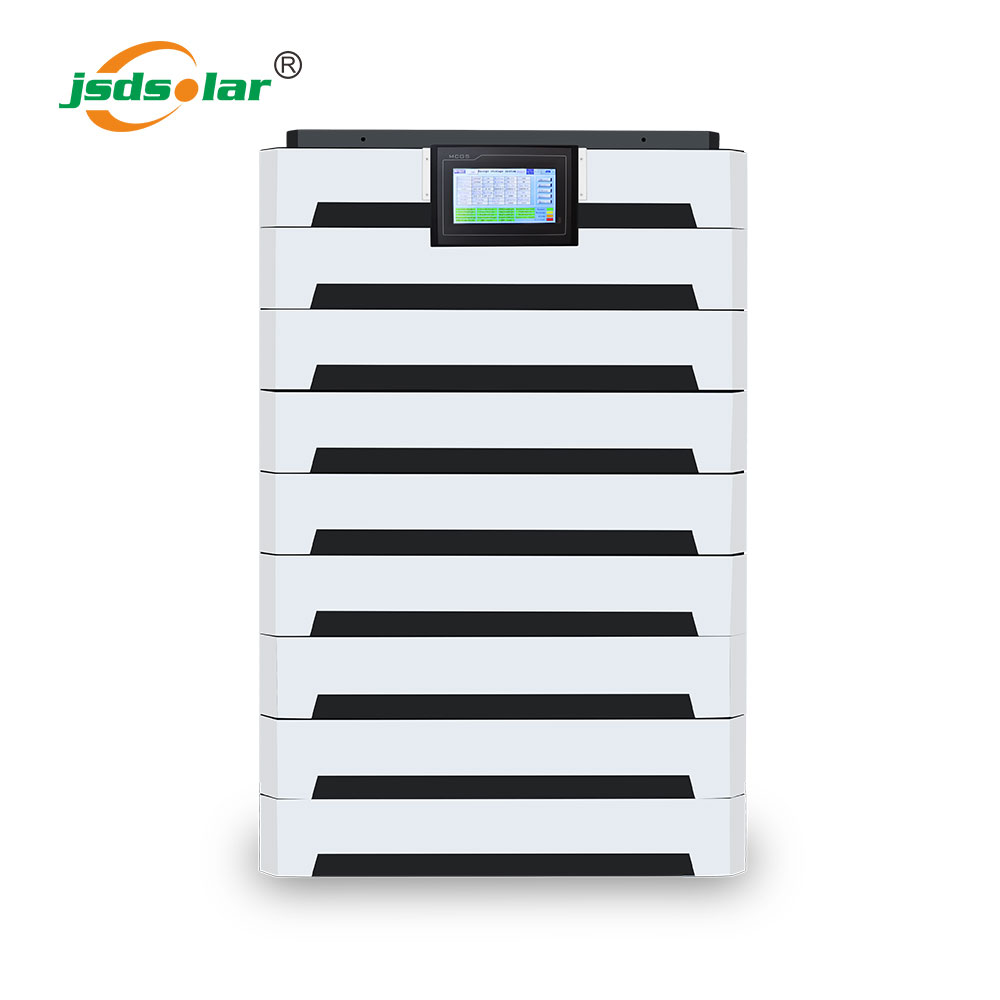

LFP 60KWH High Voltage LiFePO4 Battery Pack for Commercial Solar System

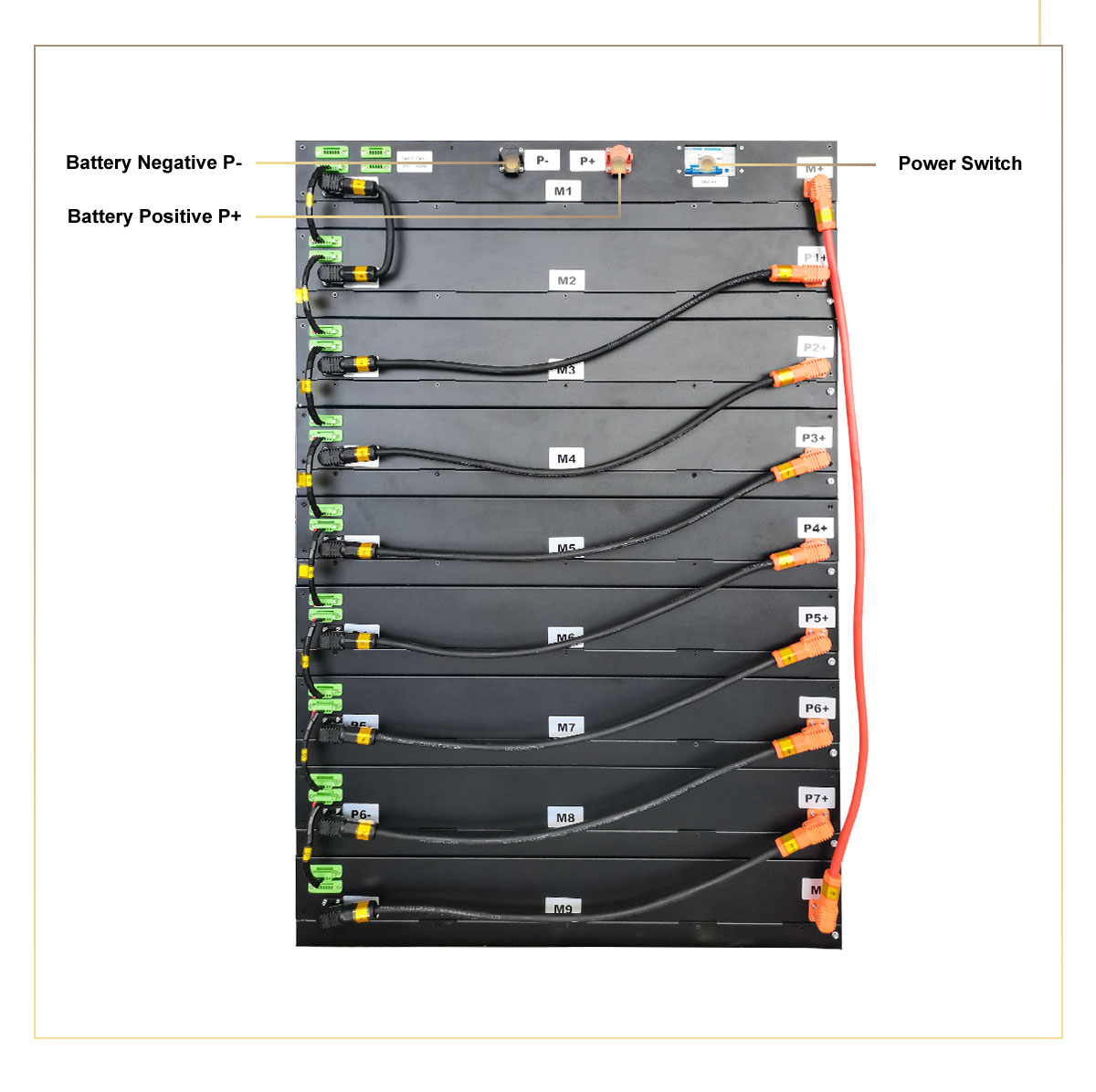

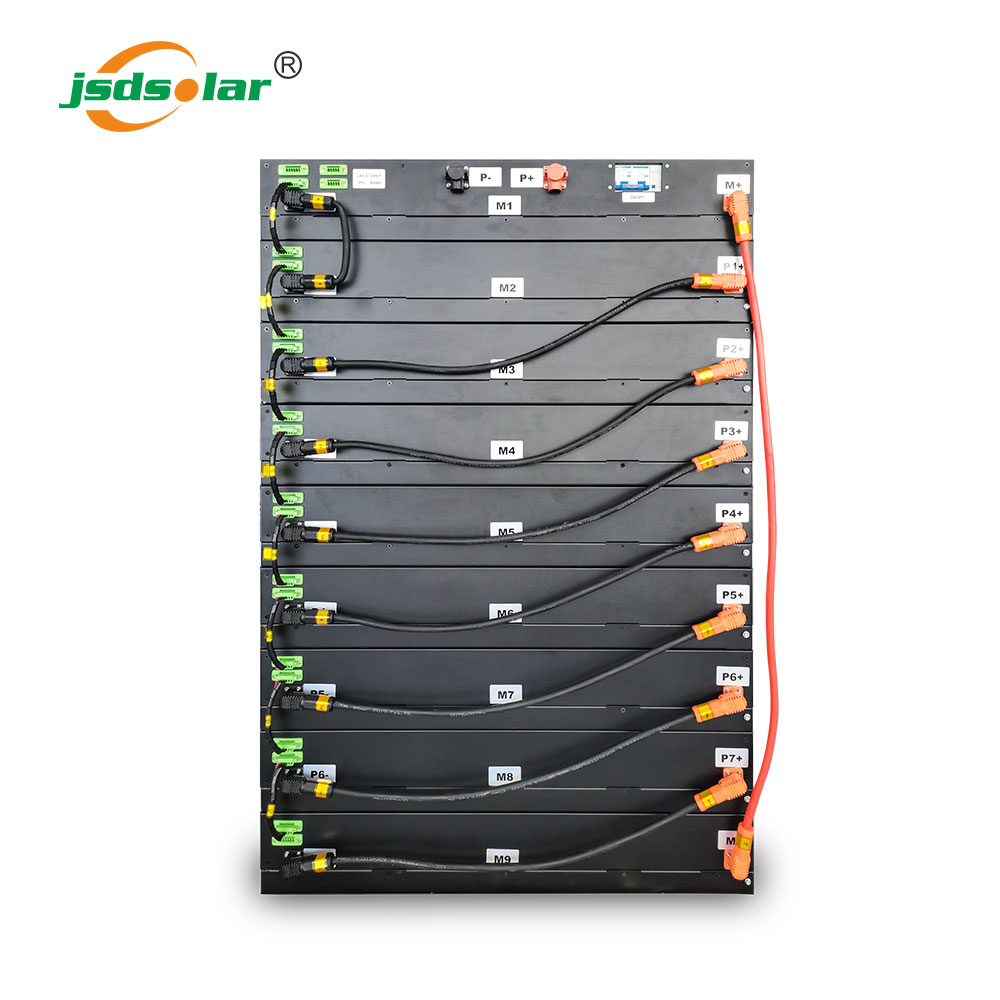

• LFP battery pack for communication power supply: LiFePO4 Battery cells in

   series and parallel connection.
• High specific energy, long life cycle, wide temperature range; ideal for

   communication industry.
• BMS functions include protection against over/under voltage, current,

   temperature, short-circuit, and cell equalization.
• Configured with high voltage hybrid inverter for commercial solar system.
• Support fexible expanding battery power capacity through paralleling units.

SKU JHB60-400
Battery Type LiFePO4
Energy 61.44KWH
Capacity 150AH
Rated Voltage 409V
Working Voltage Range 320~ 467V
Max Charge Current 150A
Max Discharge Current 150A
Standard Charge Current 75A
Standard Discharge Current 75A
DOD 100%
Max Parallel Quantity 1
Designed Life-span 6000 cycles
Operating Temperature  Charge : O~60℃ Discharge: -10~60c
Operation Humidity 5~95%
Nominal Operation Altitude <300Om
lP Rating IP22
Installation Method Stacking
Communication Rs485
Certification CE
Net Weight ≈600kg

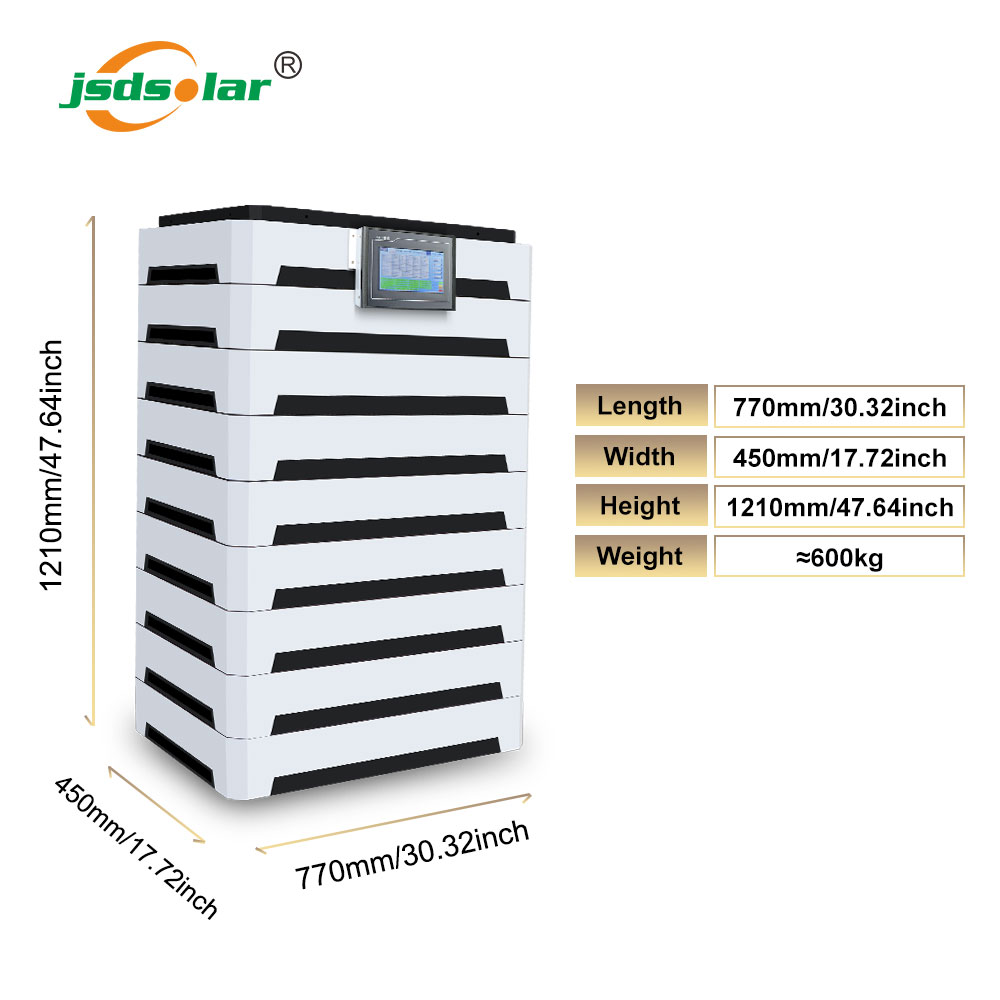

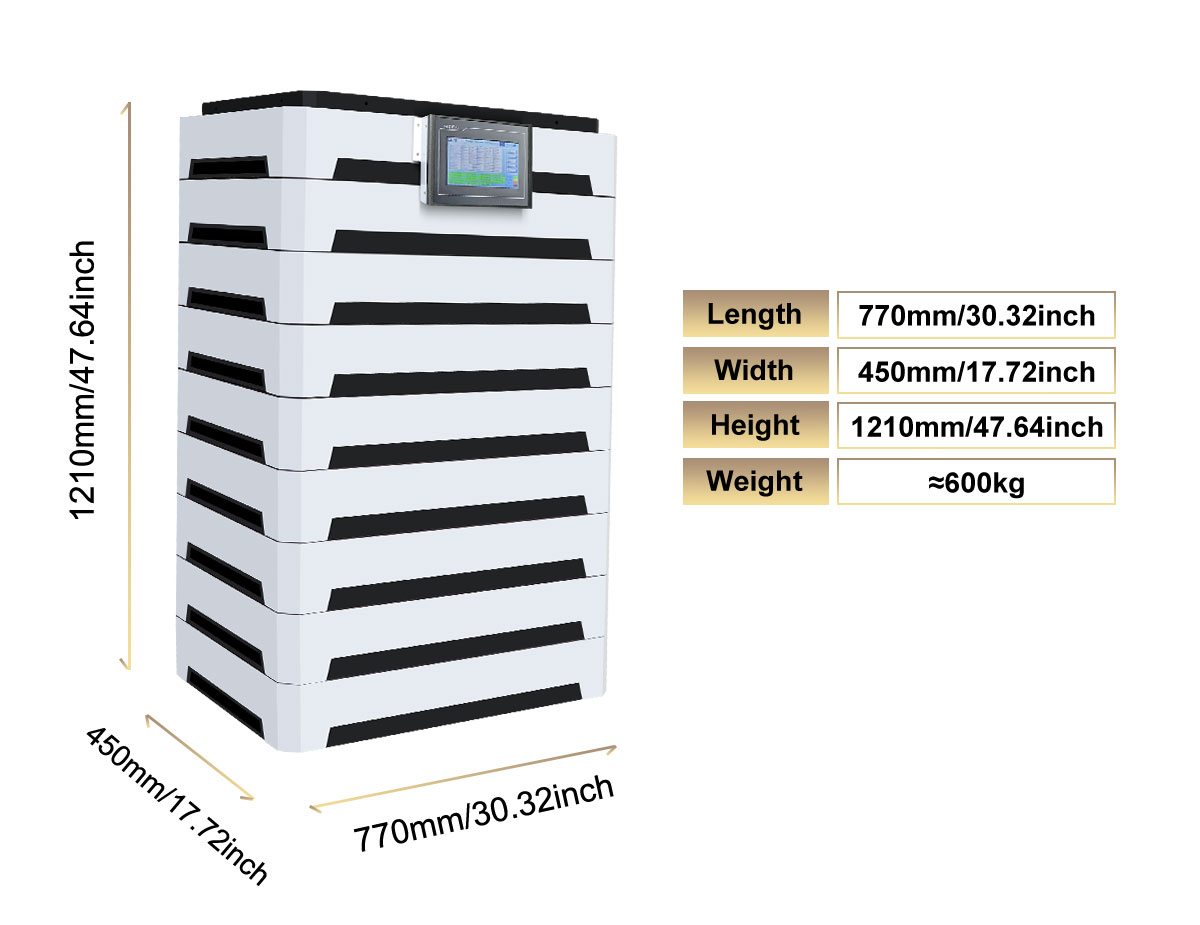

Dimension(L*W*H) 770*450*1210 mm
