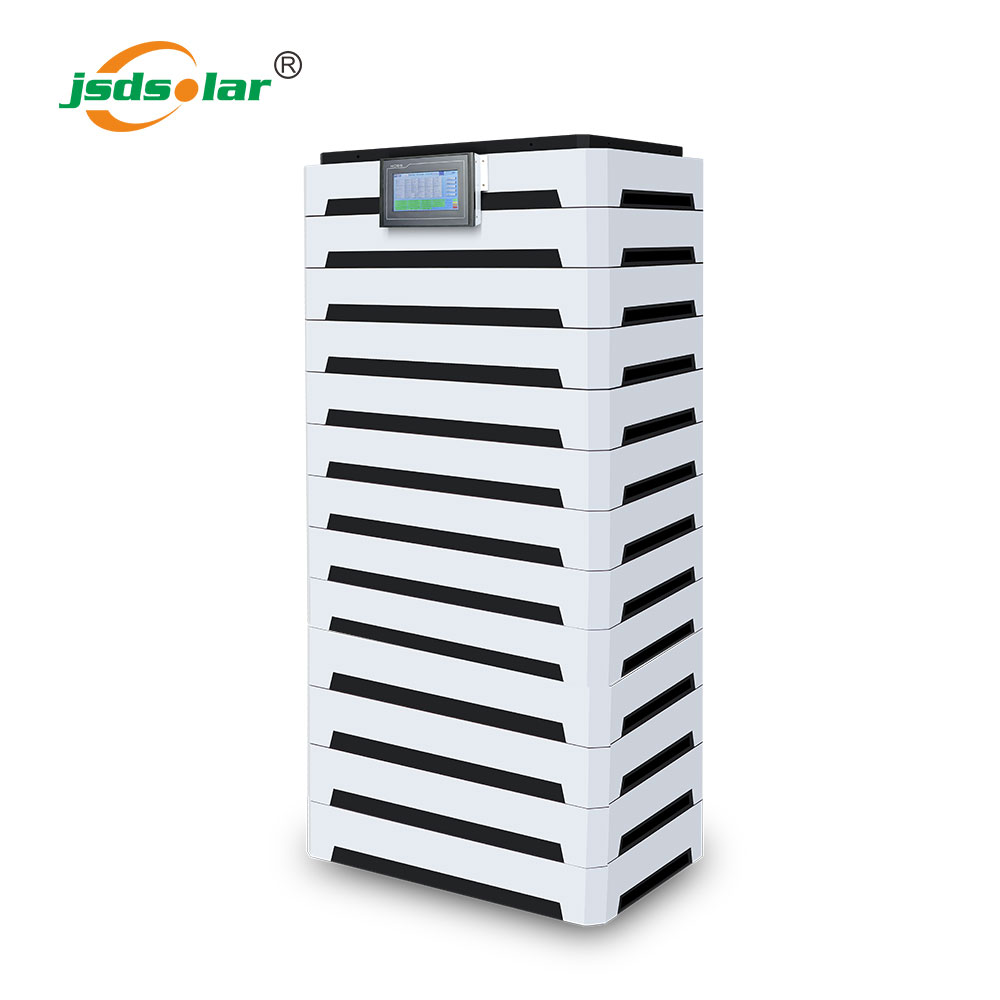

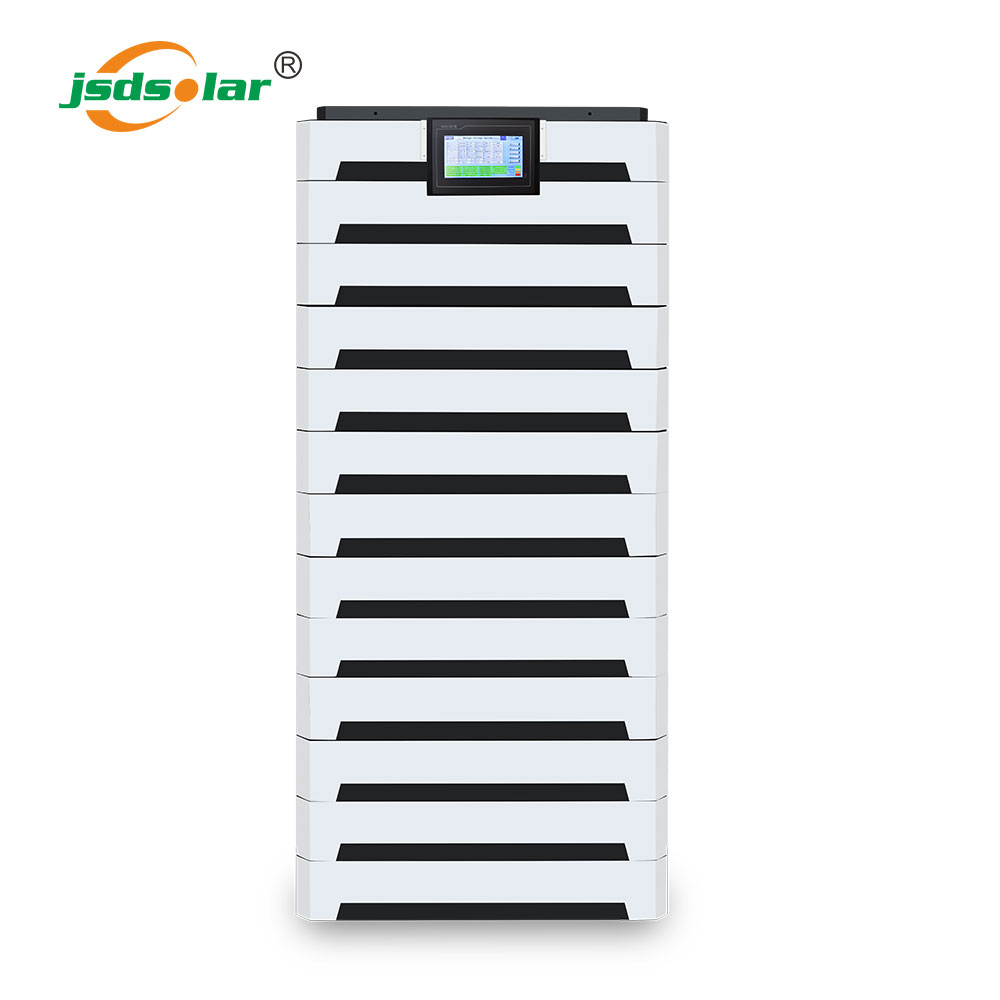

LFP 90KWH High Voltage LiFePO4 Battery Pack for Commercial Solar System

• Advanced design and production technology ensure high specific energy, long

   life cycle, and wide temperature range usability.
• Assist ESS to enhancespower generation, overcomes renewable energy

   limitations, and improves transmission reliability.

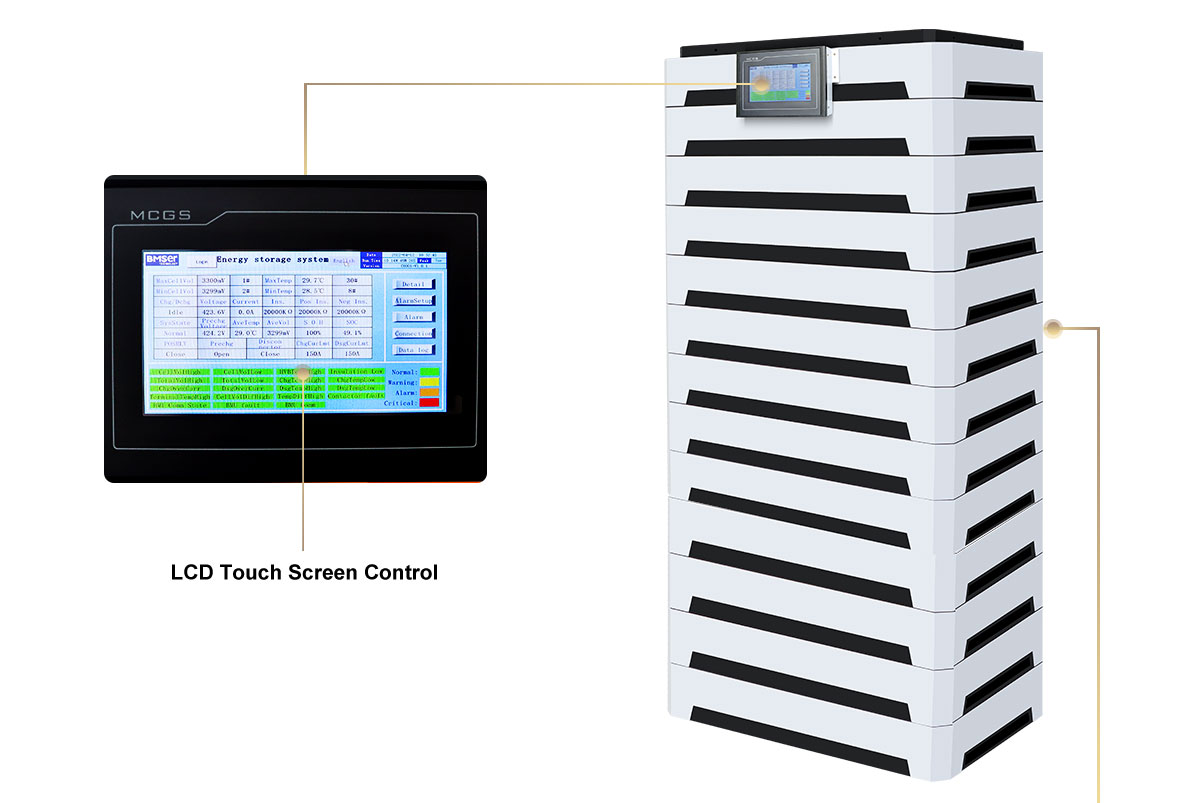

• LCD display shows the parameter information and status for each battery cell.
• Touchscreen design make the operation more convenient and efficient.
• Support fexible expanding battery power capacity through paralleling units.

REQUEST A QUOTE
SKU JHB90-600
Battery Type LiFePO4
Energy 92.16KWH
Capacity 150AH
Rated Voltage 614V
Working Voltage Range 480～ 700V
Max Charge Current 200A
Max Discharge Current 200A
Standard Charge Current 100A
Standard Discharge Current 100A
DOD 100%
Max Parallel Quantity 1
Designed Life-span 6000 cycles
Operating Temperature  Charge : 0～60℃ Discharge: -10～60℃
Operation Humidity 5～95%
Nominal Operation Altitude <3000m
lP Rating IP22
Installation Method Stacking
Communication Rs485
Certification CE
Net Weight ≈900kg

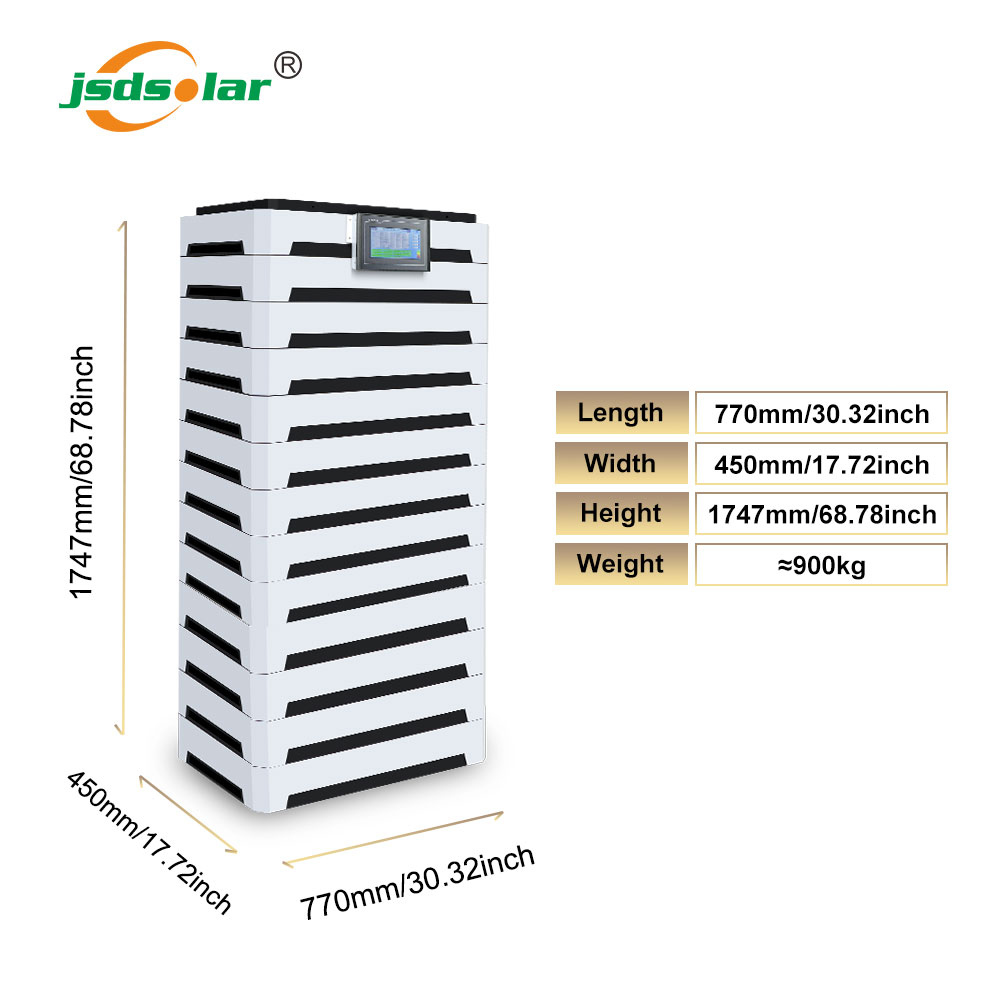

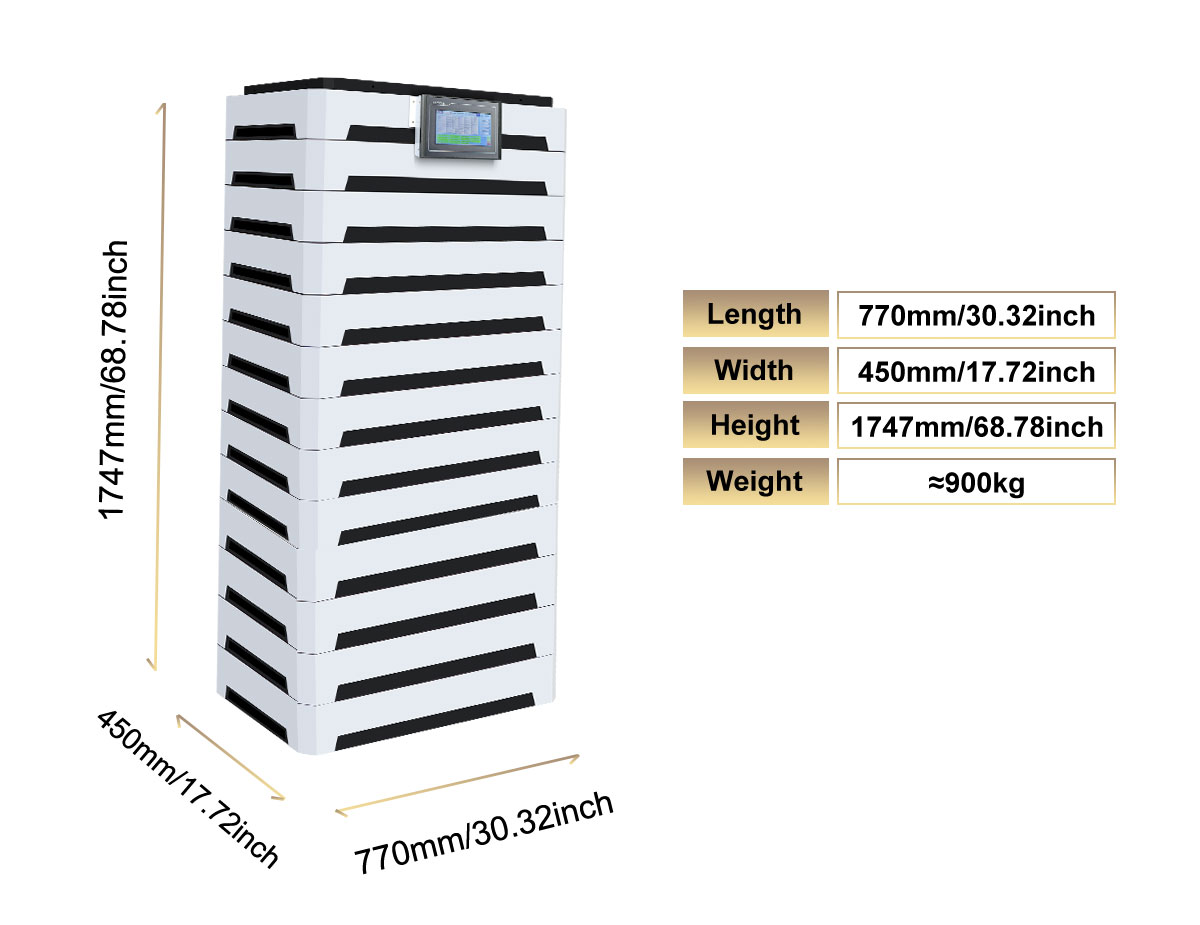

Dimension(L*W*H) 770*450*1747 mm
