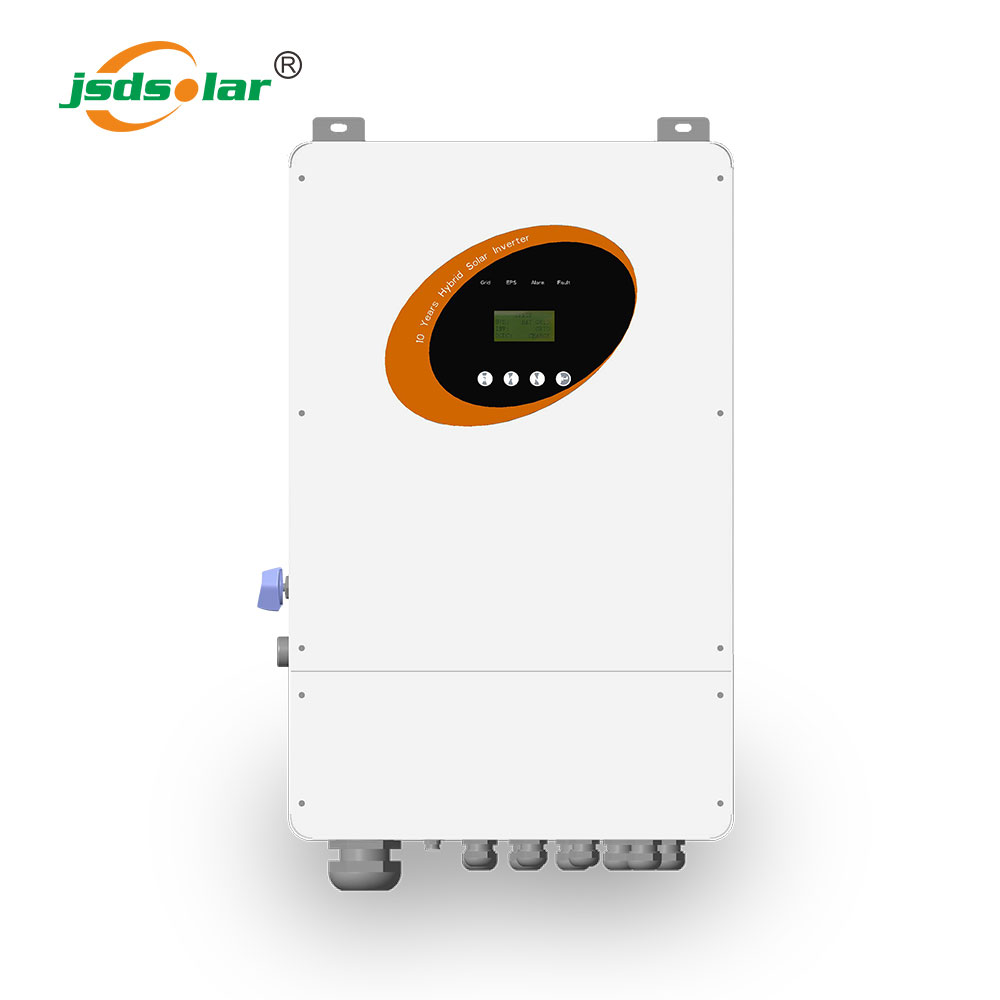

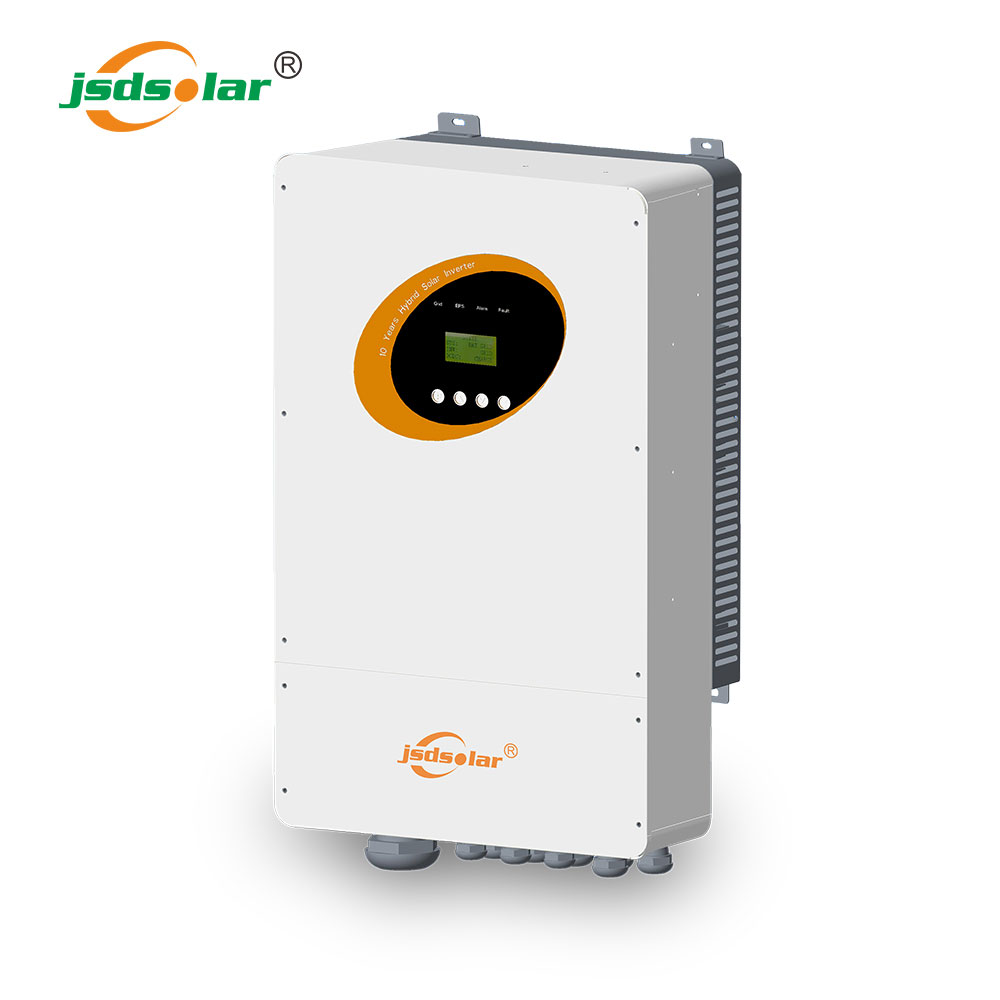

IP65-rated 8KW hybrid inverter with flexible, reliable operation and intelligent energy management

• Flexible, reliable, and advanced battery with reverse connect protection,

   featuring a fashionable, lightweight design and smart operation.
• Efficient natural cooling ensures low noise levels, while the IP65-rated,

   wall-mounted design saves space.
• The touch screen LCD enhances user interaction, and the intelligent energy

   management system optimizes home energy usage.
• Power dispatching and demand side response management enable effective

   utilization of energy resources.
• Distributed virtual power station management empowers efficient energy

   distribution and utilization.

REQUEST A QUOTE
Technical specification J8KHP
lnput (PV)
Max.power(kW) 12
Max.DC voltage (V) 500

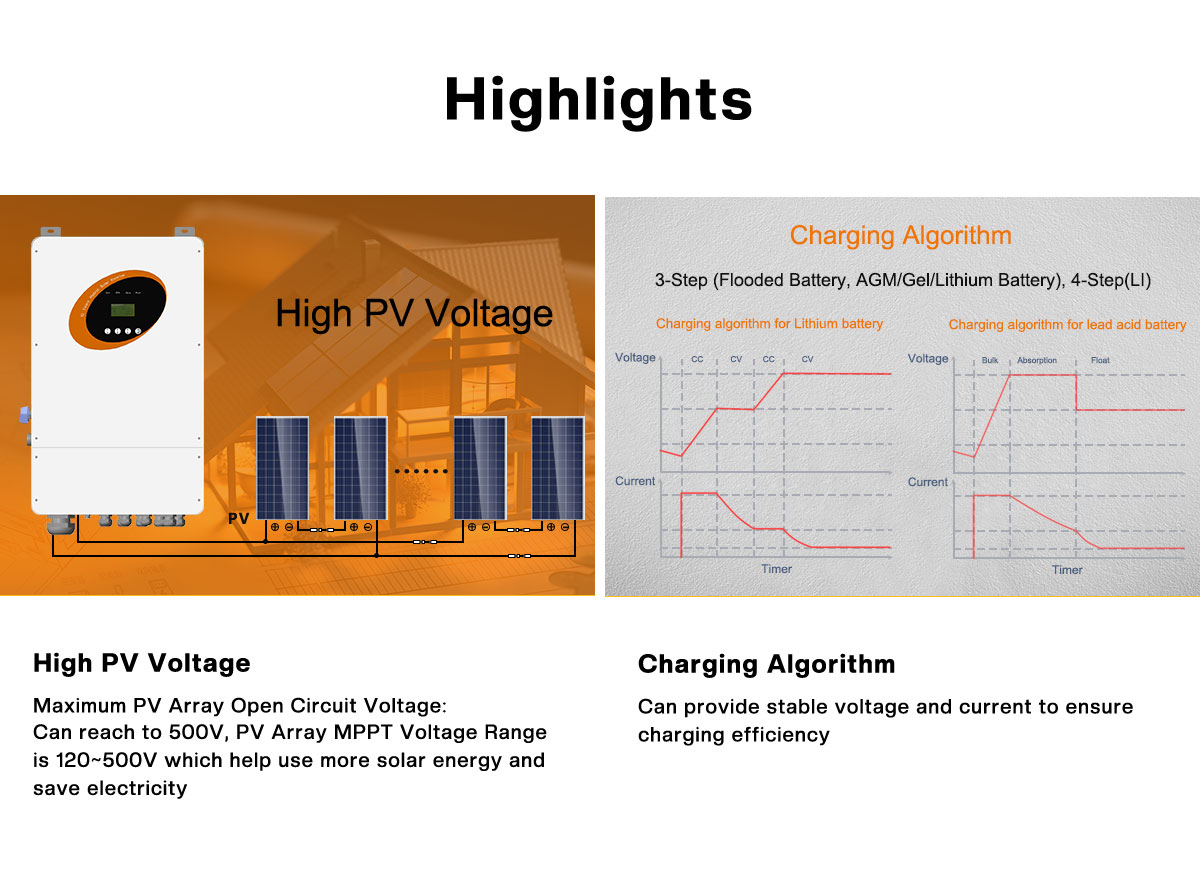

MPPT voltage range(V) 120~500
Max.input current of single MPPT(A) 12
MAX.short circuit current(A) 15
AC output
Rated output power(kVA) 8
Max.output power(kVA) 8.8
Max.output current(A) 38.3
Ac output voltage(V) 220,230,240
Frequency(Hz) 50/60 (45~55,55~65)
PF 0.8lagging-0.8leading
THDi <2%
Battery
Nominal voltage (V) 48
Battery voltage range(V) 40~60
Max.charge/discharge current(A) 190/190
Battery type lithium /Lead-acid
Charging strategy for Li-lon battery Self-adaption to BMS
EPS output
Rated power(kVA) 8
Rated output voltage(V) 220, 230 ,240
Rated frequency(Hz) 50/60
THDu <2%
Protection
Grounding detection YES
Arc fault protection optional
lsland protection YES
Battery reverse polarity YES
lnsulation resistor detection YES
Residual current monitoring unit YES
Output over current protection YES
Back-up output short protection YES
Terminal temperature detection YES
Output over voltage/under voltage protection YES
General data
Europe efficiency(PV) ≥97.8%
MAX. battery to load efficiency ≥97.2%
lngress protection IP65
Noise emission(dB) <38
Operation temperature -25℃ ~60℃
Cooling FAN Cooling
Relative humidity 0 ~95%(non-condensing)
Altitude 2,000m (>2,000 Derating)

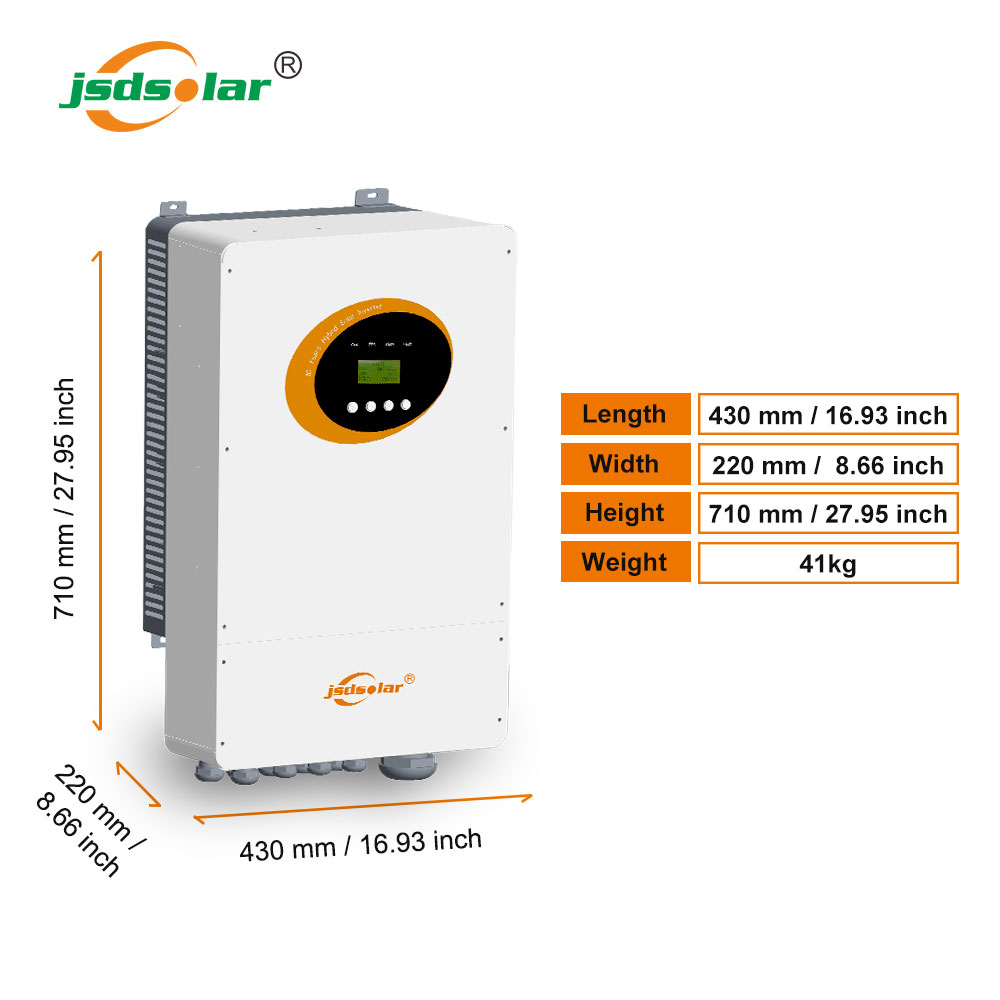

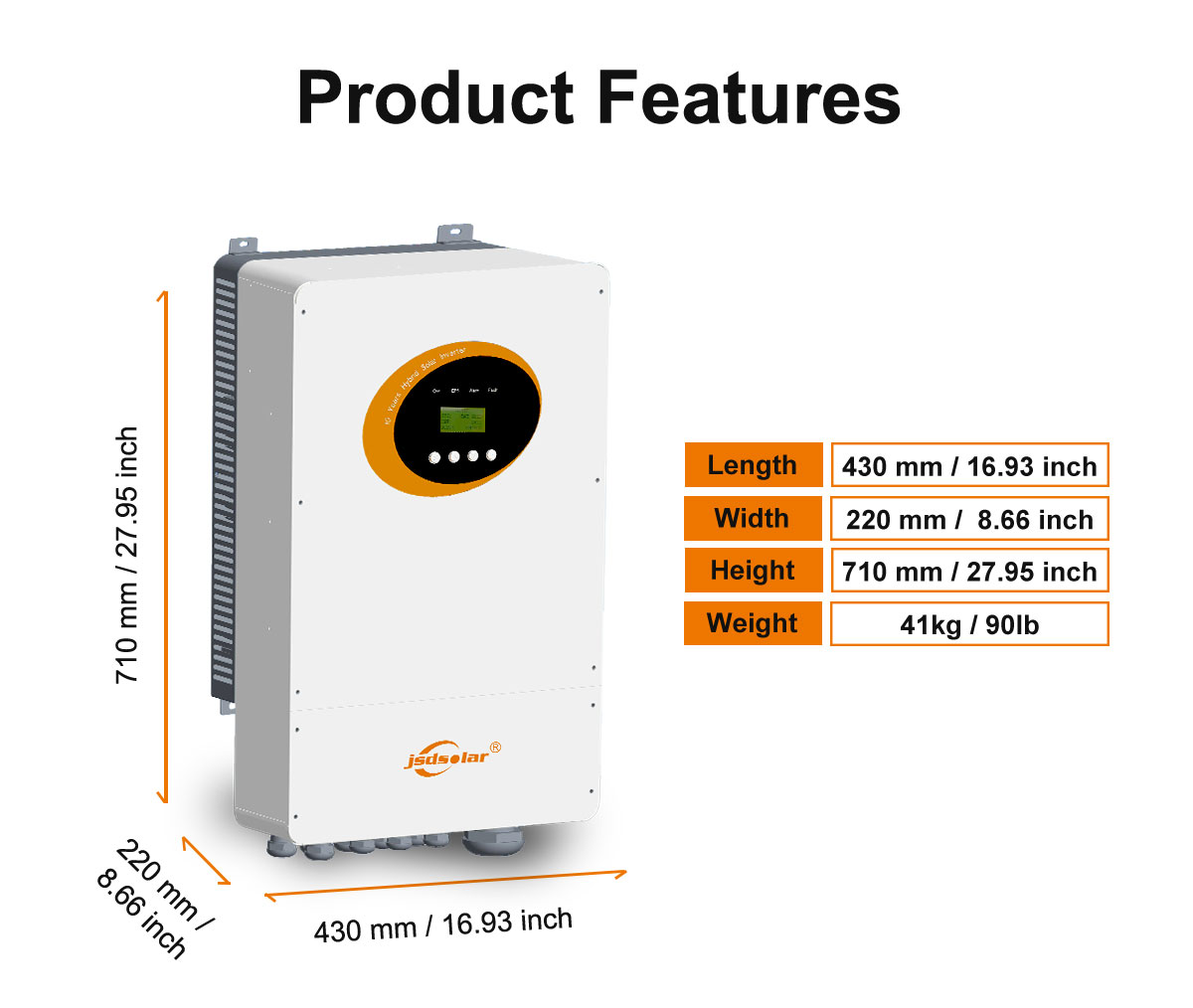

Dimensions W *D *H (mm) 430*220*710
Weight(kg) 41
Display LCD，Touch panel (optinal)
Communication with BMS/meter/EMS RS485，CAN
Communication interface RS485, WLAN,4G (optional)
Self-consumption at night <2.5 w (with battery enabling <5 w)
Certificates South Africa NRS,IEC 62109-1/-2,IEC 61000-6-1,IEC 61000-6-3
