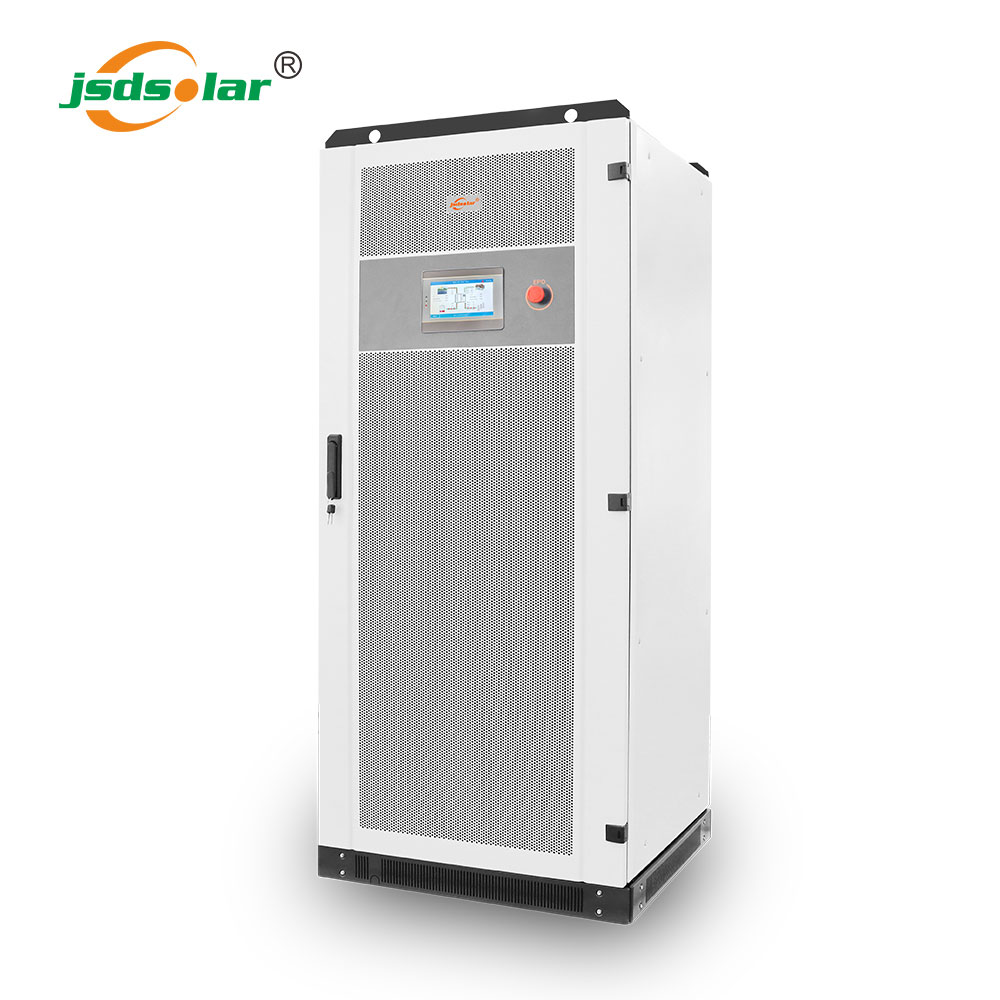

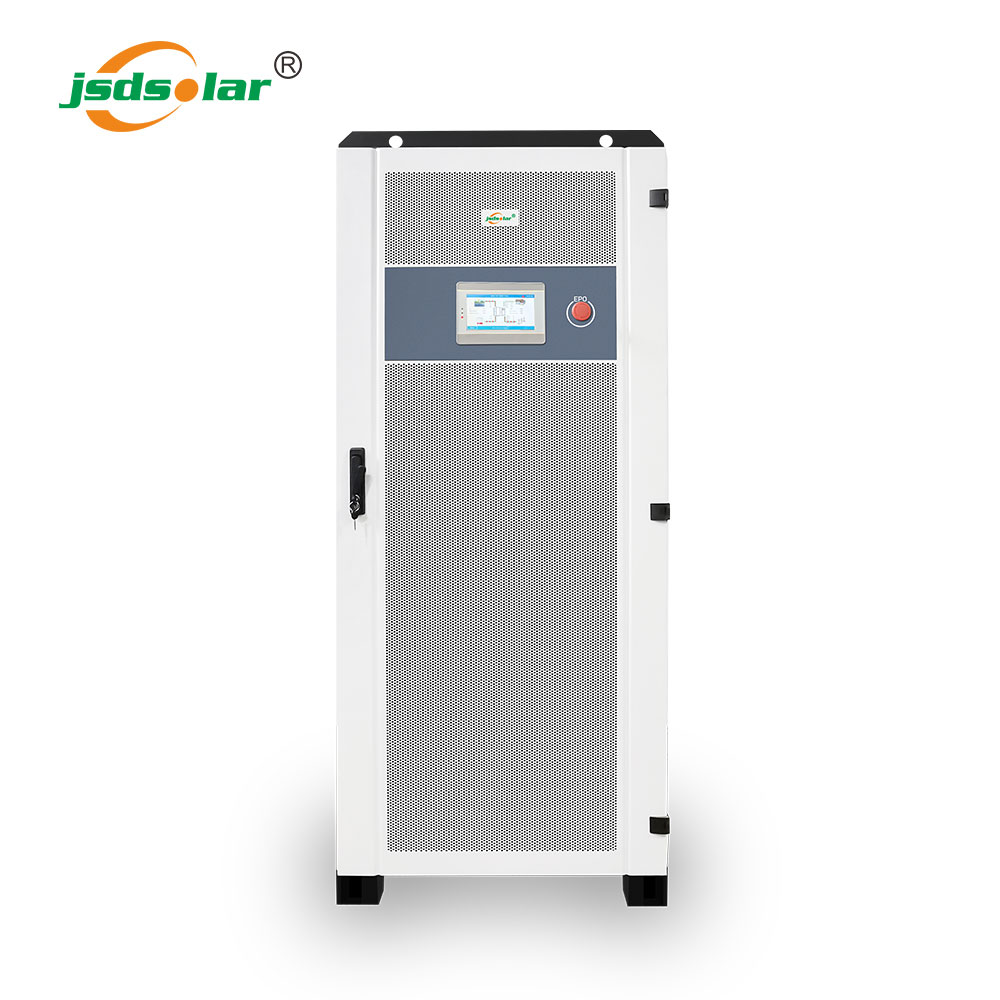

Commercial 50KW Hybrid Inverter with seamless integration and perfect protection

• Reliable battery management, seamless on/off-grid transfer, and strong load

   adaptability ensure optimal performance.

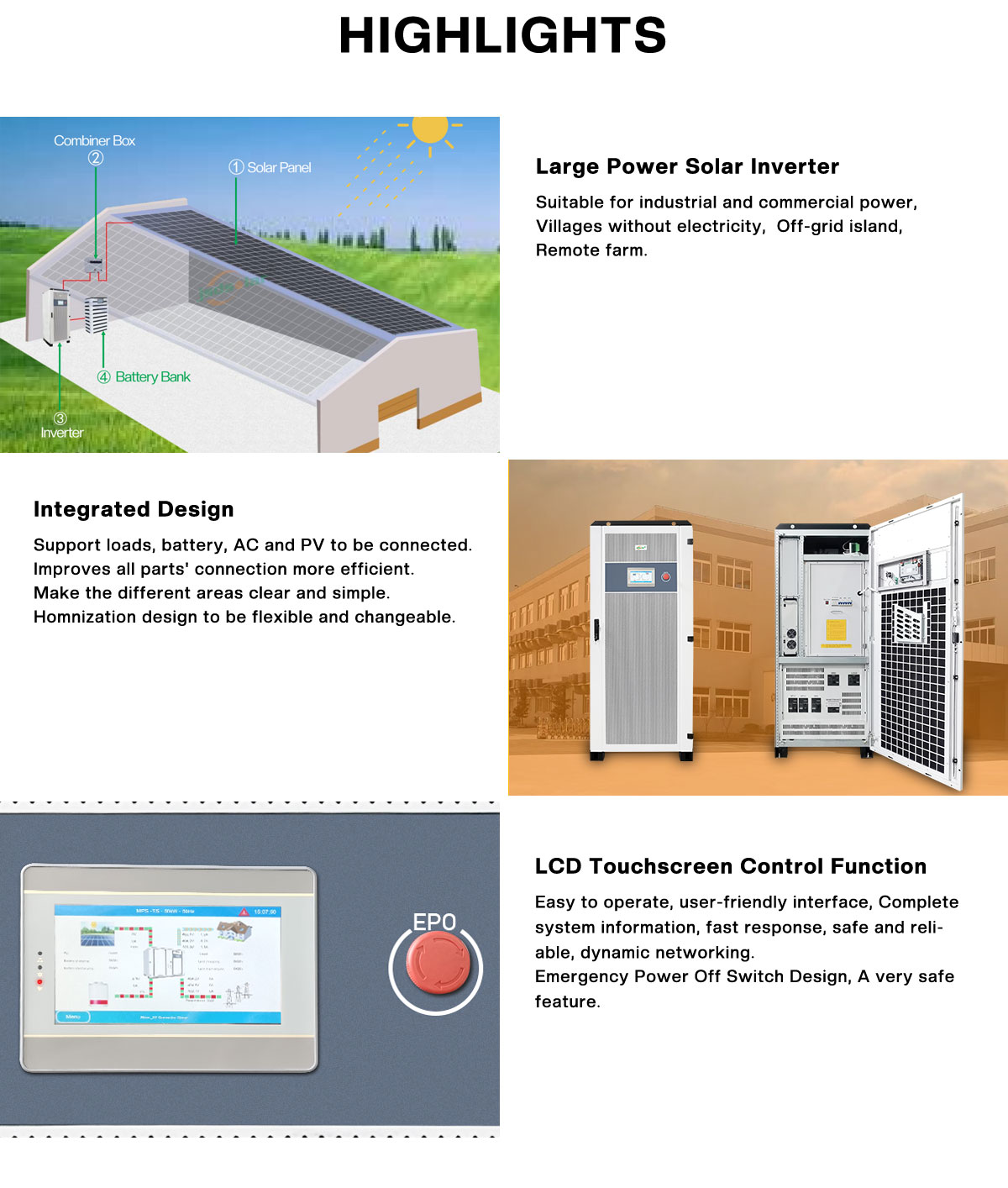

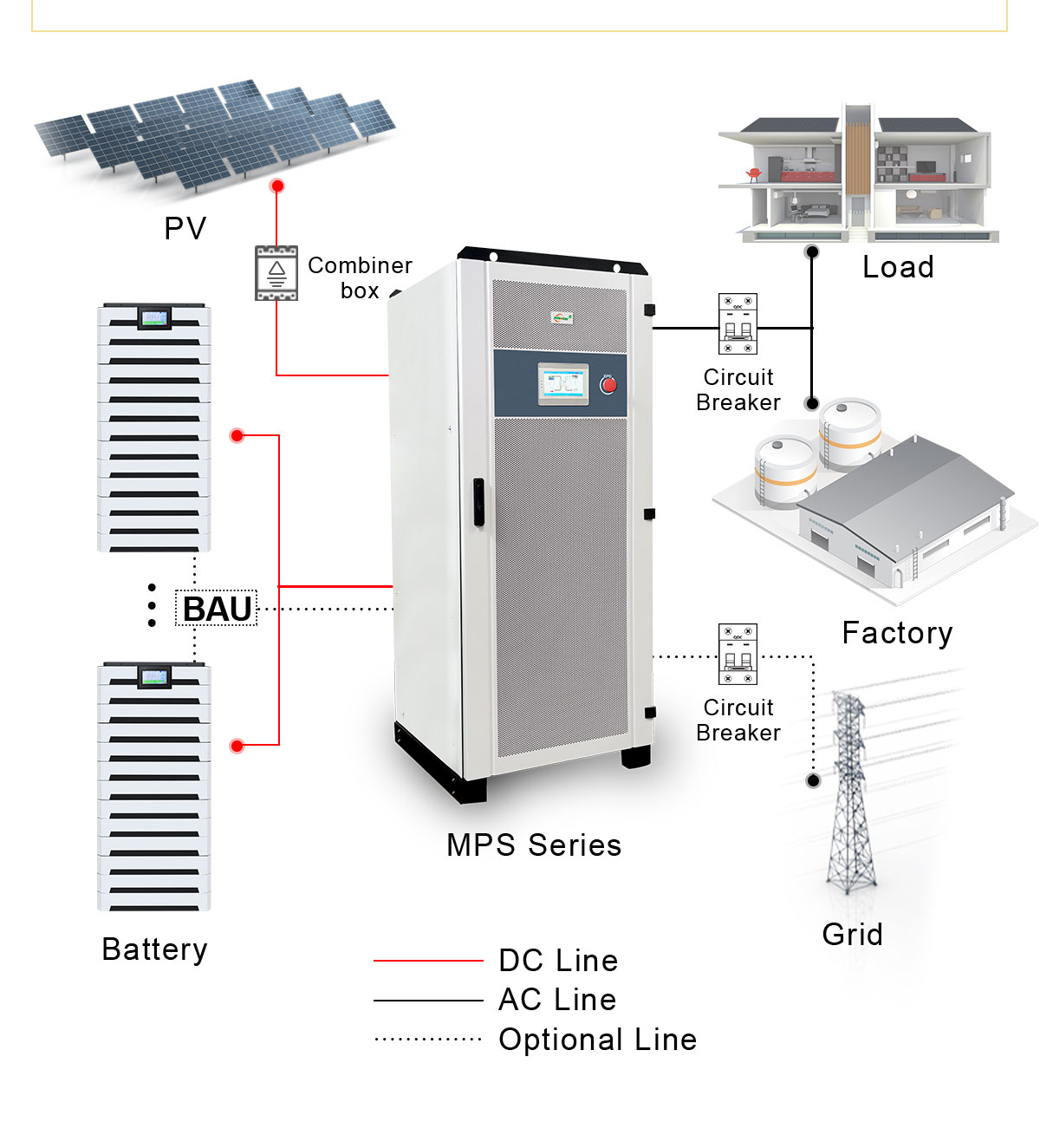

• Convenient integration supports multiple power sources for versatile

   applications.
• Integrated EMS function maximizes new energy utilization and ensures power

   supply stability.
• Flexible operation modes and expandable PV controller enable easy

   configuration.
• Perfect protection safeguards inverters and batteries for long-lasting reliability.

REQUEST A QUOTE
Technical specification MPS0050
AC(on-grid)
Max output power(KVA)  55
Rated power(KW)  50
Rated voltage(V)  400
Rated current (A)  72
Voltage range(V)  320-460
Rated frequency (Hz)  50/60
Frequency range(Hz)  45-55/55-65
THDi  <3%
Power factor  1 lagging-1 leading
AC connection  3W+N+PE
Transformer ratio  200/400
AC(Off Grid)
Max output power(KVA)  55
Rated power(KW)  50
Rated voltage(V)  400
Rated current(A)  72
THDu  ≤1% linear ; or ≤5% nonlinear
Rated frequency(Hz)  50/60
Overload capacity  110% long-term
Photovoltaic input
Max. PV input voltage(V)  1,000
Max. PV power(KW)  50
MPPT voltage range(V)  250-850
MPPT voltage range @full load (V)  450-850
Battery
Battery voltage range(V)  320~850
Max. charging power(KW)  60/120
General data

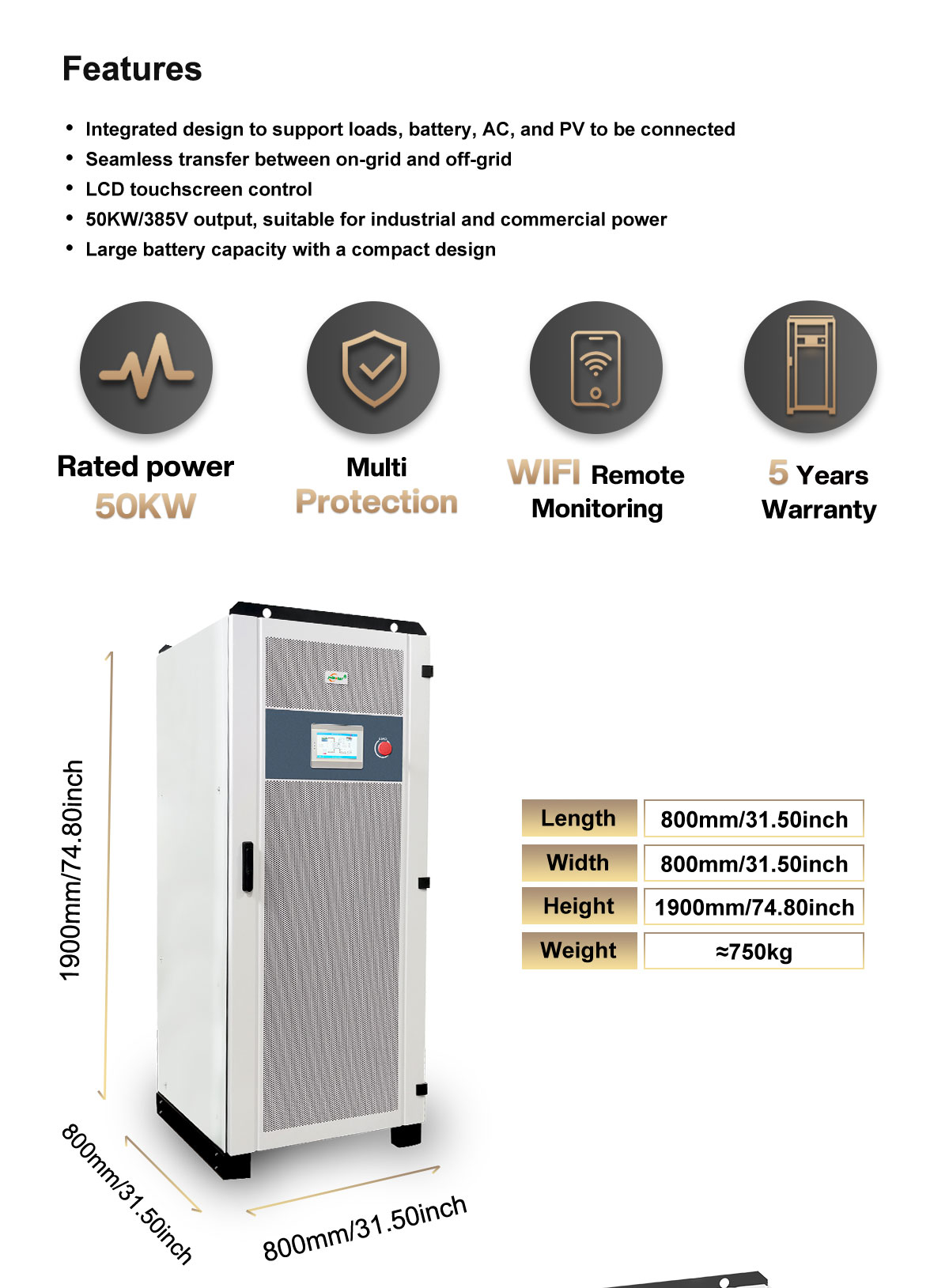

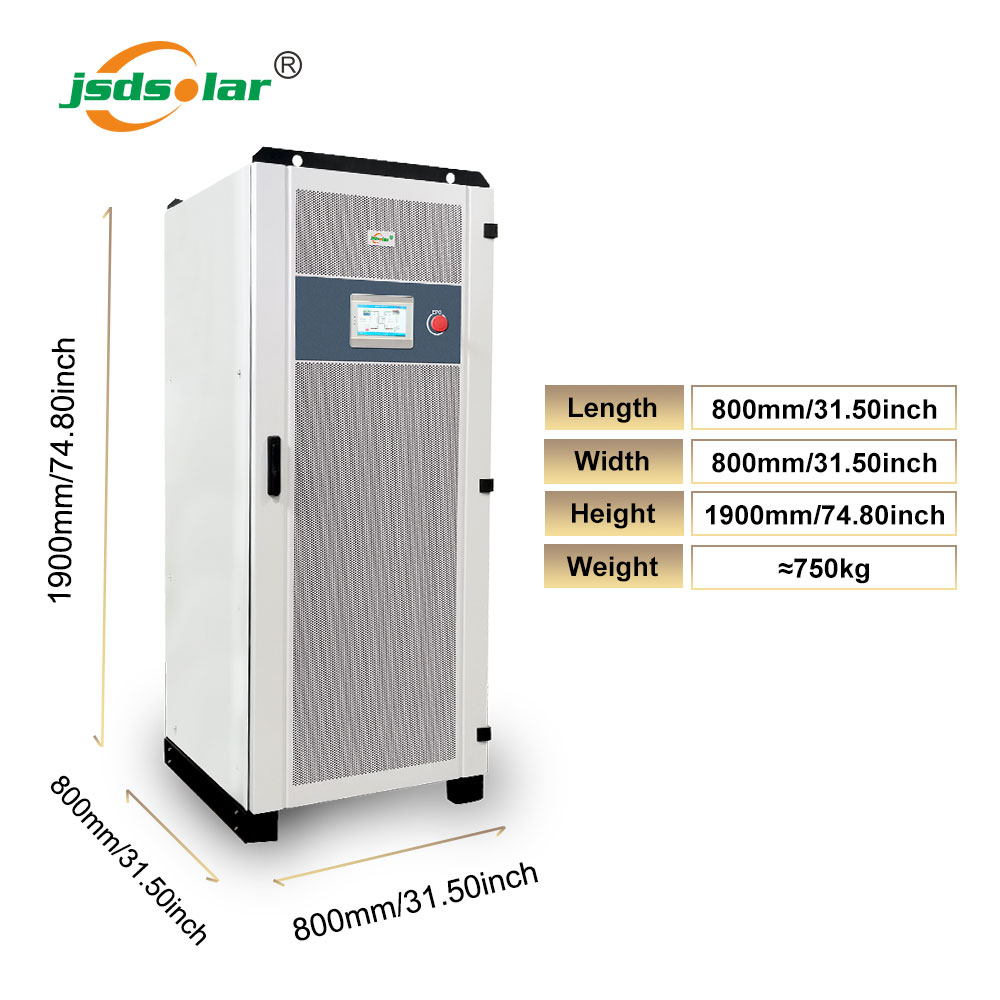

Dimension W*D*H(mm)  800*800*1,900
Weight(kg)  720/750
Operation temperature  -30℃~55℃
Relative humidity  0-95% non-condensing
Ingress protection  IP20
Noise emission(DB)  ＜70dB
Altitude  5,000m( ＞3,000 Derating )
Cooling  Air Cooling
Display and communication

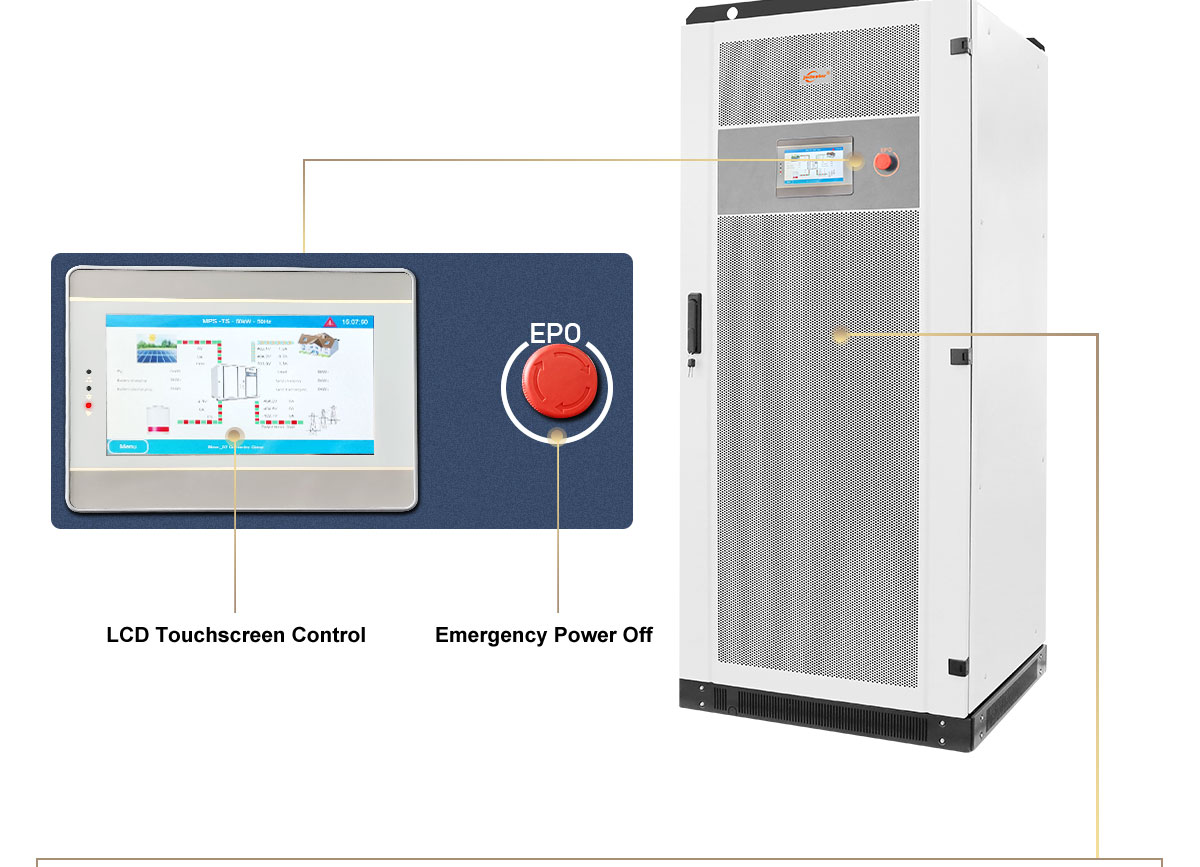

Display  LCD Touch-screen
BMS communication  RS485,CAN
EMS communication  RS485,TCP/IP
Certificates TUV,CE
