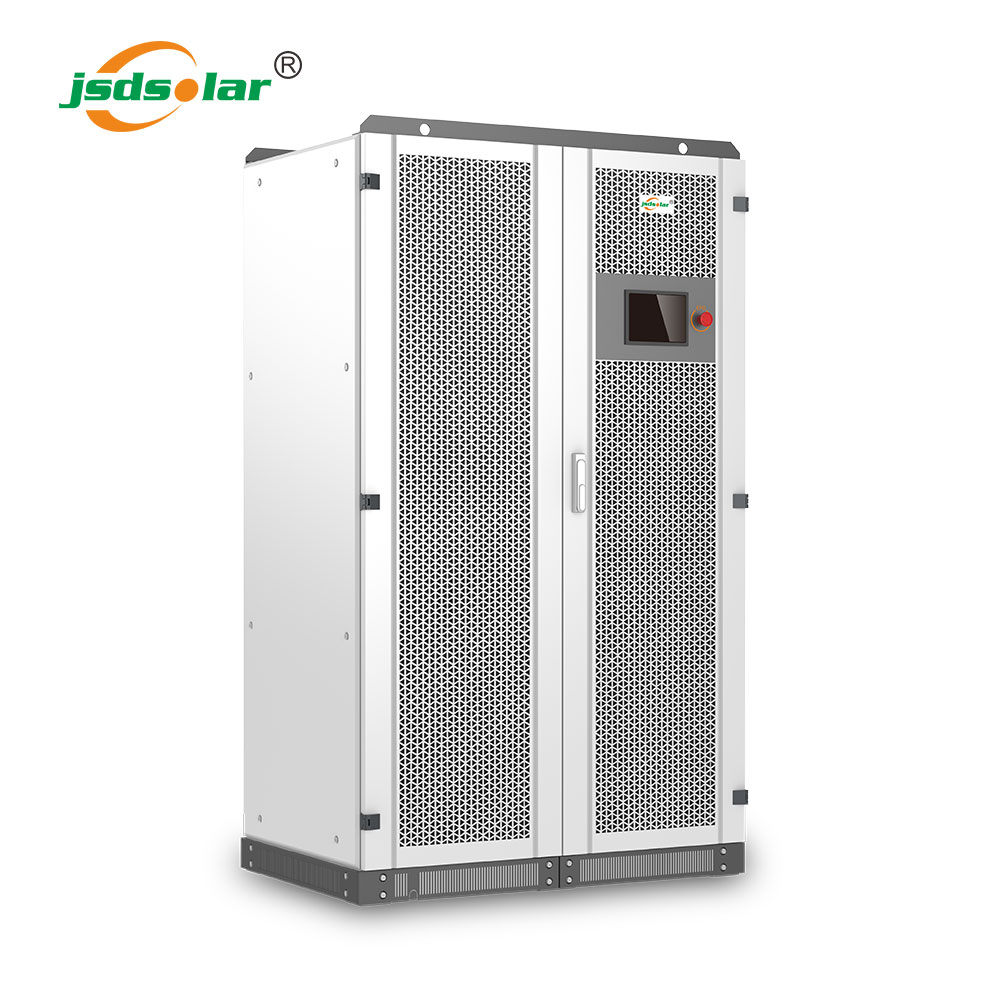

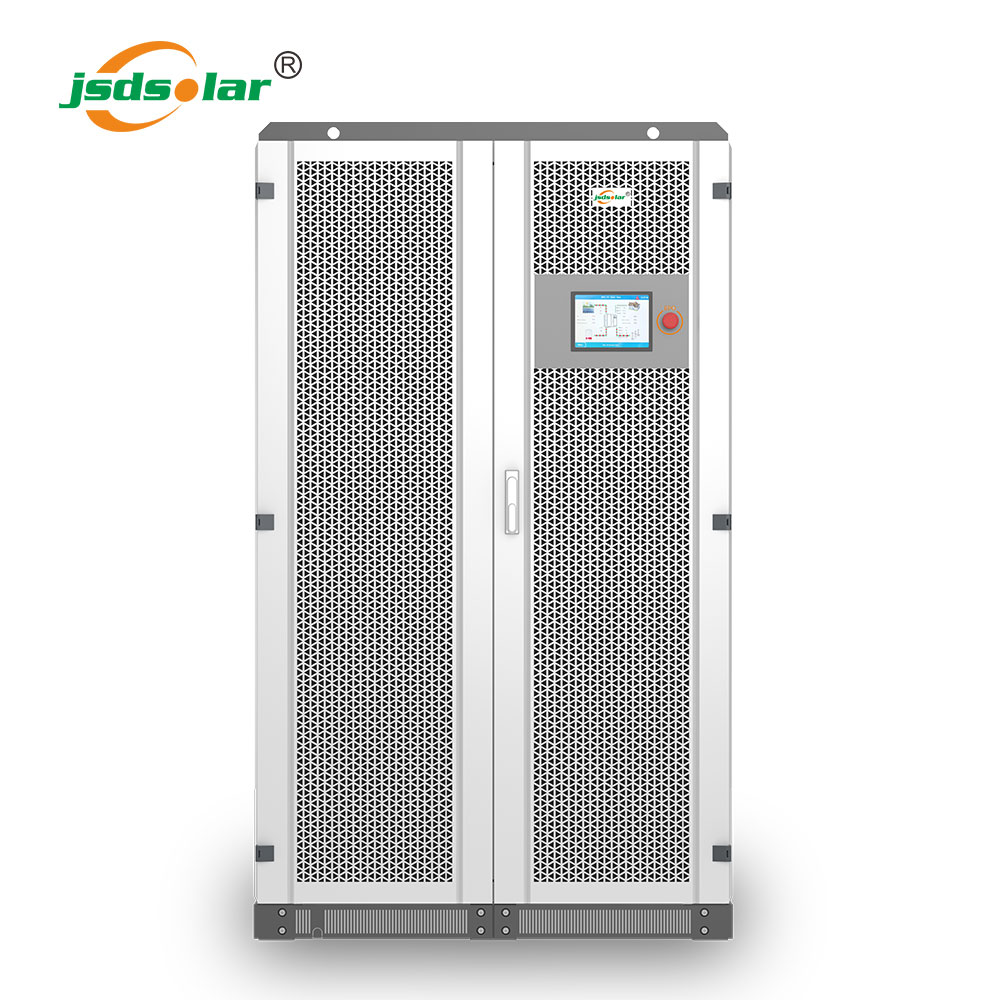

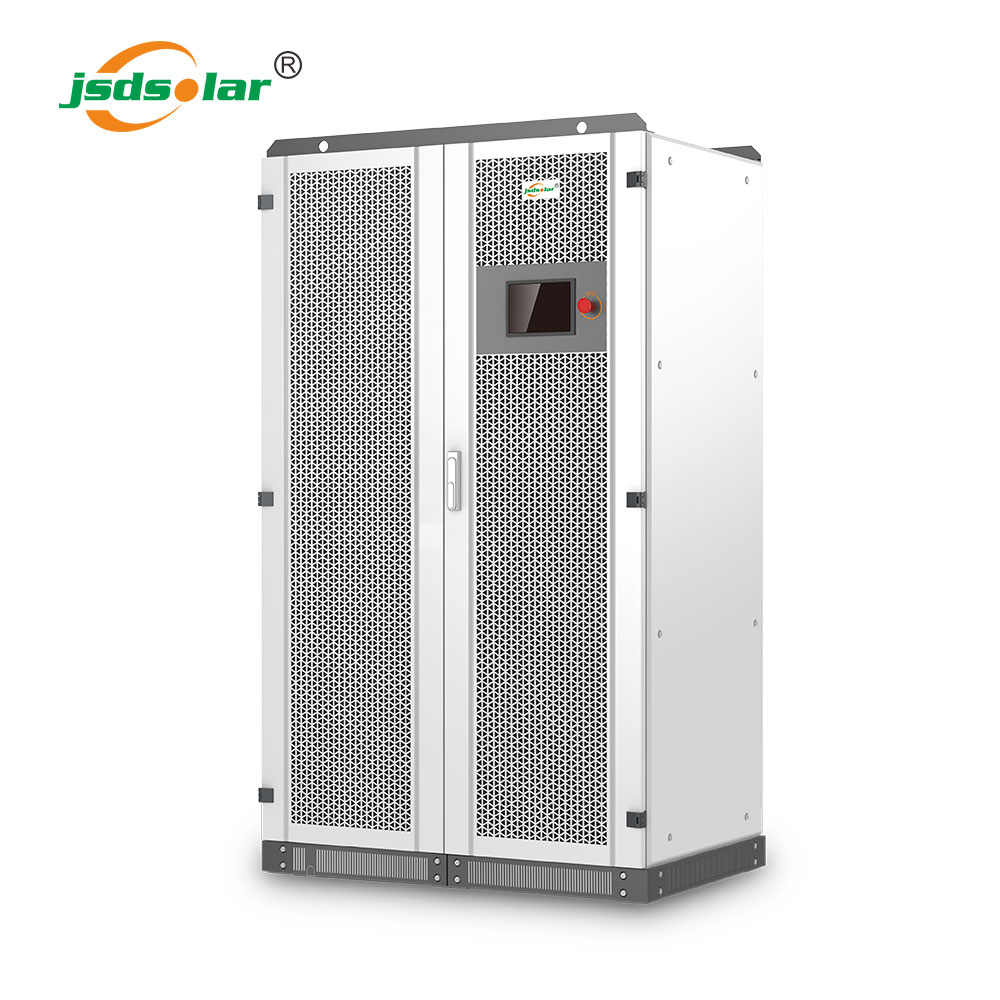

Commercial 150KW Hybrid Inverter for energy storage solution

• Flexible working modes and expandable PV controller for versatile

   applications; PV+ESS integrated machine.
• Built-in isolation transformer for high load adaptability; perfect protection for

   inverter and battery.

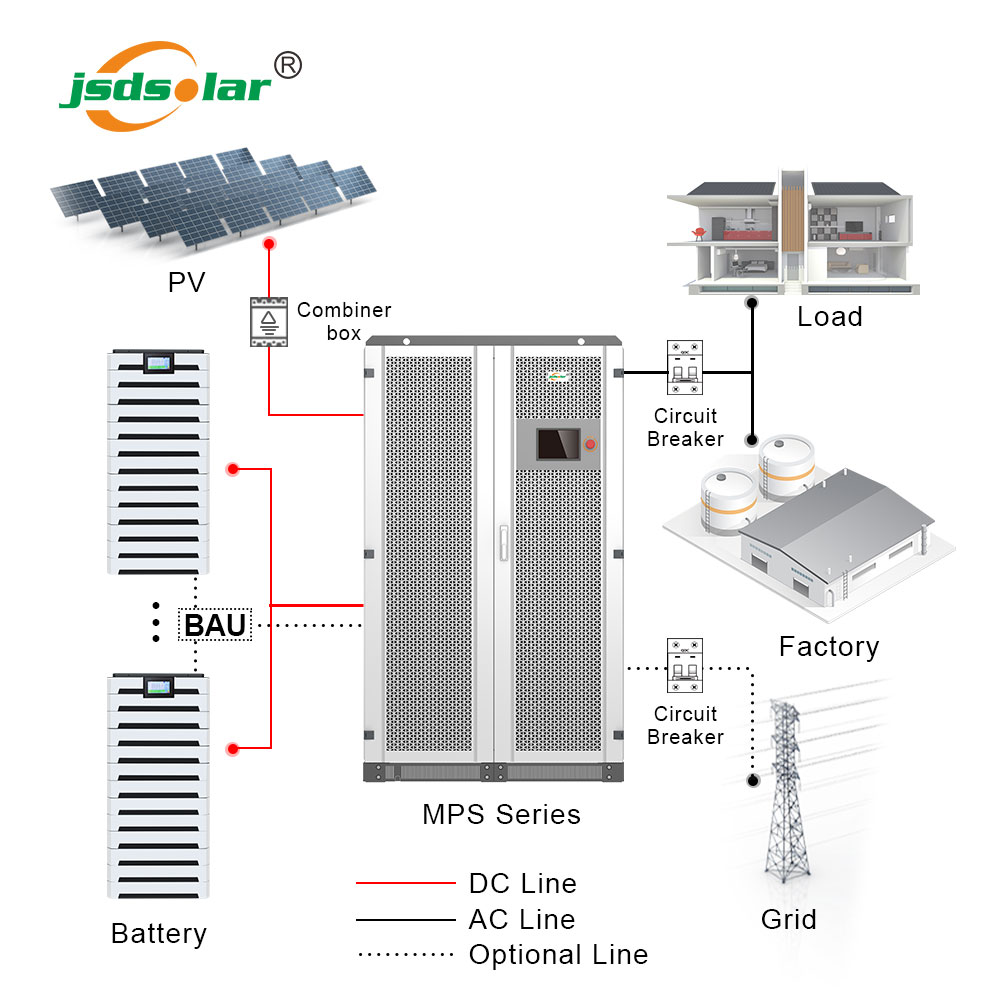

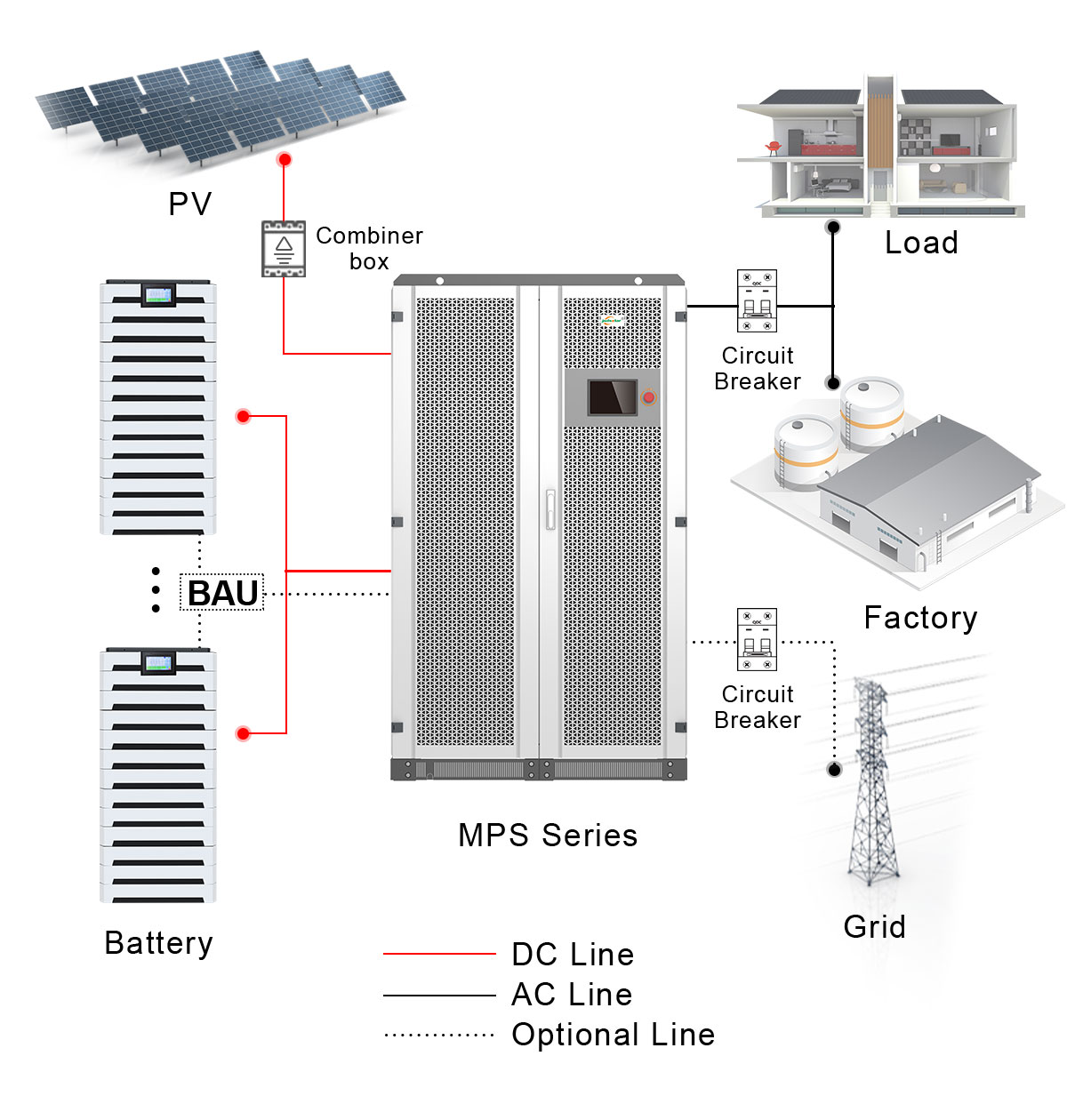

• Redundancy design ensures safety and reliability. Integrated design supports

   simultaneous access to load, battery, power grid, diesel, and PV.
• Abundant configuration options with battery capacity and discharge time

   prediction.
• Smooth switching between on and off-grid operation for uninterrupted load

   supply.

REQUEST A QUOTE
Technical specification MPS0150
AC(on-grid)
Max output power(KVA)  165
Rated power(KW)  150
Rated voltage(V)  400
Rated current (A)  216
Voltage range(V)  320-460
Rated frequency (Hz)  50/60
Frequency range(Hz)  45-55/55-65
THDi  <3%
Power factor  1 lagging-1 leading
AC connection  3W+N+PE
Transformer ratio  270/400
AC(Off Grid)
Max output power(KVA)  165
Rated power(KW)  150
Rated voltage(V)  400
Rated current(A)  216
THDu  ≤1% linear ; or ≤5% nonlinear
Rated frequency(Hz)  50/60
Overload capacity  110% long-term
Photovoltaic input
Max. PV input voltage(V)  1,000
Max. PV power(KW)  150
MPPT voltage range(V)  250-850
MPPT voltage range @full load (V)  450-850
Battery
Battery voltage range(V)  420~850
Max. charging power(KW)  120/180/240
General data

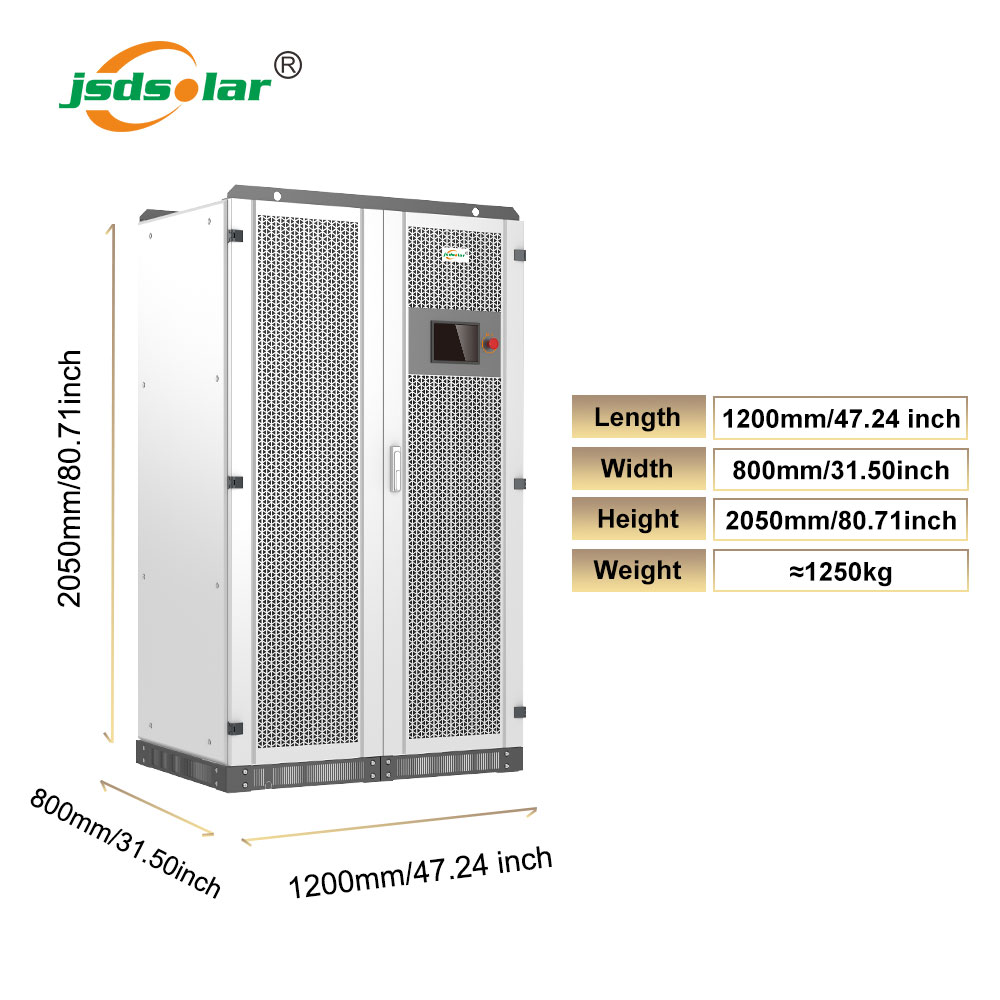

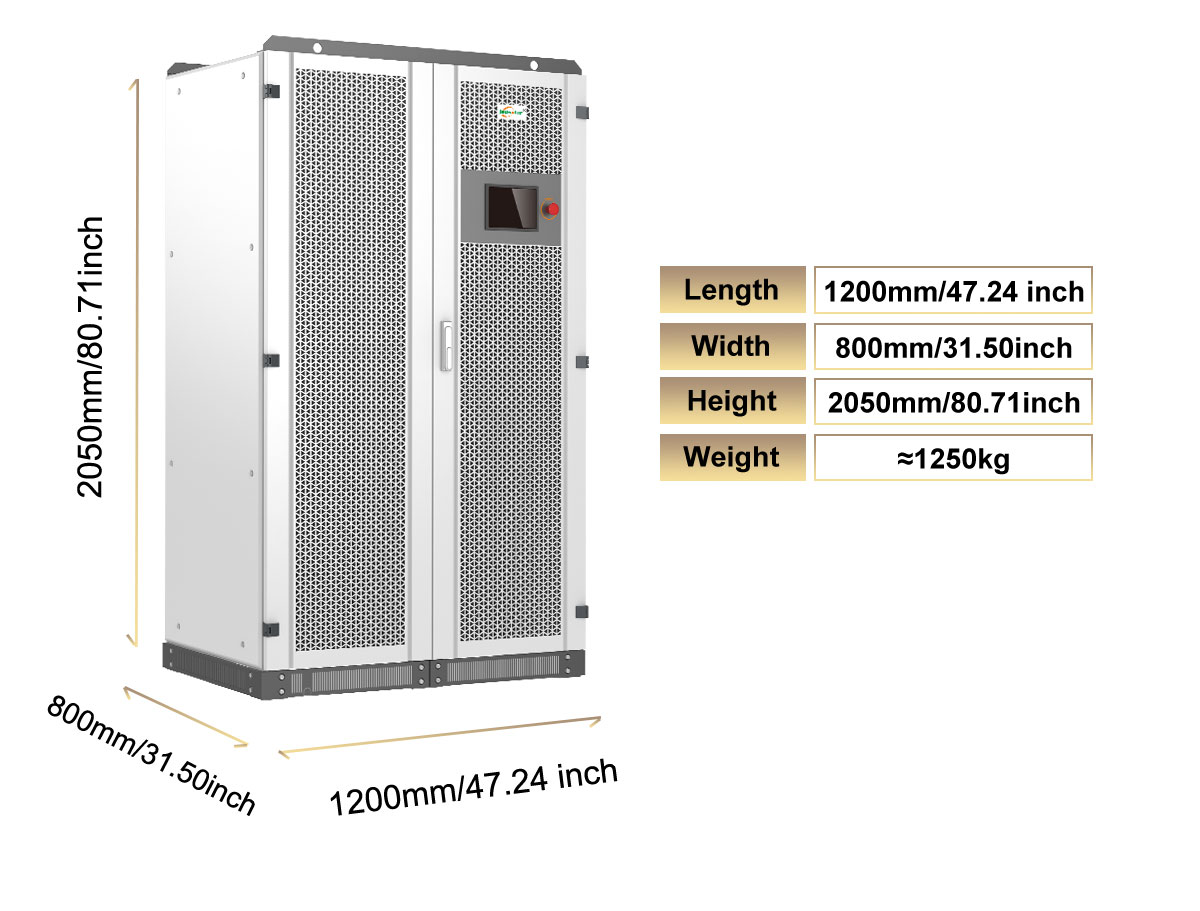

Dimension W*D*H(mm)  1,200*800*2,050
Weight(kg)  1,250/1,280/1,310
Operation temperature  -30℃~55℃
Relative humidity  0-95% non-condensing
Ingress protection  IP20
Noise emission(DB)  ＜70dB
Altitude  5,000m( ＞3,000 Derating )
Cooling  Air Cooling
Display and communication
Display  LCD Touch-screen
BMS communication  RS485,CAN
EMS communication  RS485,TCP/IP
Certificates TUV,CE
