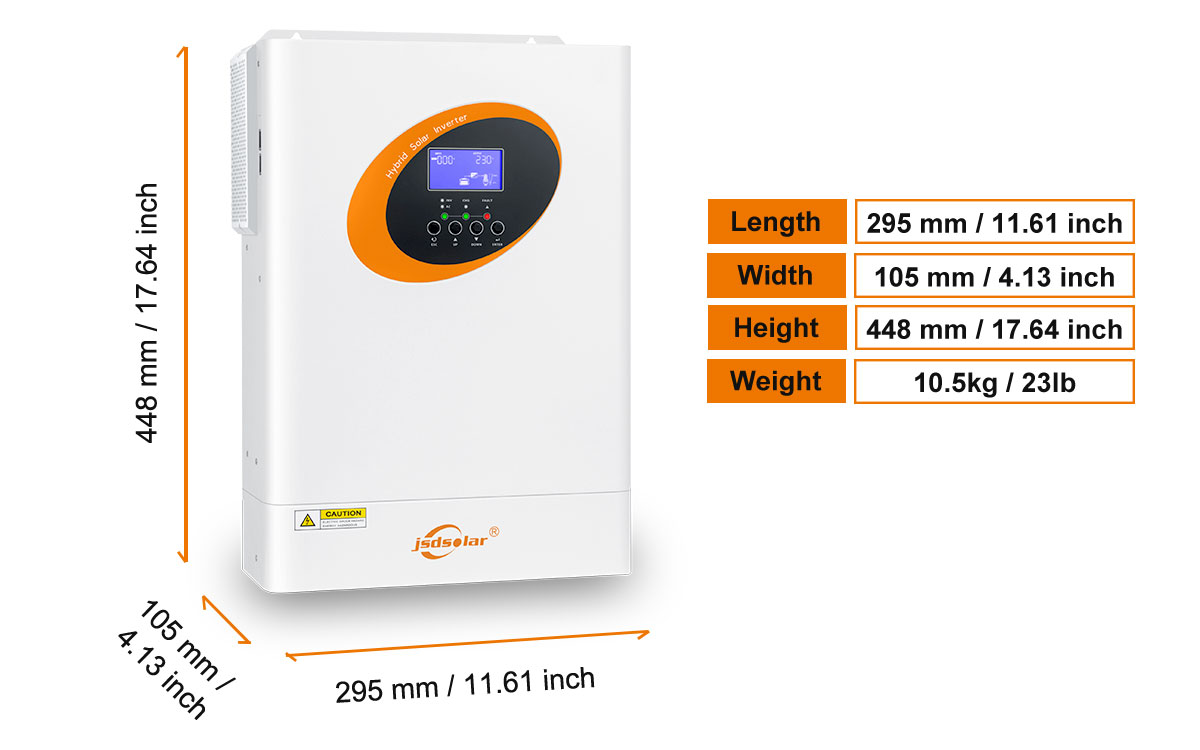

MODEL	J5500HPC
Parallel	5.5KW

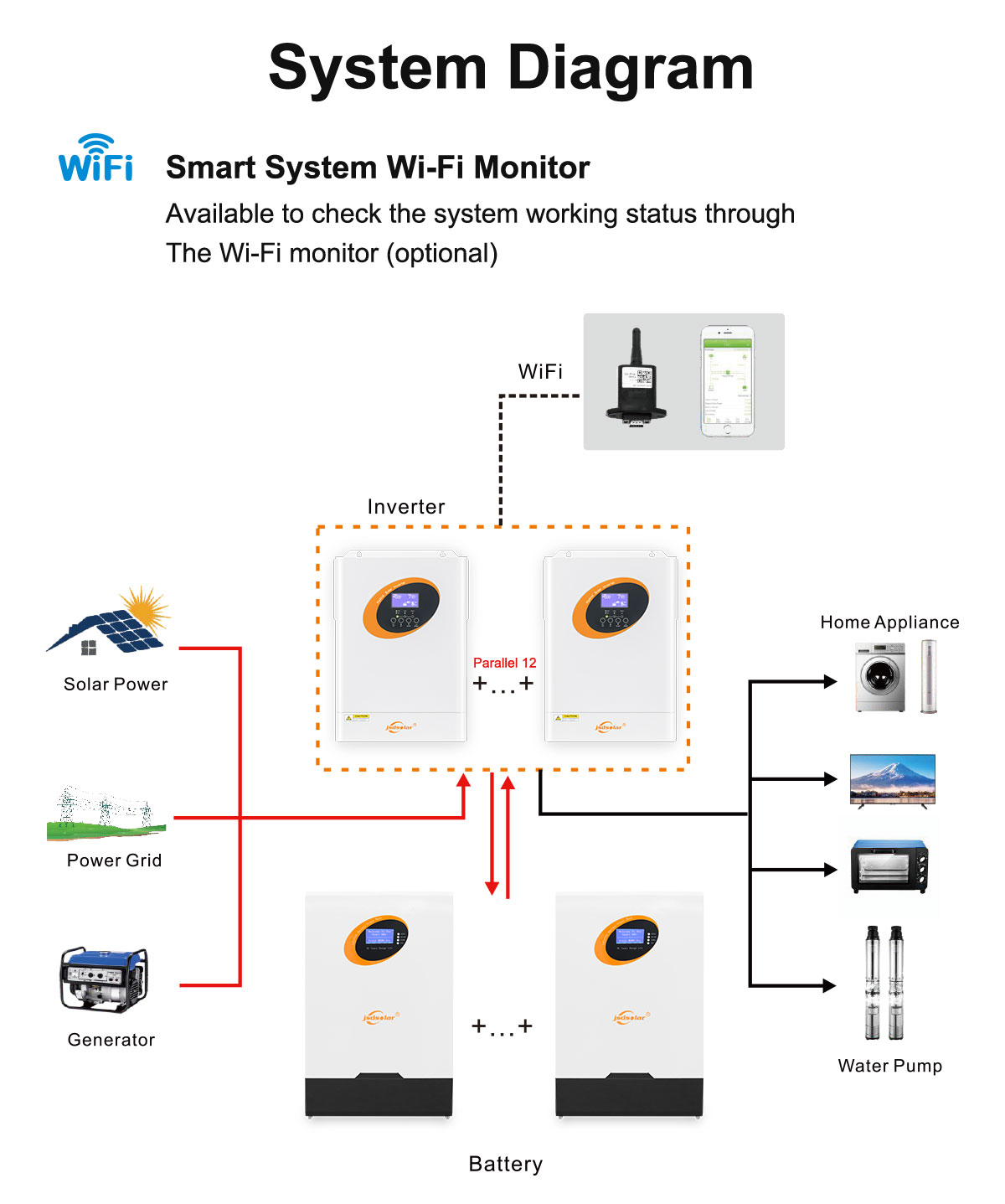

Capability	YES,12units
Input
Nominal voltage	230VAC
Acceptable voltage Range	170-280 VAC (For Personal Computers) 90-280 VAC(For Home Appliances)
Frequency	50/60HZ(Auto sensing)
Output
Nominal voltage	220/230VAC土5%
Surge Power	10000VA
Frequency	50Hz/60Hz
Waveform	Pure Sine Wave
Transfer Time	10ms (For Personal Computers) 20ms (For Home Appliances)
Peak Efficiency (Pv to INV)	97%
Peak Efficiency (Battery to INV)	93%
Overload Protection	5s@>=150%load; 10s 110%~150%load
Crest Factor	3:01
Admissible Power Factor	0.6~1(inductive or capacitive)
Battery
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	63 VDC
Charging Method	CC/CV
Solar Charge & AC Charge
Solar Charge Type	MPPT
Max. PV Array Power	5500W

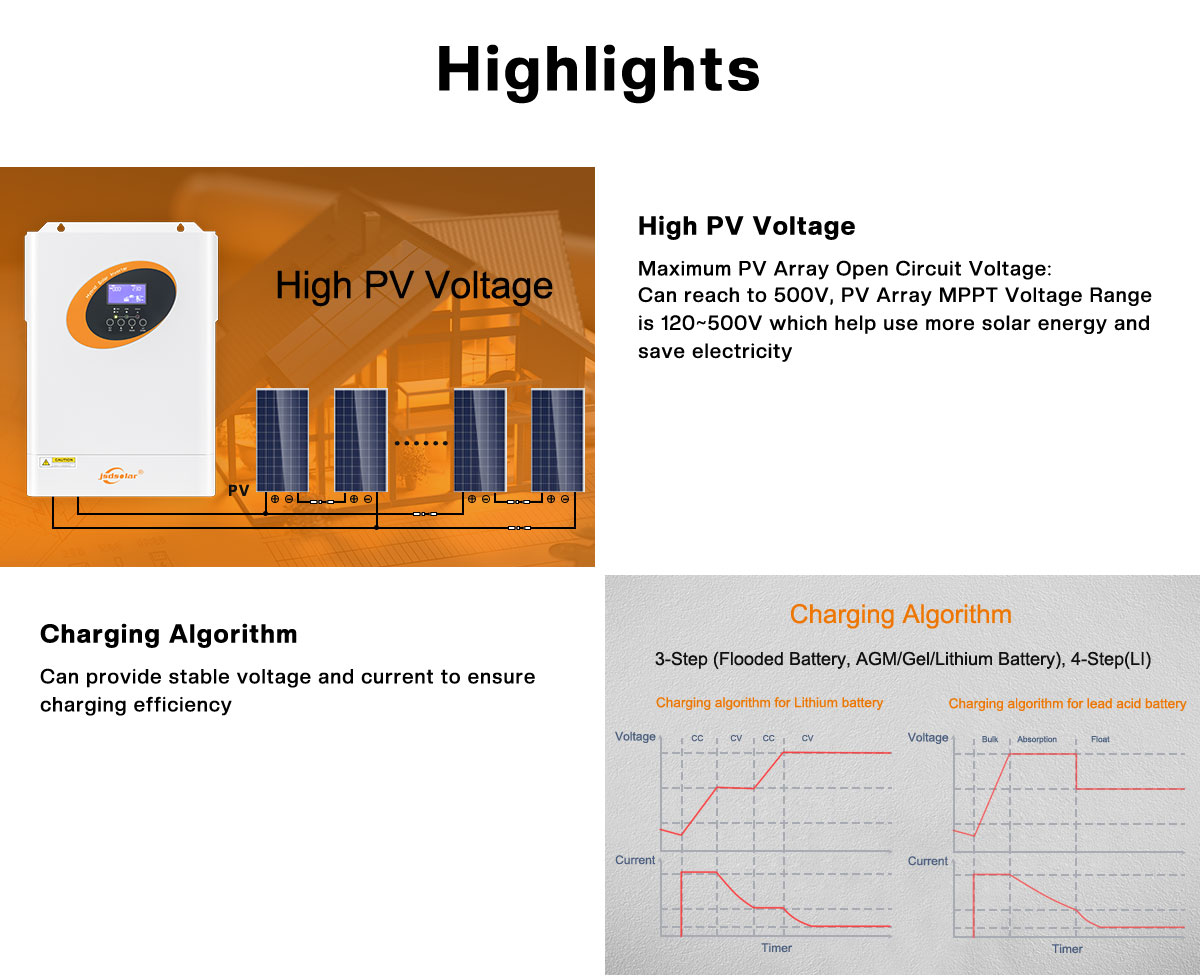

Max. PV Array Open Circuit Voltage	500 VDC
PV Array MPPT Voltage Range	120VDC~450 VDC
Maximum Solar Input Current	18A
Maximum Solar Charge Current	100A
Maximum AC Charge Current	60A
Maximum Charge Current	100A

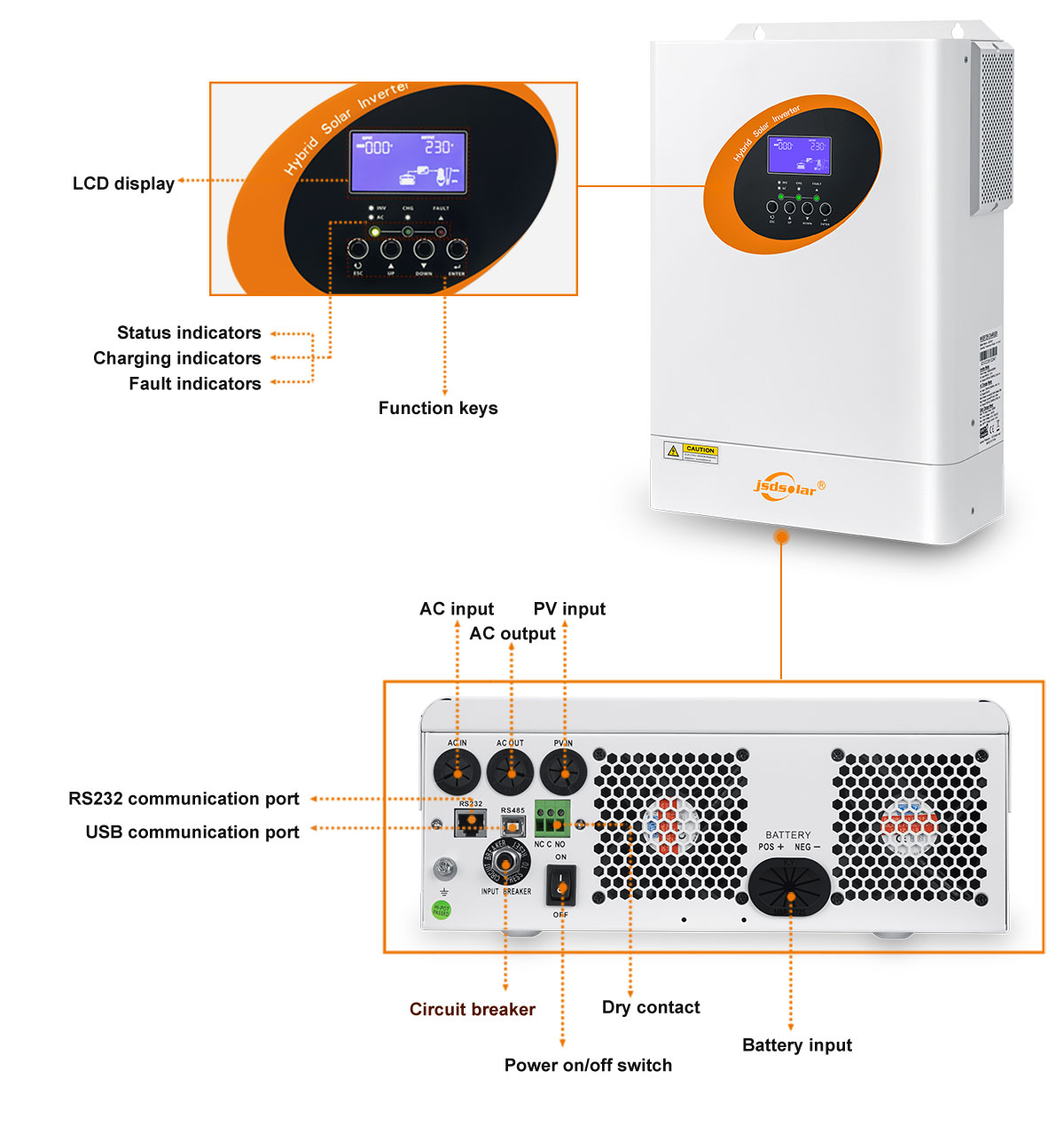

Communication Interface	USB/RS232/Dry-contact
Environment
Operating Temperature	(-10℃~50℃)
Storage Temperature	(-15℃~60℃)
Humidity	5% to 95% Relative Humidity (Non-condensing)

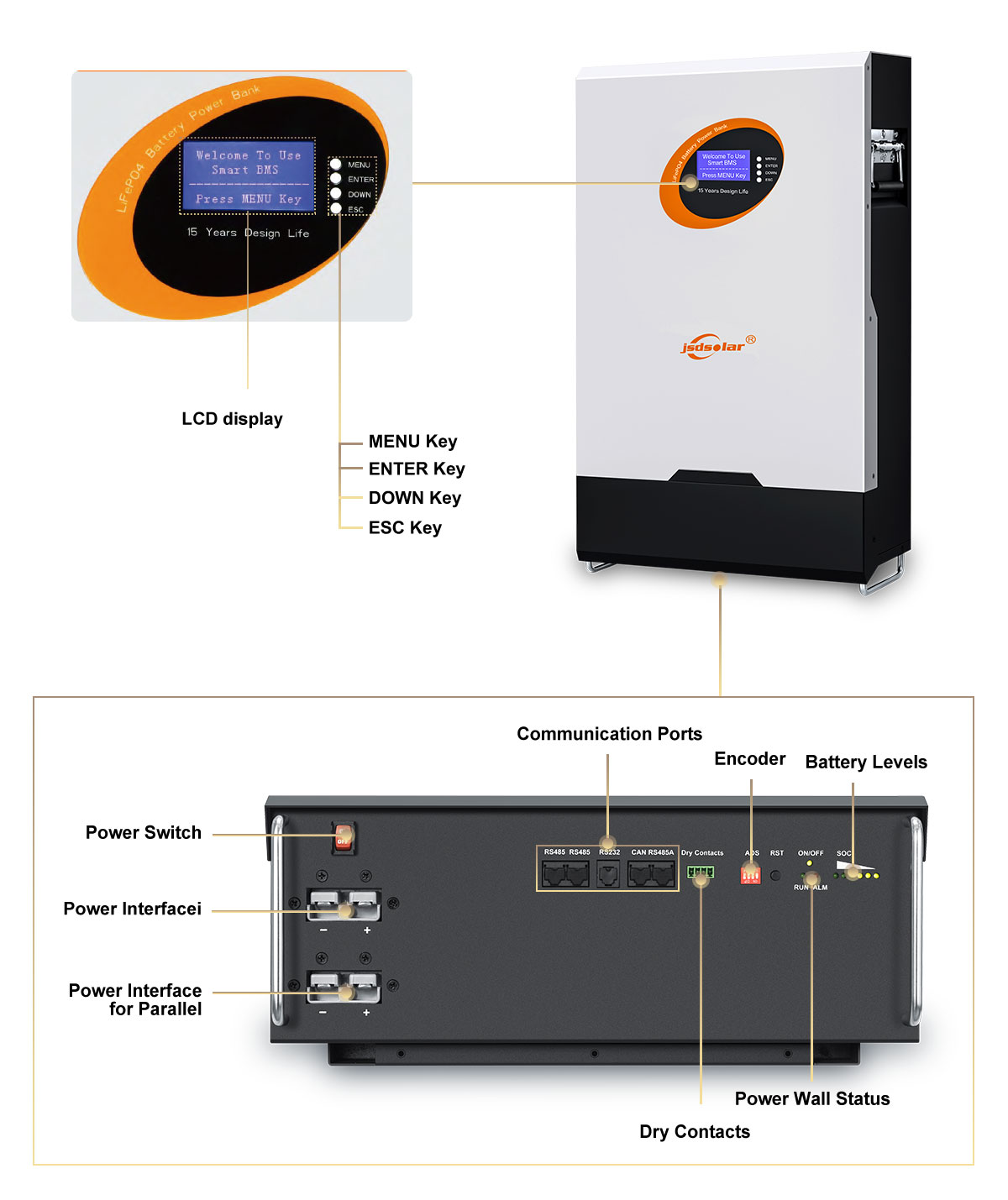

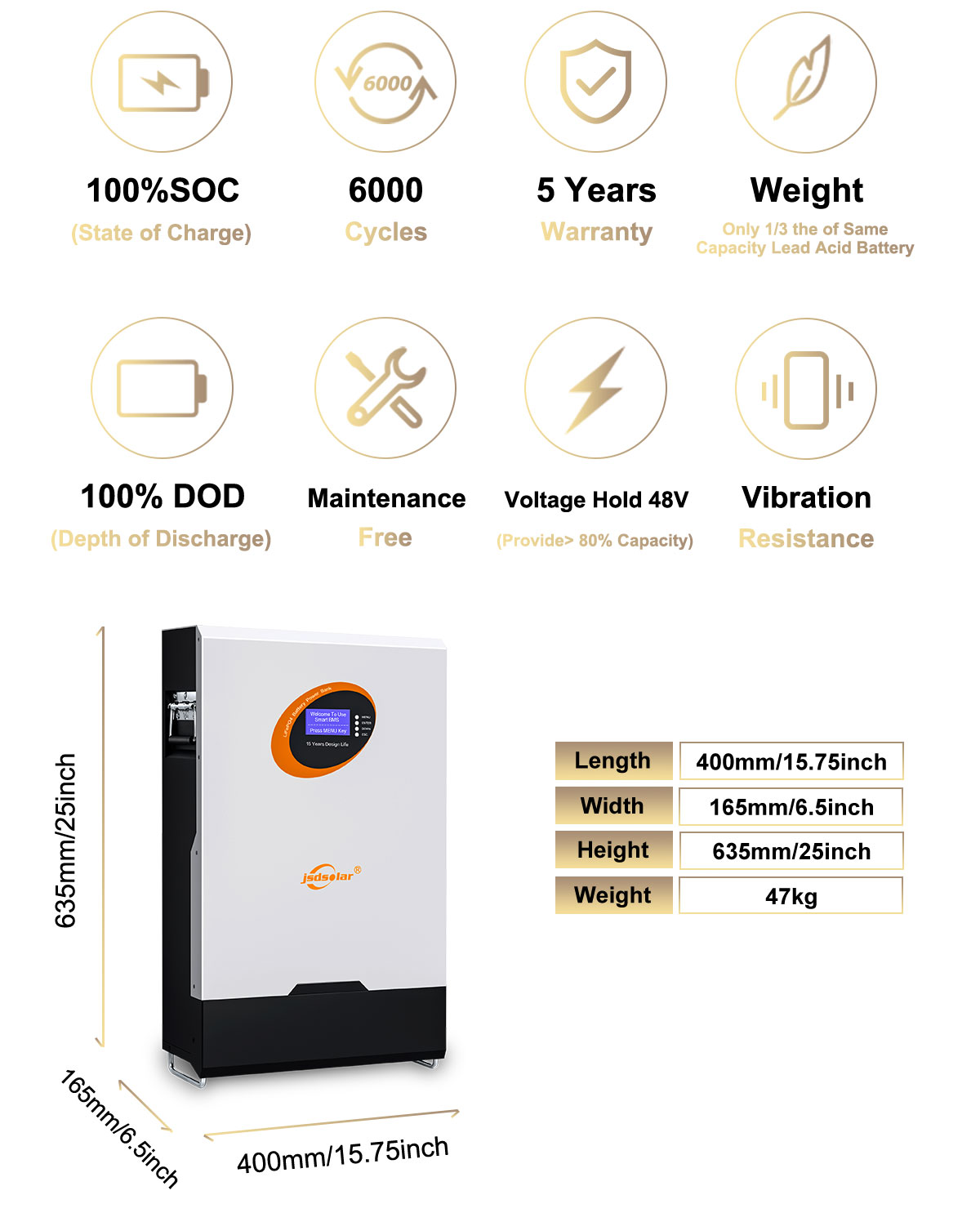

Mode	LFP48100
Normal Capacity	100Ah
Total Energy	5KWH
Battery Type	LiFePO4
Normal Voltage	51.2V
Max.Charge / Discharge Current	100A
lnstallation	Wall Mounted
Waterproof	IP21&IP65
Communication Port	RS232/RS485/CAN
Support Parallels	Max.15pcs in Parallels
Dimension	635400165mm
weight	46KG
Certificates	CE UN38.3

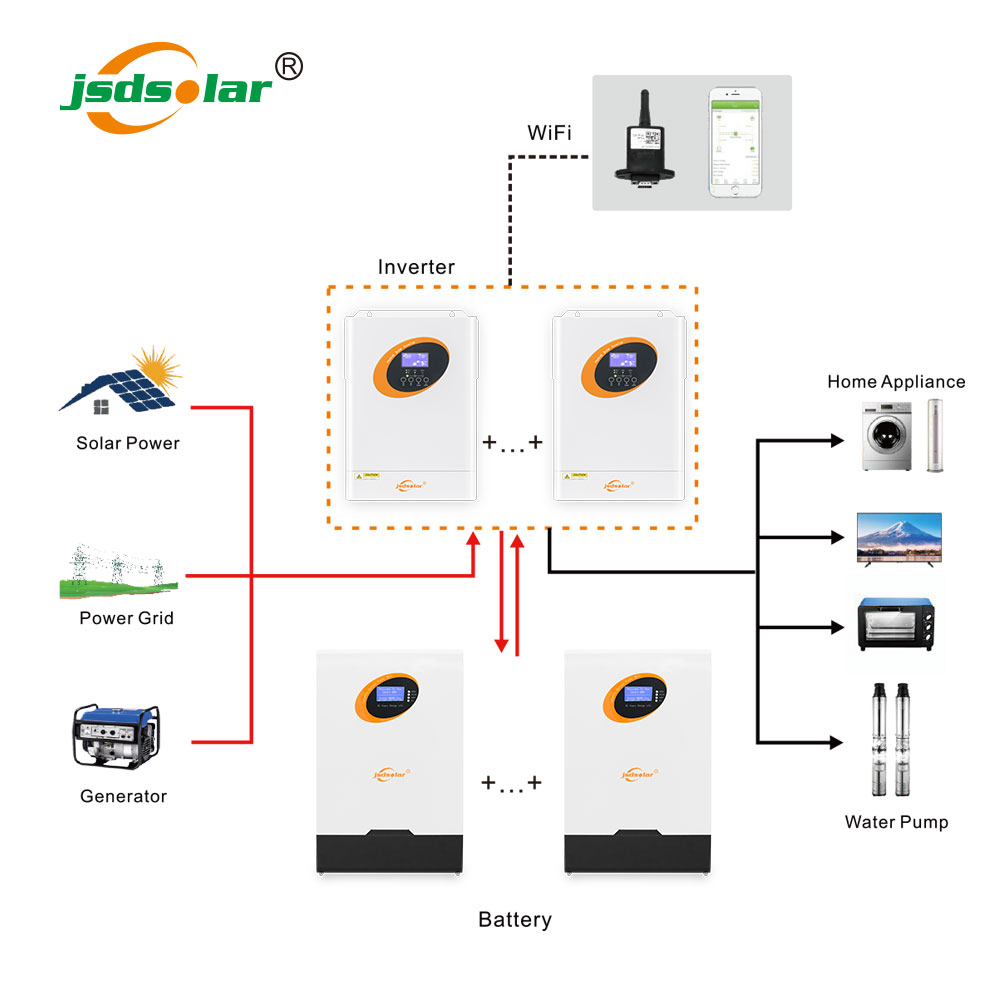

Solar Power System

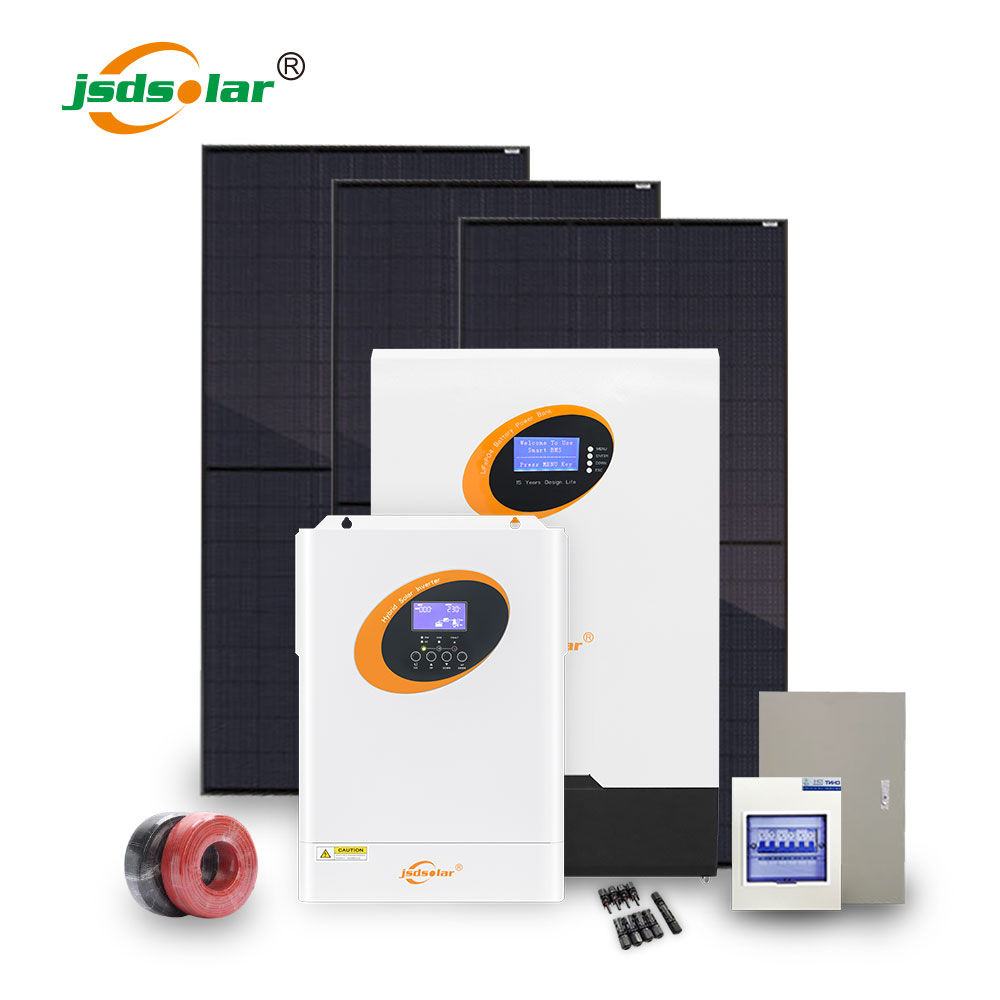

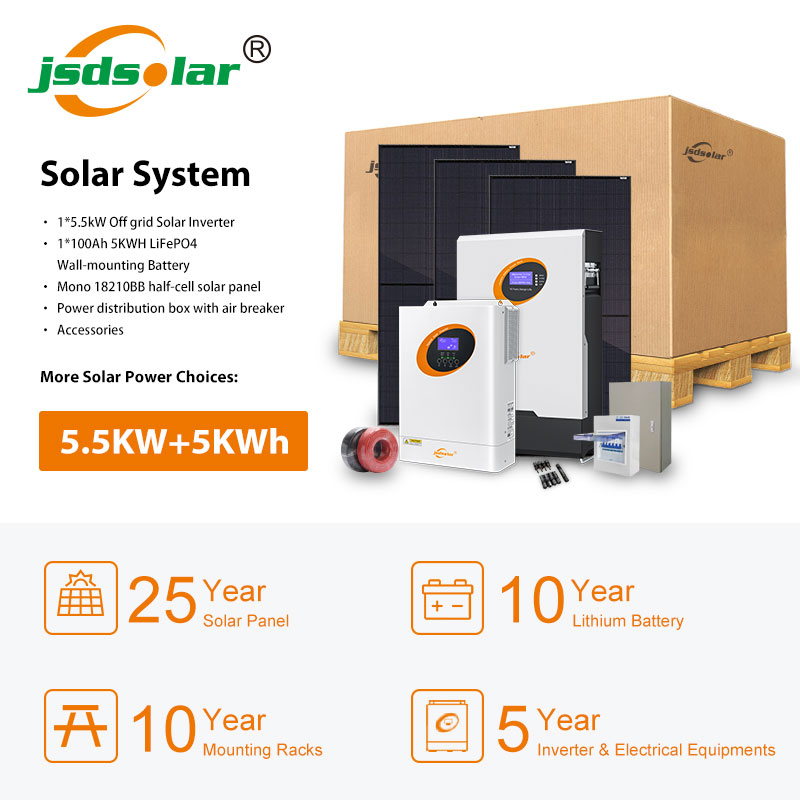

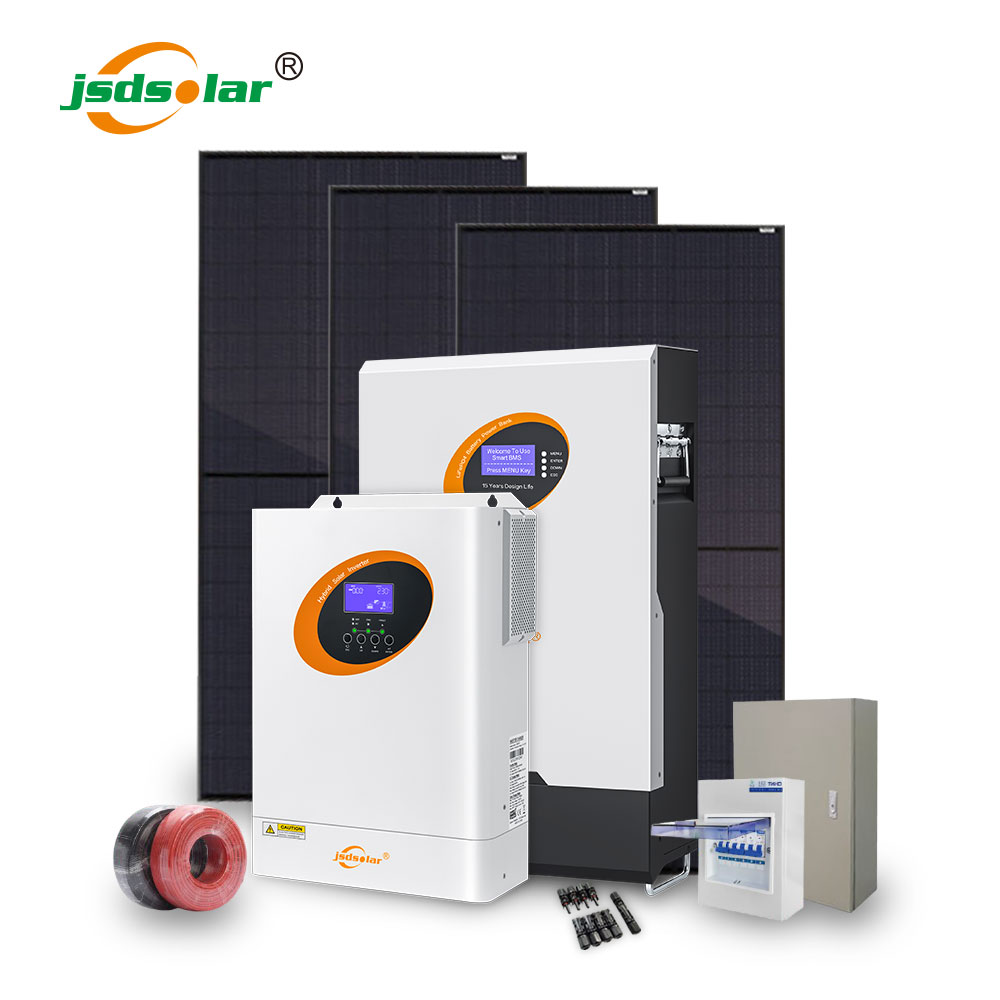

Solar Power System 5.5KW solar Inverter and 5KWH LiFePO4 battery
