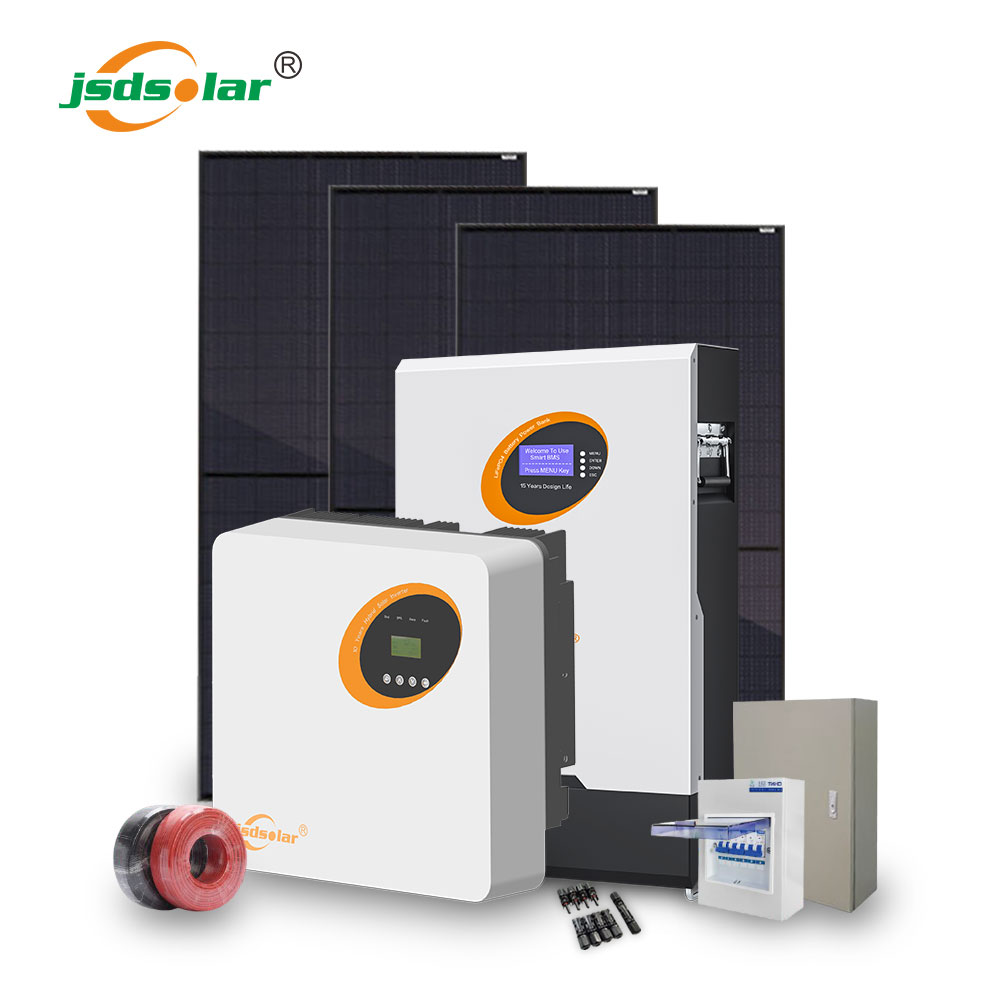

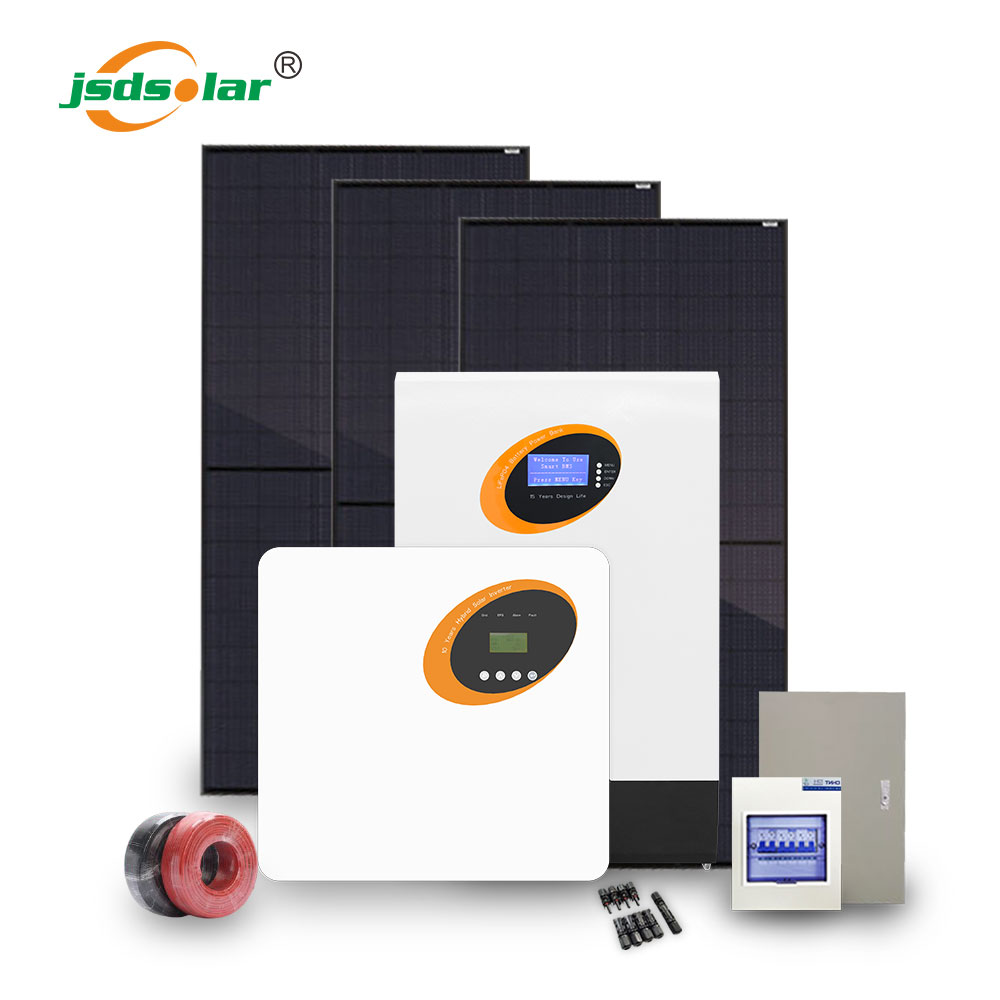

Solar Power System 6KW solar Inverter and 5KWH LiFePO4 battery

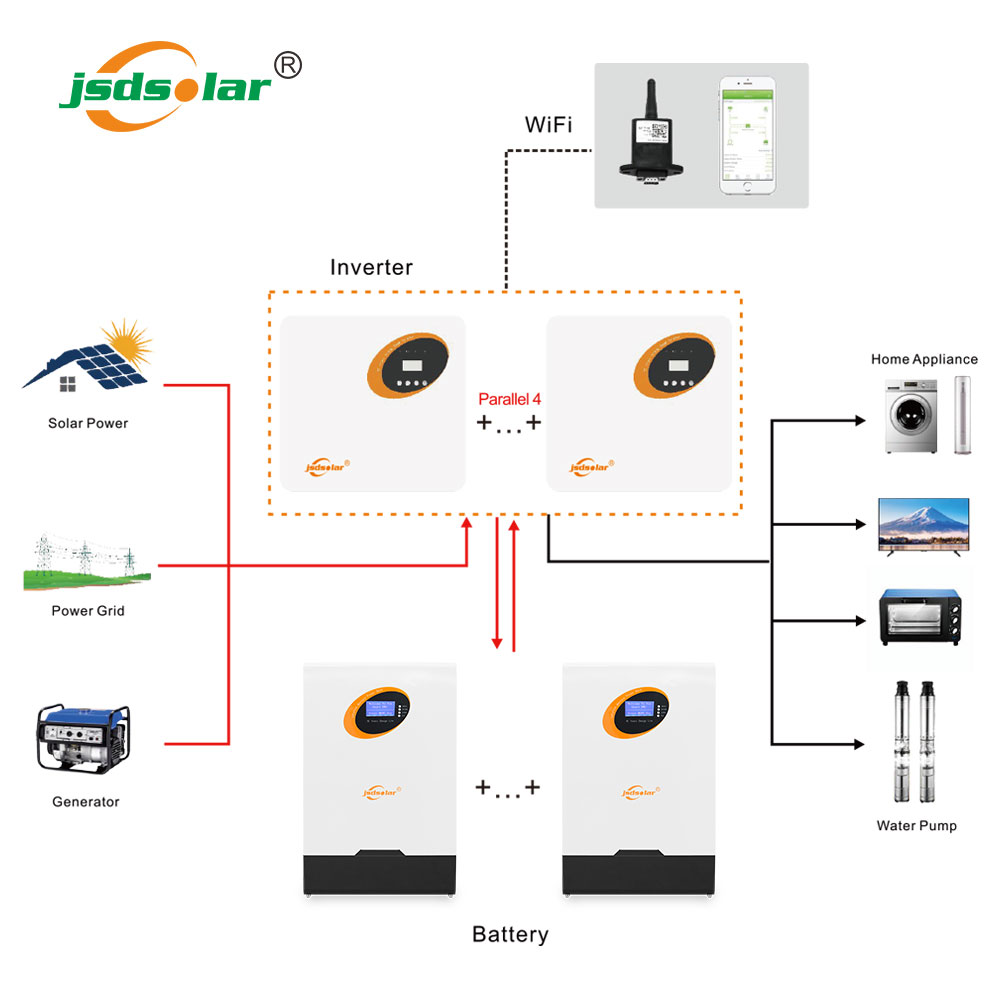

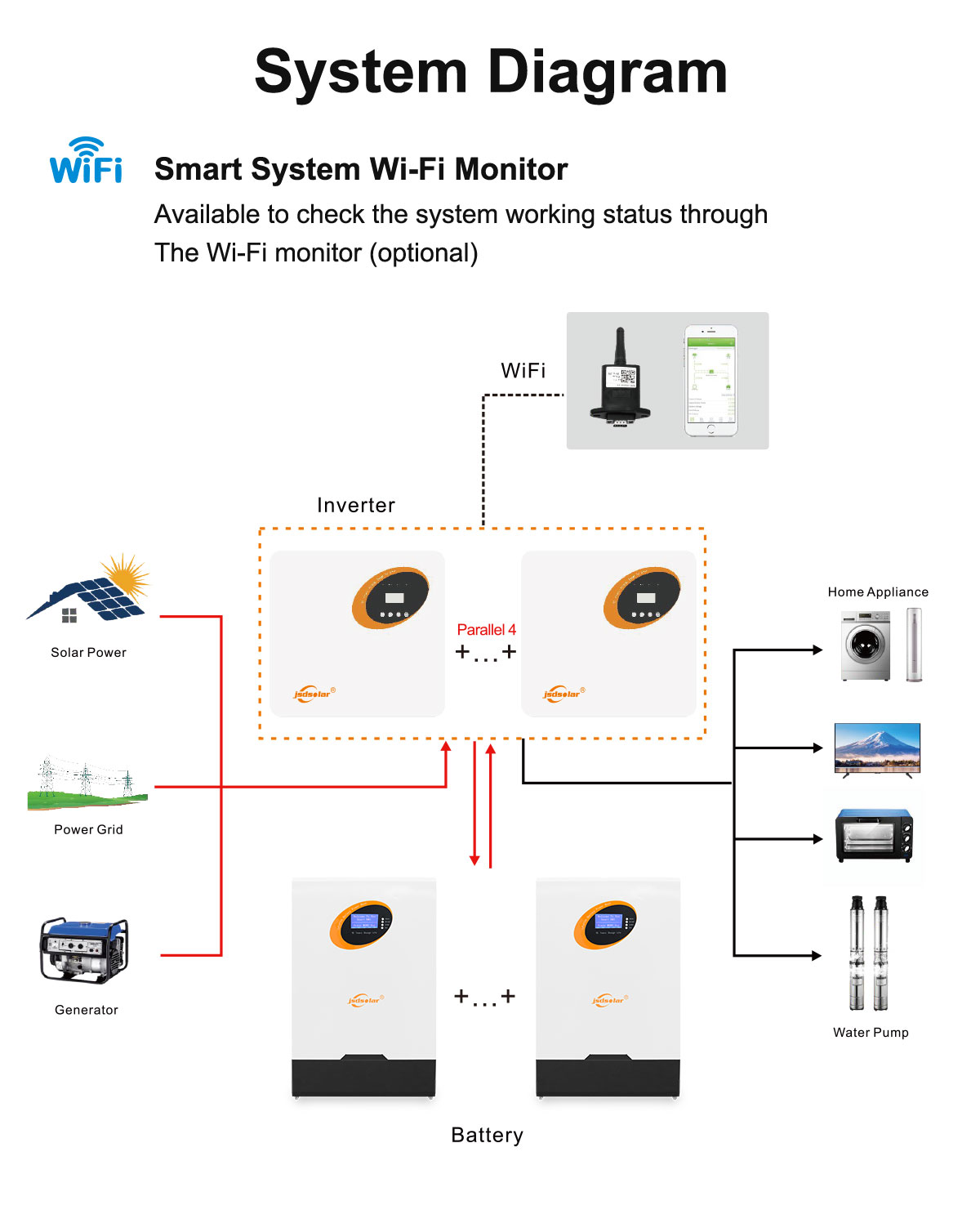

• 6KW to 24KW solar home system option
• System Type : hybrid
• 6KW parallel inverter
• 5KWH LiFePO4 battery
• Mono 18210BB half-cell solar panel
• Pitched roof or flat roof mounted bracket
• Power distribution box with air breaker
• Accessories

REQUEST A QUOTE
Model J6KHP
PV input
Max. Input Power 7000W
Start-up voltage 125V

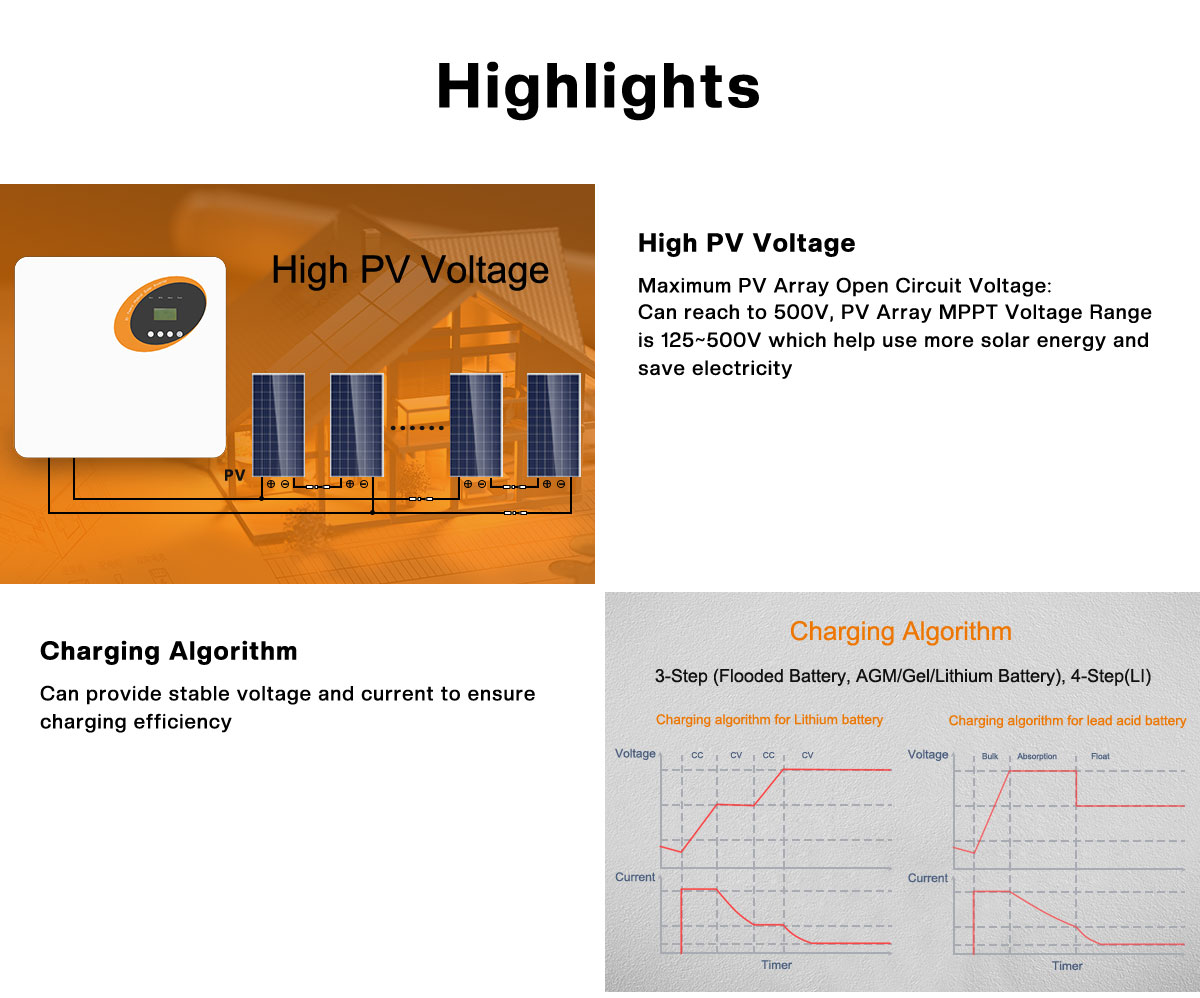

Max.PV voltage 550V
MPPT range/nominal 125V-500V /360V
Max. input current 14A/14A
MPPT tracker/strings 2月1日
AC output
Rated power w/va 6000VA/6000W
Max.output current 26A
Nominal voltage/range 230V / 180Vac~280Vac
Frequency 50/60Hz
PF 0.99lagging-0.99leading
THDl <3%
AC output topology L+N+PE
Battery
Battery voltage range 40~58V
Max. charging voltage 58V
Charge/discharge current 95A/110A
Battery type lithium /Lead-acid
Communication interface CAN/RS485
EPS output
Rated power w/va 6000VA/6000W
Rated voltage 230Vac
Rated current 26A
Rated frequency 50/60Hz
Automatic switchover time <20ms
THDU <2%
Overload capacity 110%, 60S/120%, 30s/150%, 10s
General data
Battery chage/dischage 95.5% / 95%
DC max. efficiency 97.60%
Euro efficiency 97%
MPPT efficiency 99.90%
Protection class IP65
Noise emission (typical) <35dB
Operation temperature -25C~+60°c
Cooling Natural
Relative humidity 0~95%(non-condensing)
Altitude 2000m

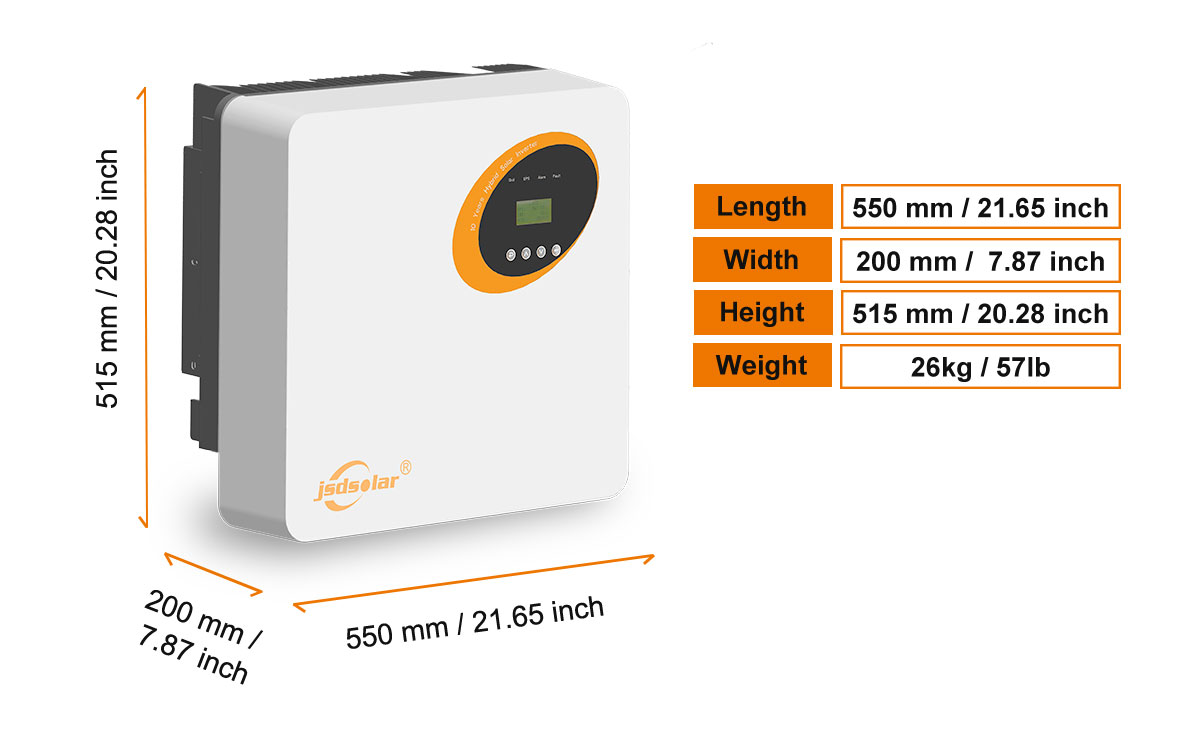

Dimensions (WXDXH) 550X200X515mm
Weight 26kg
Inverter topology without transformer
Self-consumption <3W
Features
Display LCD
Interface: RS485/wifi/can/drm yes / opt / yes / yes
Certificates CE、TUV、SAA

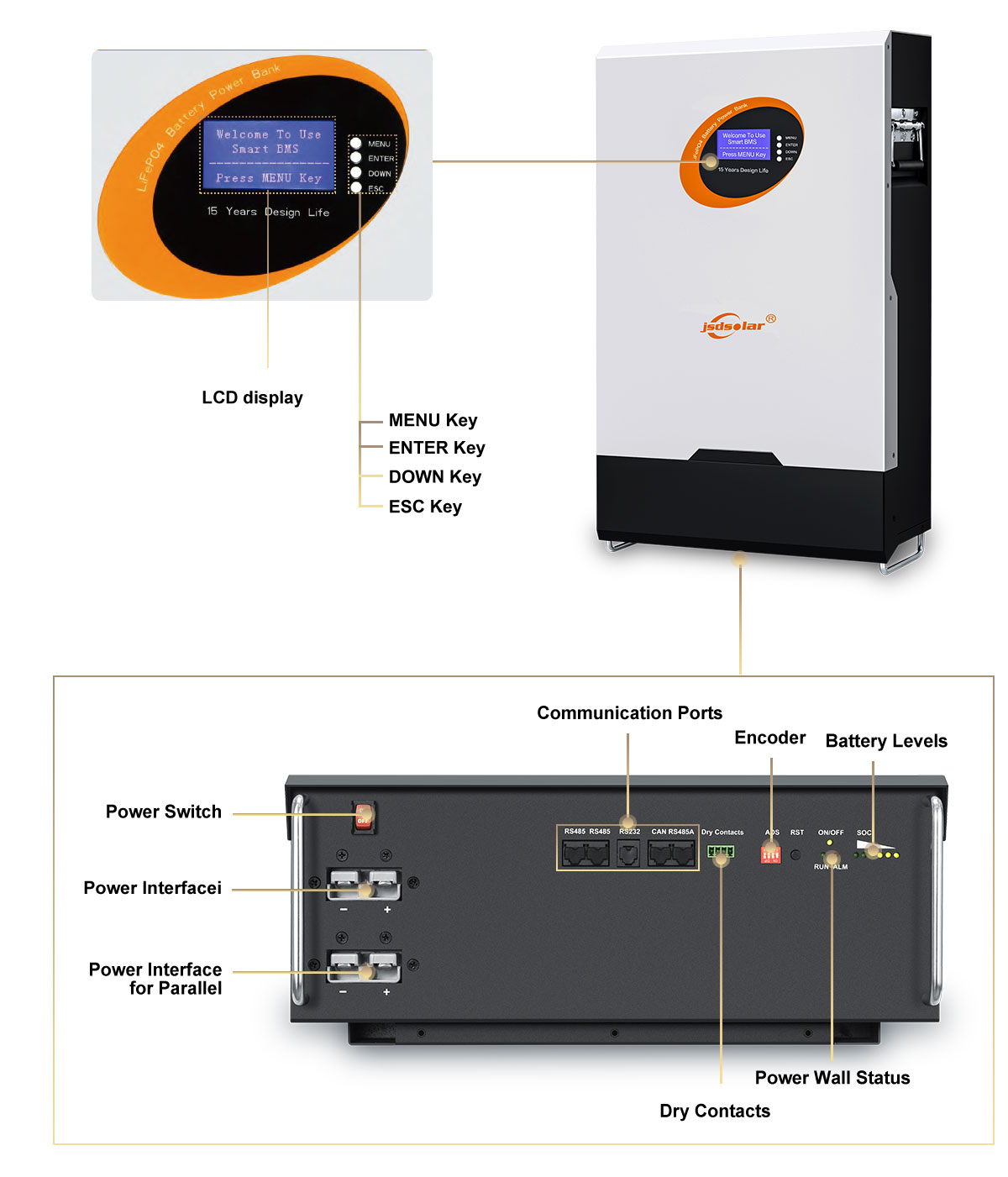

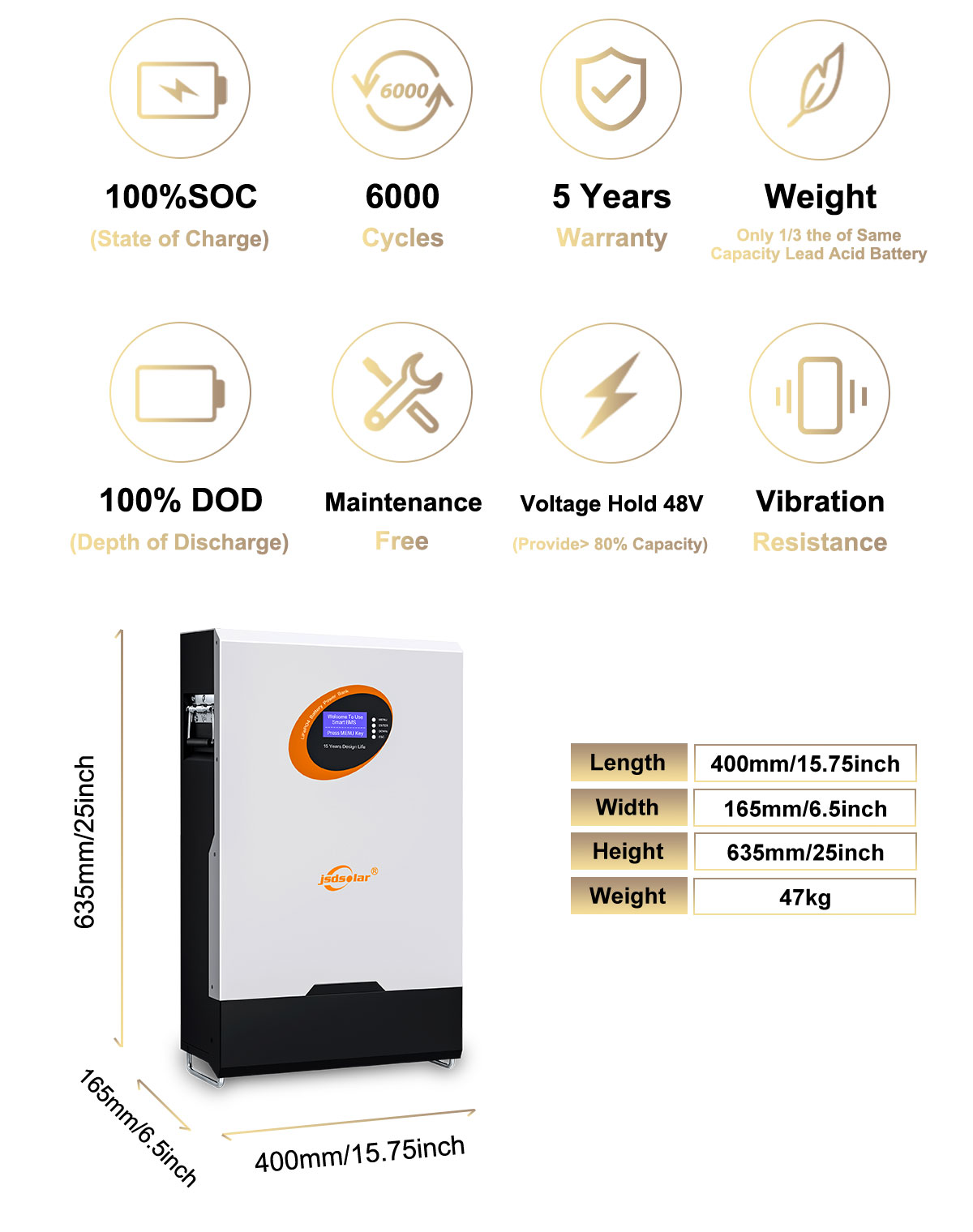

Mode BG48100
Normal Capacity 100Ah
Total Energy 5KWH
Battery Type LiFePO4
Normal Voltage 51.2V
Max.Charge / Discharge Current 100A
lnstallation Wall Mounted
Waterproof IP21&IP65
Communication Port RS232/RS485/CAN
Support Parallels Max.15pcs in Parallels
Dimension 635*400*165mm
weight 46KG
Certificates CE UN38.3
