Technical specification	J8KHP
lnput (PV)
Max.power(kW)	12
Max.DC voltage (V)	500

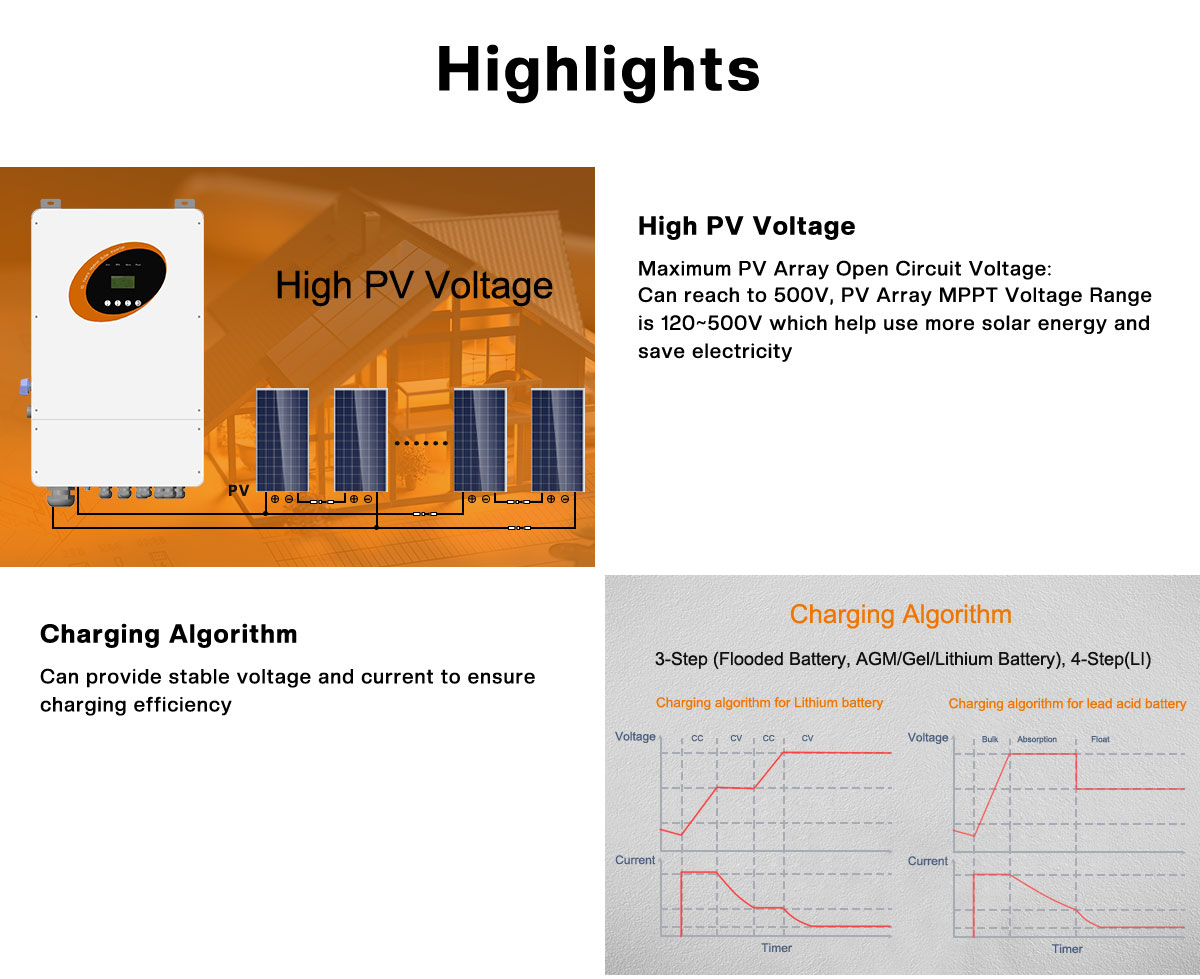

MPPT voltage range(V)	120~500
Max.input current of single MPPT(A)	12
MAX.short circuit current(A)	15
AC output
Rated output power(kVA)	8
Max.output power(kVA)	8.8
Max.output current(A)	38.3
Ac output voltage(V)	220,230,240
Frequency(Hz)	50/60 (45~55,55~65)
PF	0.8lagging-0.8leading
THDi	<2%
Battery
Nominal voltage (V)	48
Battery voltage range(V)	40~60
Max.charge/discharge current(A)	190/190
Battery type	lithium /Lead-acid
Charging strategy for Li-lon battery	Self-adaption to BMS
EPS output
Rated power(kVA)	8
Rated output voltage(V)	220, 230 ,240
Rated frequency(Hz)	50/60
THDu	<2%
Protection
Grounding detection	YES
Arc fault protection	optional
lsland protection	YES
Battery reverse polarity	YES
lnsulation resistor detection	YES
Residual current monitoring unit	YES
Output over current protection	YES
Back-up output short protection	YES
Terminal temperature detection	YES
Output over voltage/under voltage protection	YES
General data
Europe efficiency(PV)	≥97.8%
MAX. battery to load efficiency	≥97.2%
lngress protection	IP65
Noise emission(dB)	<38
Operation temperature	-25℃ ~60℃
Cooling	FAN Cooling
Relative humidity	0 ~95%(non-condensing)
Altitude	2,000m (>2,000 Derating)

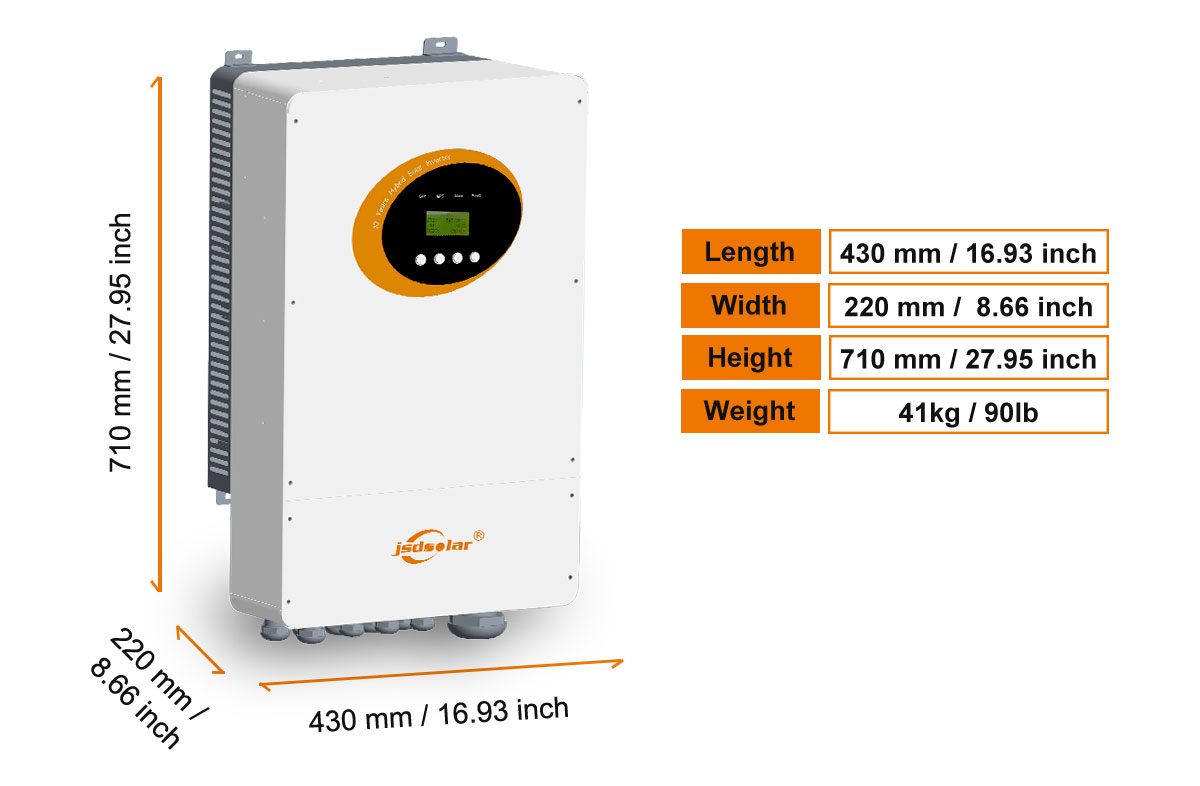

Dimensions W D H (mm)	430220710
Weight(kg)	41
Display	LCD，Touch panel (optinal)
Communication with BMS/meter/EMS	RS485，CAN
Communication interface	RS485, WLAN,4G (optional)
Self-consumption at night	<2.5 w (with battery enabling <5 w)
Certificates	South Africa NRS,IEC 62109-1/-2,IEC 61000-6-1,IEC 61000-6-3

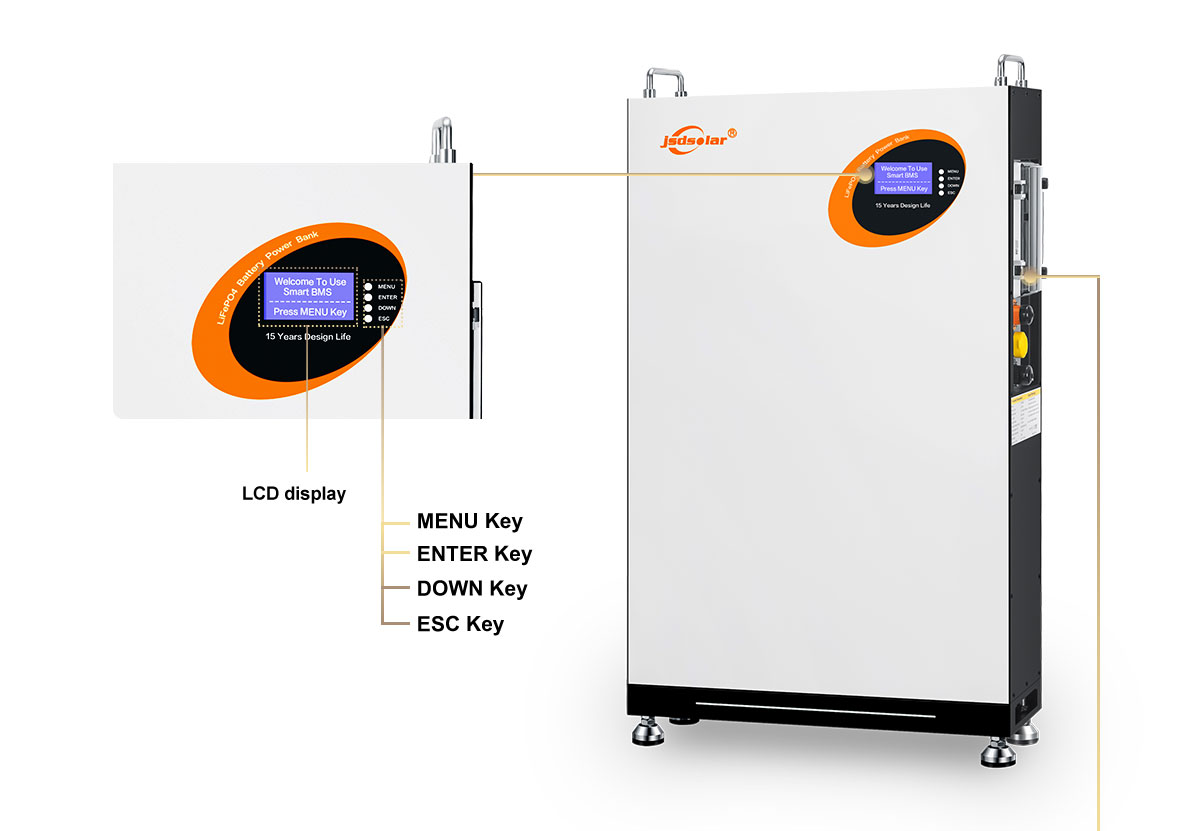

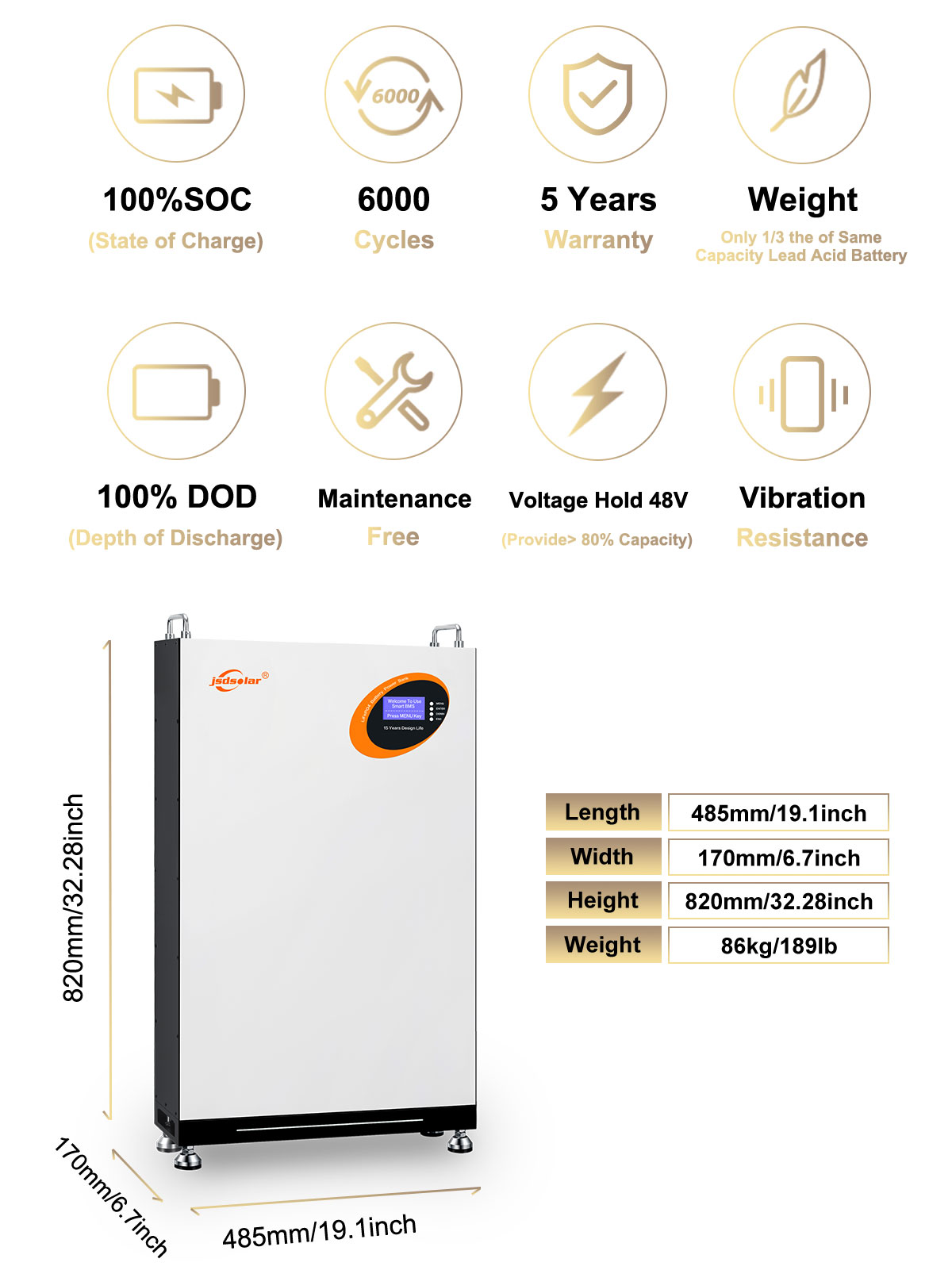

Mode	LFP48200
Normal Capacity	200Ah
Total Energy	10KWH
Battery Type	LiFePO4
Normal Voltage	51.2V
Max.Charge / Discharge Current	200A
lnstallation	Wall Mounted
Waterproof	IP21&IP65

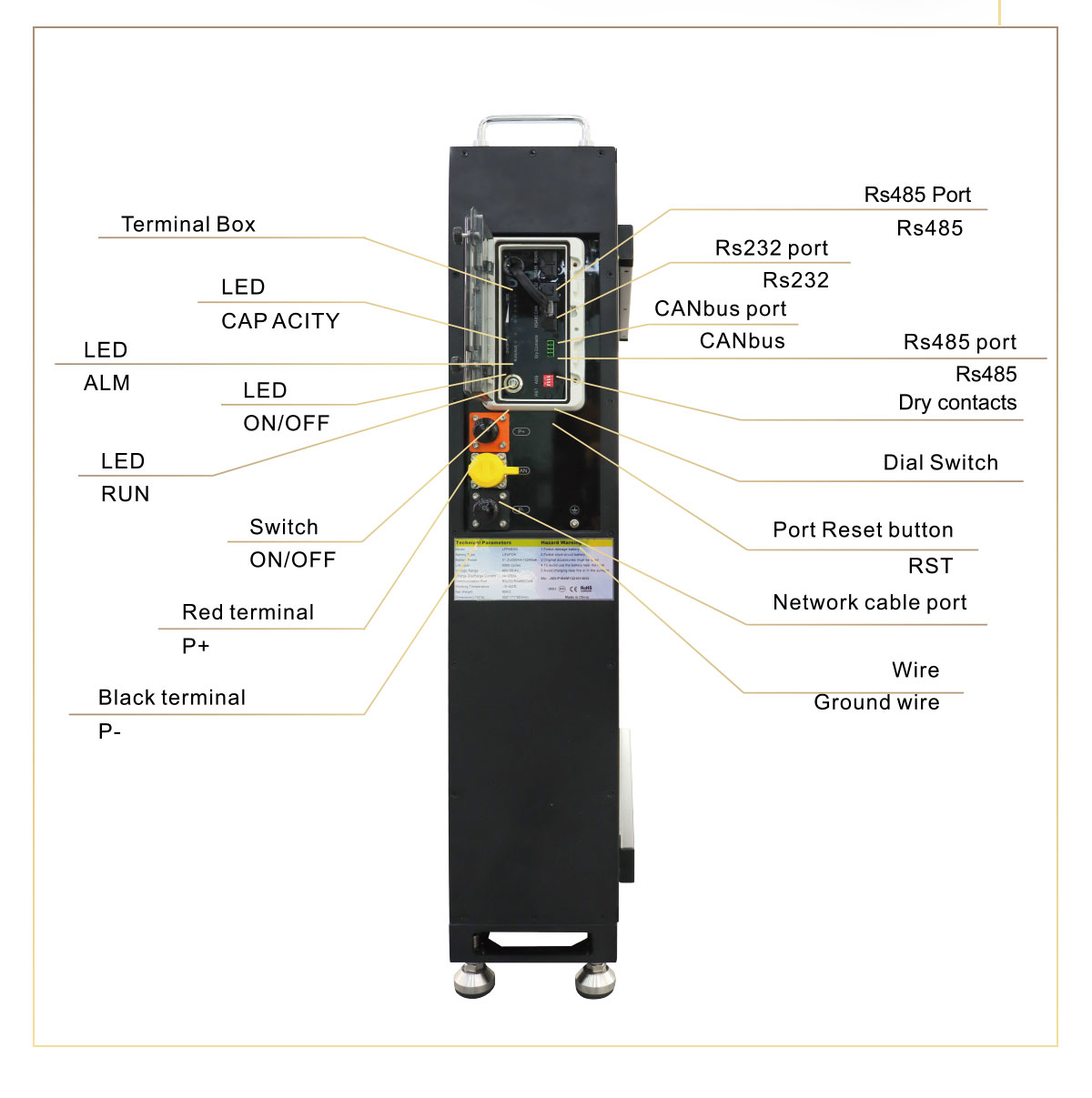

Communication Port	RS232/RS485/CAN
Support Parallels	Max.15pcs in Parallels
Dimension	485170820mm
weight	91KG
Certificates	CE UN38.3

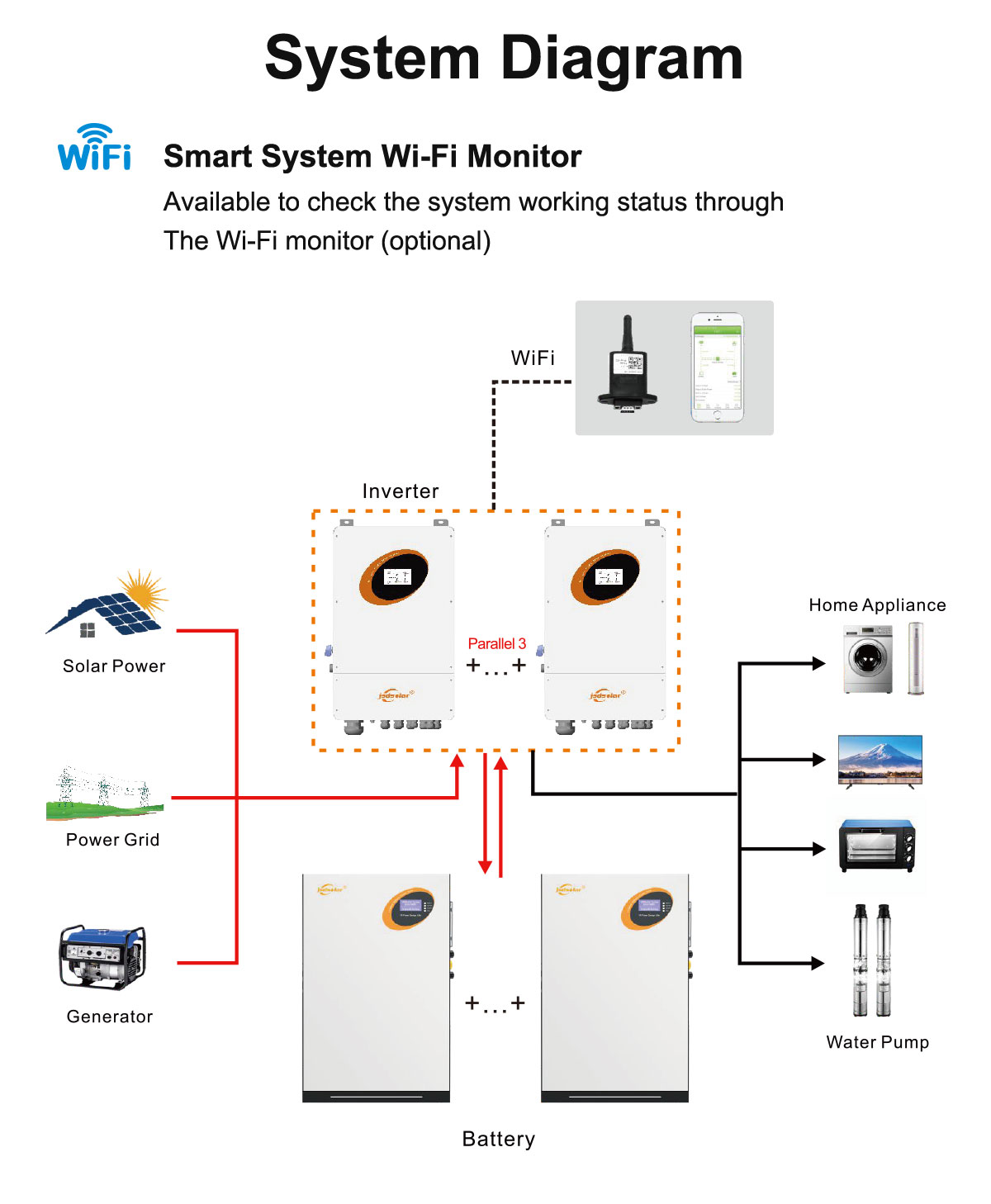

Solar Power System

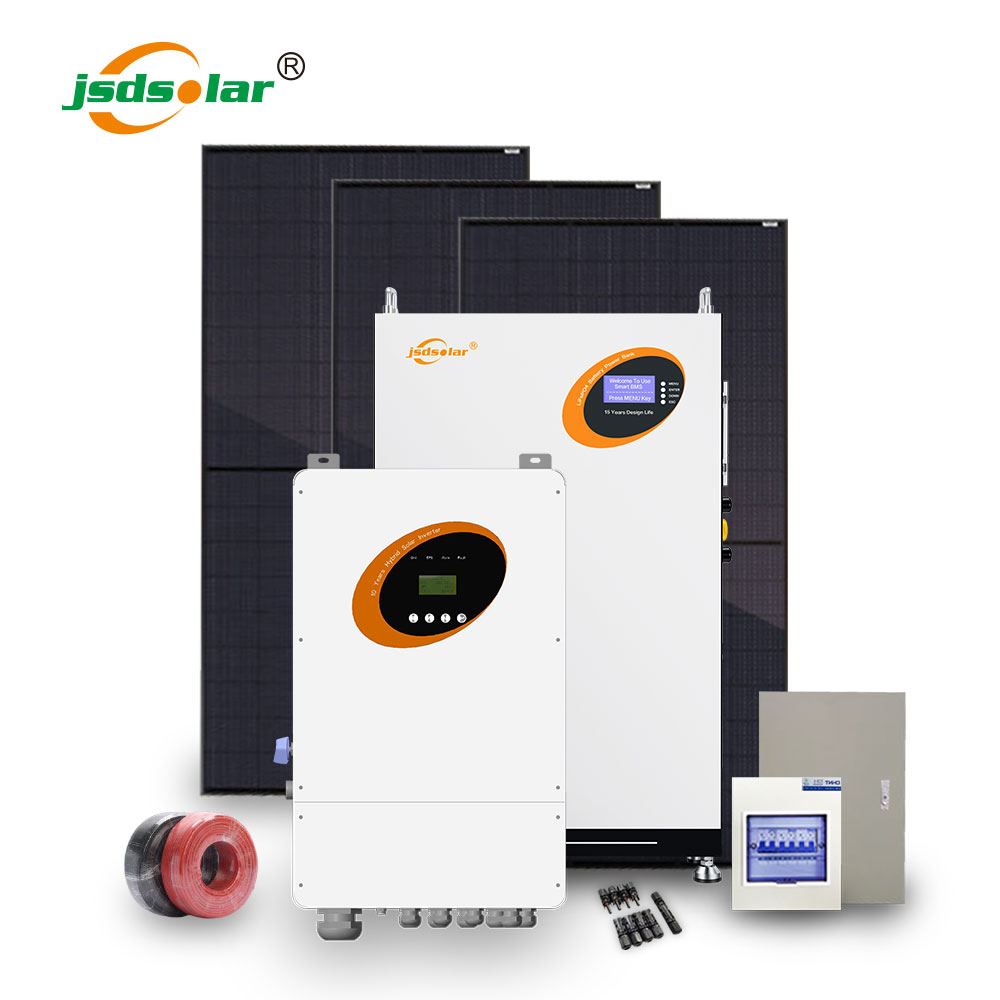

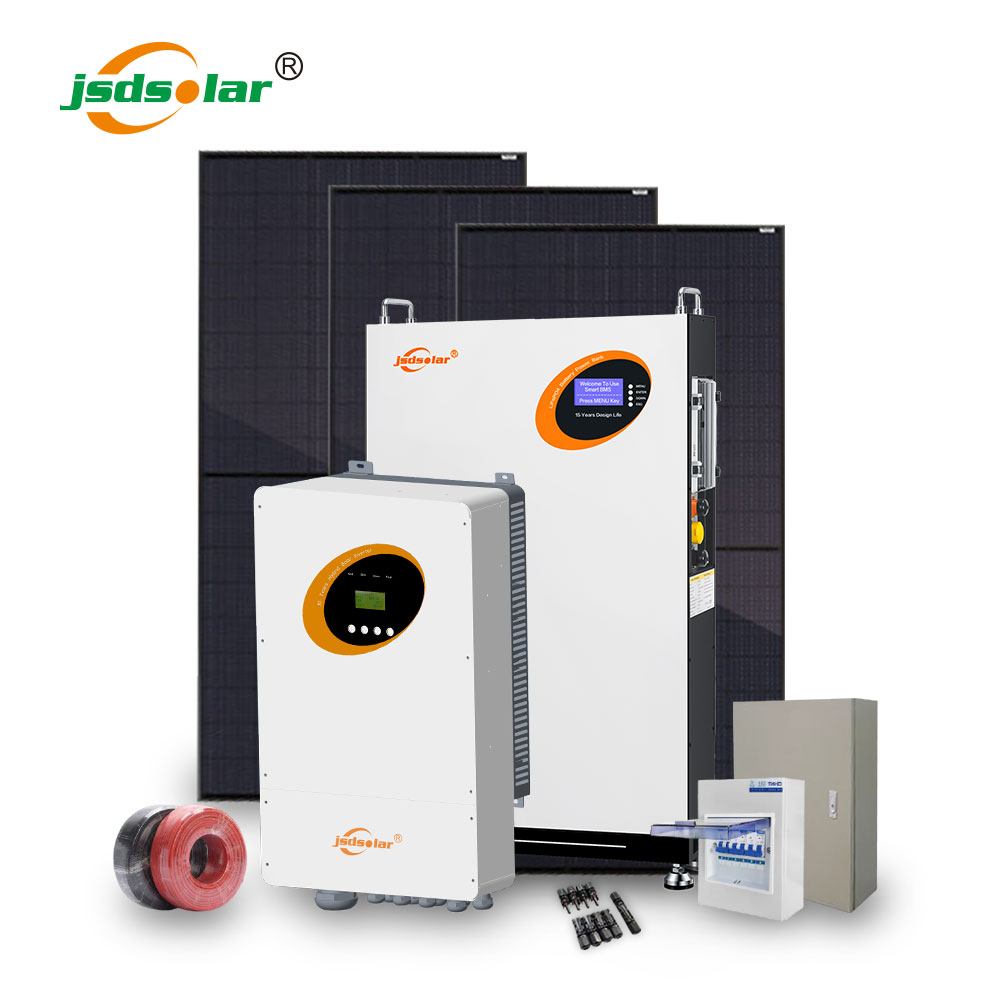

Solar Power System 8KW solar Inverter and 10KWH LiFePO4 battery
