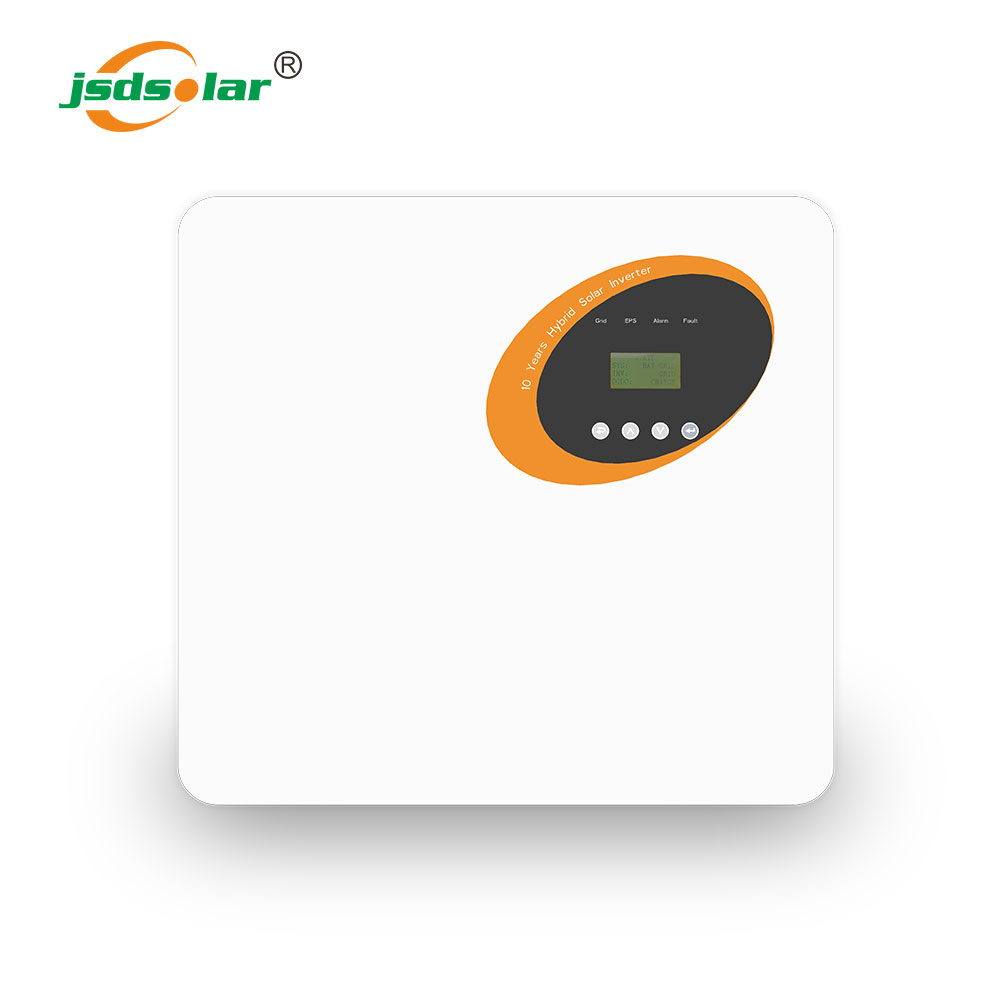

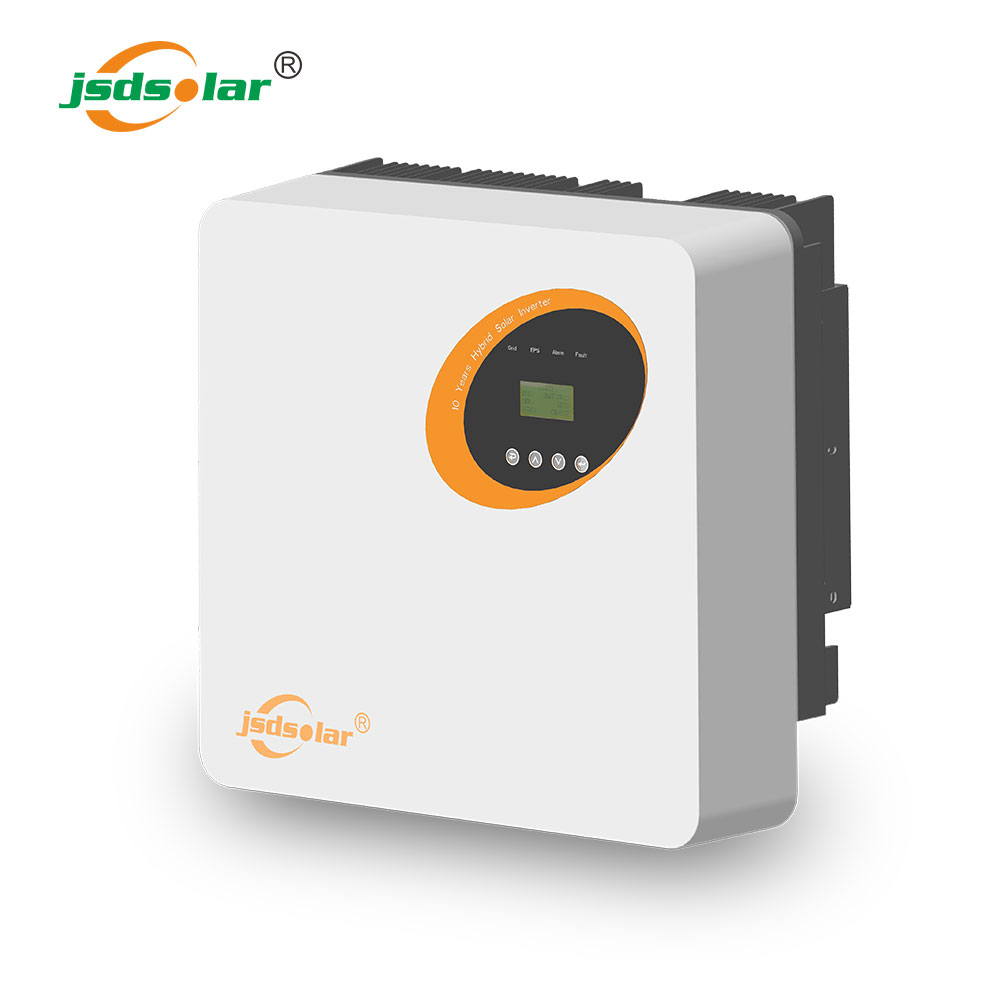

IP65-rated 6KW hybrid inverter with parallel capability and versatile compatibility

• IP65-rated, noiseless with aluminum heat dissipation for dustproof and

waterproof performance.

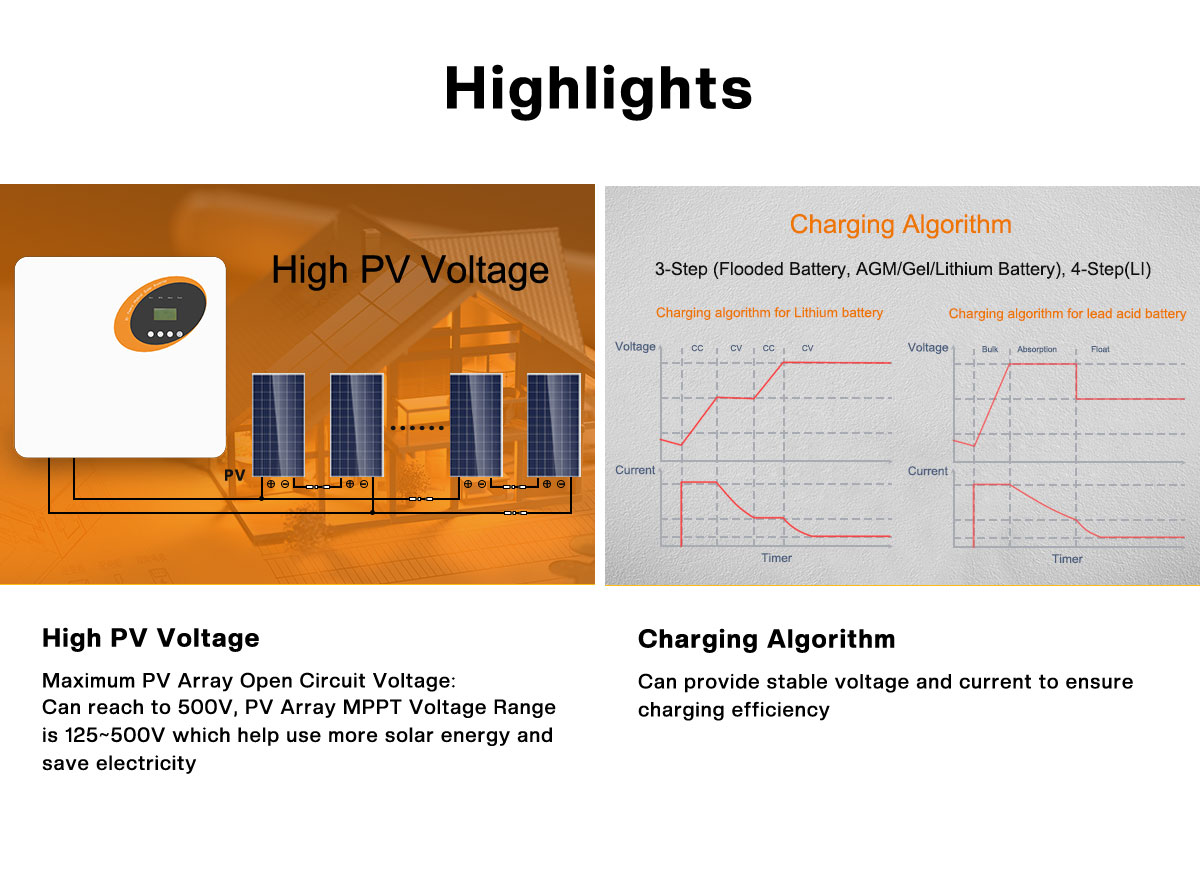

• High voltage model (550V) with 2-way MPPT for parallel connection of

solar panels.

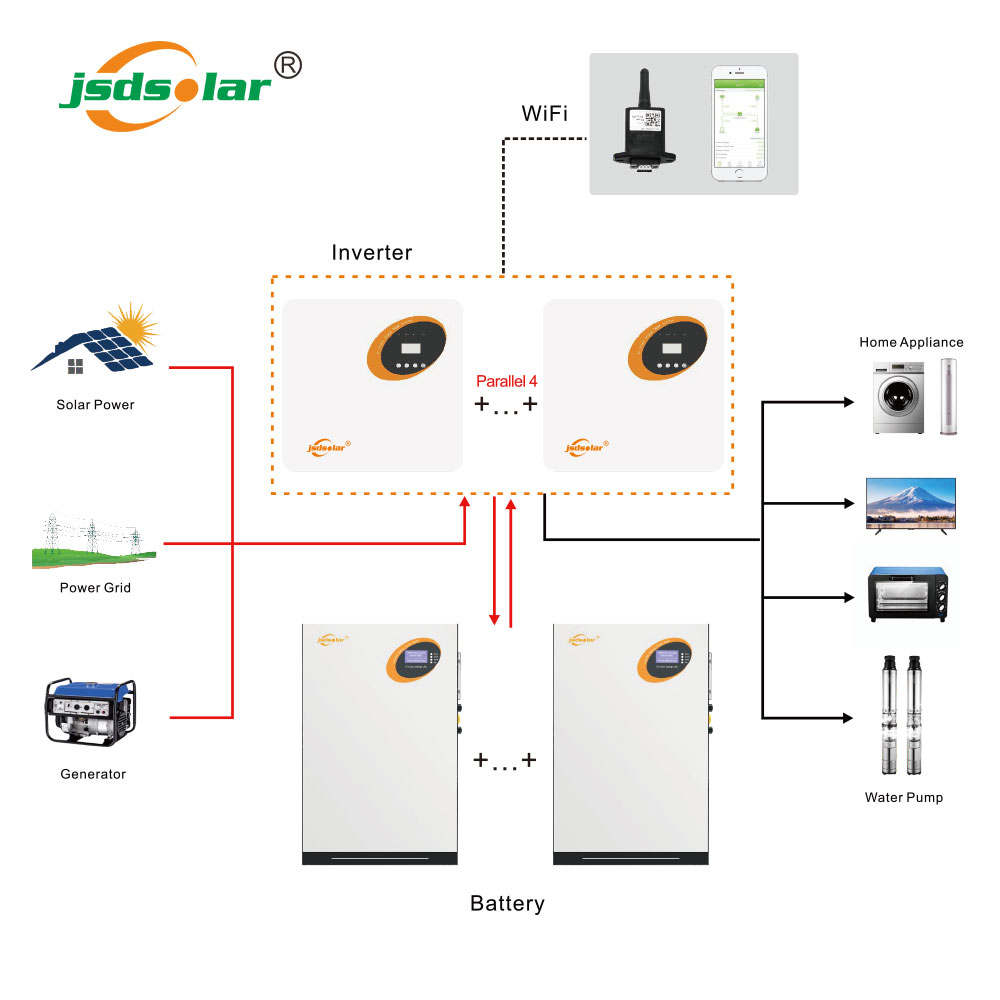

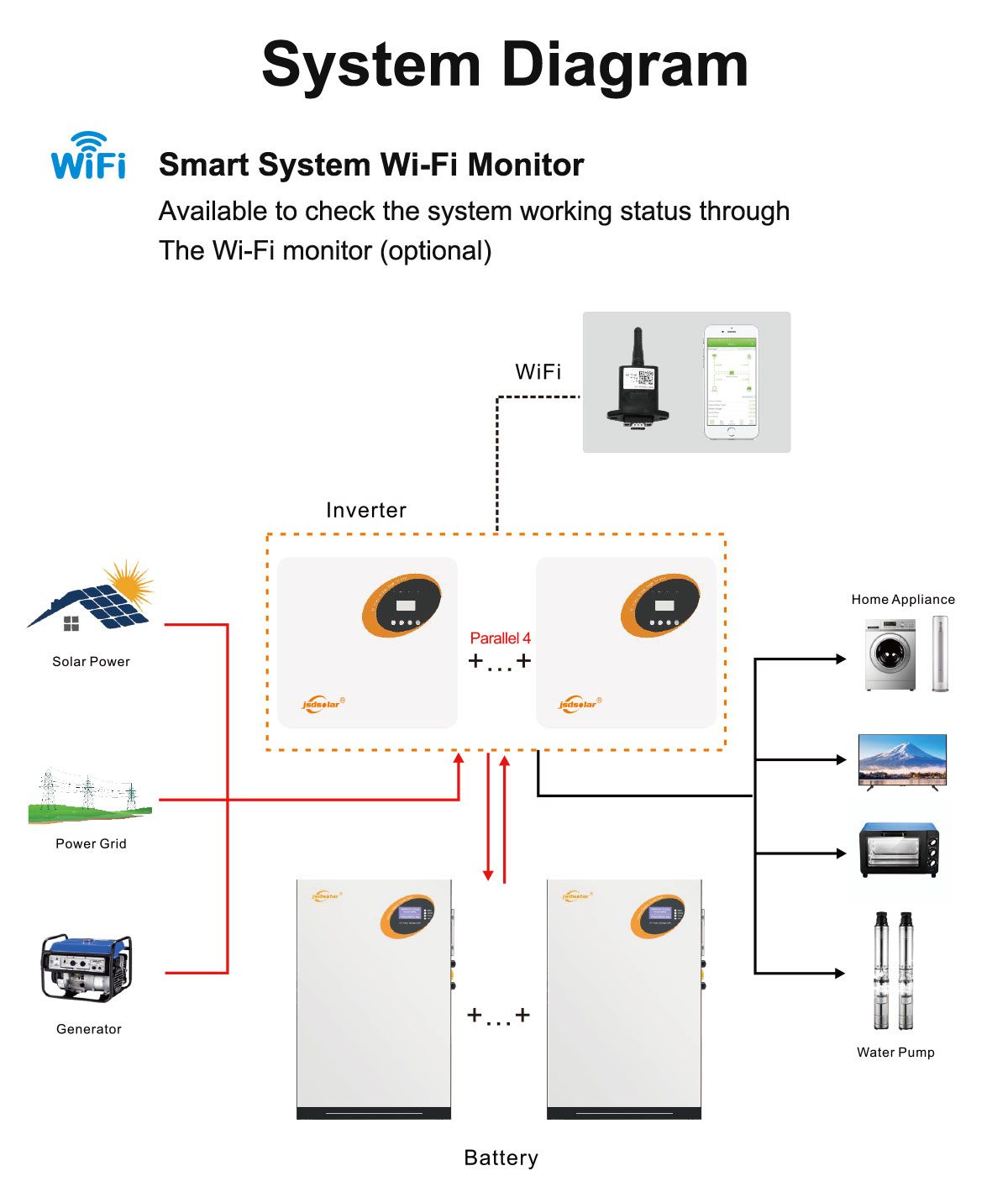

• Supports parallel operation of 6 units, preferably combined to 4 units.
• Customizable peak-shaving and valley-filling periods to maximize electricity

selling profits.
• Built-in multiple communication protocols for compatibility with various

market batteries.

Model	J6KHP
PV input
Max. Input Power	7000W
Start-up voltage	125V
Max.PV voltage	550V
MPPT range/nominal	125V-500V /360V
Max. input current	14A/14A
MPPT tracker/strings	2/1
AC output
Rated power w/va	6000VA/6000W
Max.output current	26A
Nominal voltage/range	230V / 180Vac~280Vac
Frequency	50/60Hz
PF	0.99lagging-0.99leading
THDl	<3%
AC output topology	L+N+PE
Battery
Battery voltage range	40~58V
Max. charging voltage	58V
Charge/discharge current	95A/110A
Battery type	lithium /Lead-acid
Communication interface	CAN/RS485
EPS output
Rated power w/va	6000VA/6000W
Rated voltage	230Vac
Rated current	26A
Rated frequency	50/60Hz
Automatic switchover time	<20ms
THDU	<2%
Overload capacity	110%, 60S/120%, 30s/150%, 10s
General data
Battery chage/dischage	95.5% / 95%
DC max. efficiency	97.60%
Euro efficiency	97%
MPPT efficiency	99.90%
Protection class	IP65
Noise emission (typical)	<35dB
Operation temperature	-25C~+60°c
Cooling	Natural
Relative humidity	0~95%(non-condensing)
Altitude	2000m

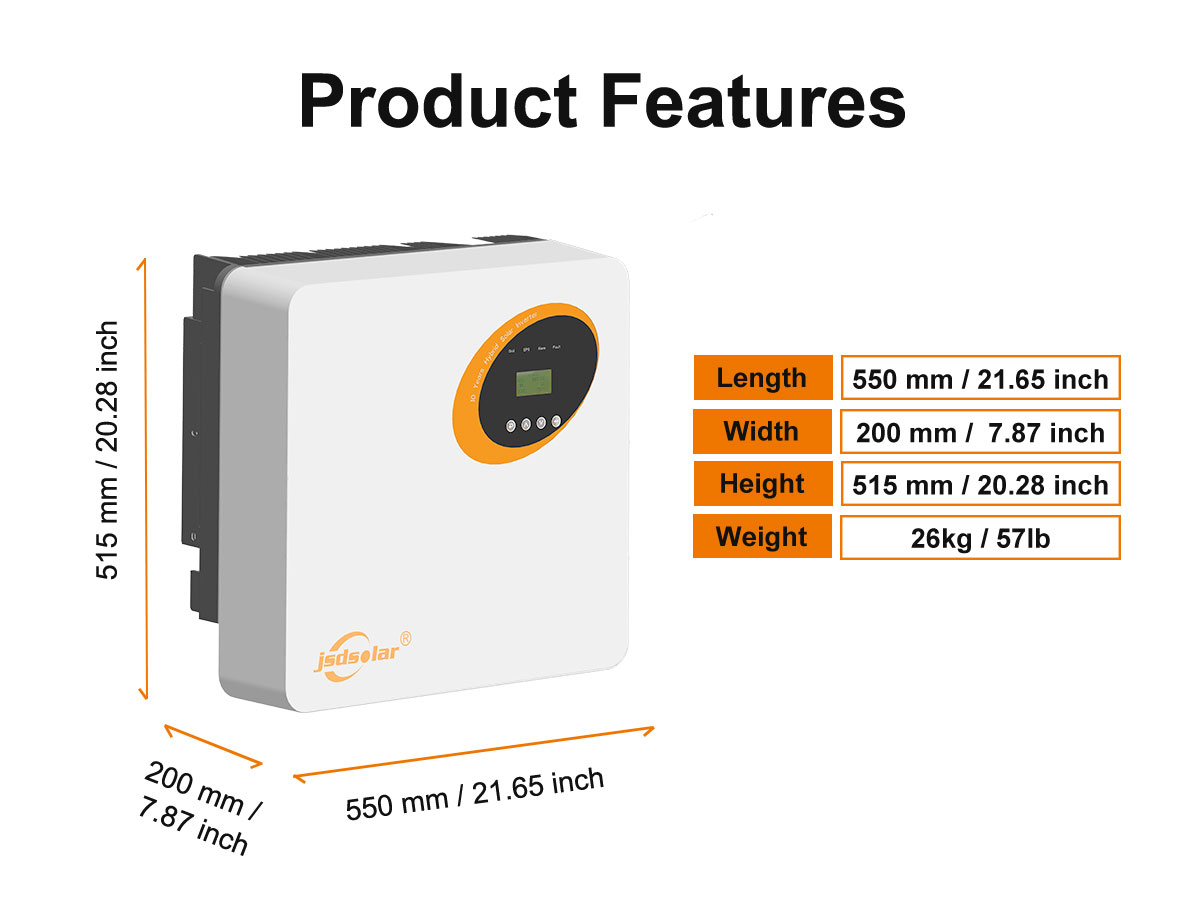

Dimensions (WXDXH)	550X200X515mm
Weight	26kg
Inverter topology	without transformer
Self-consumption	<3W

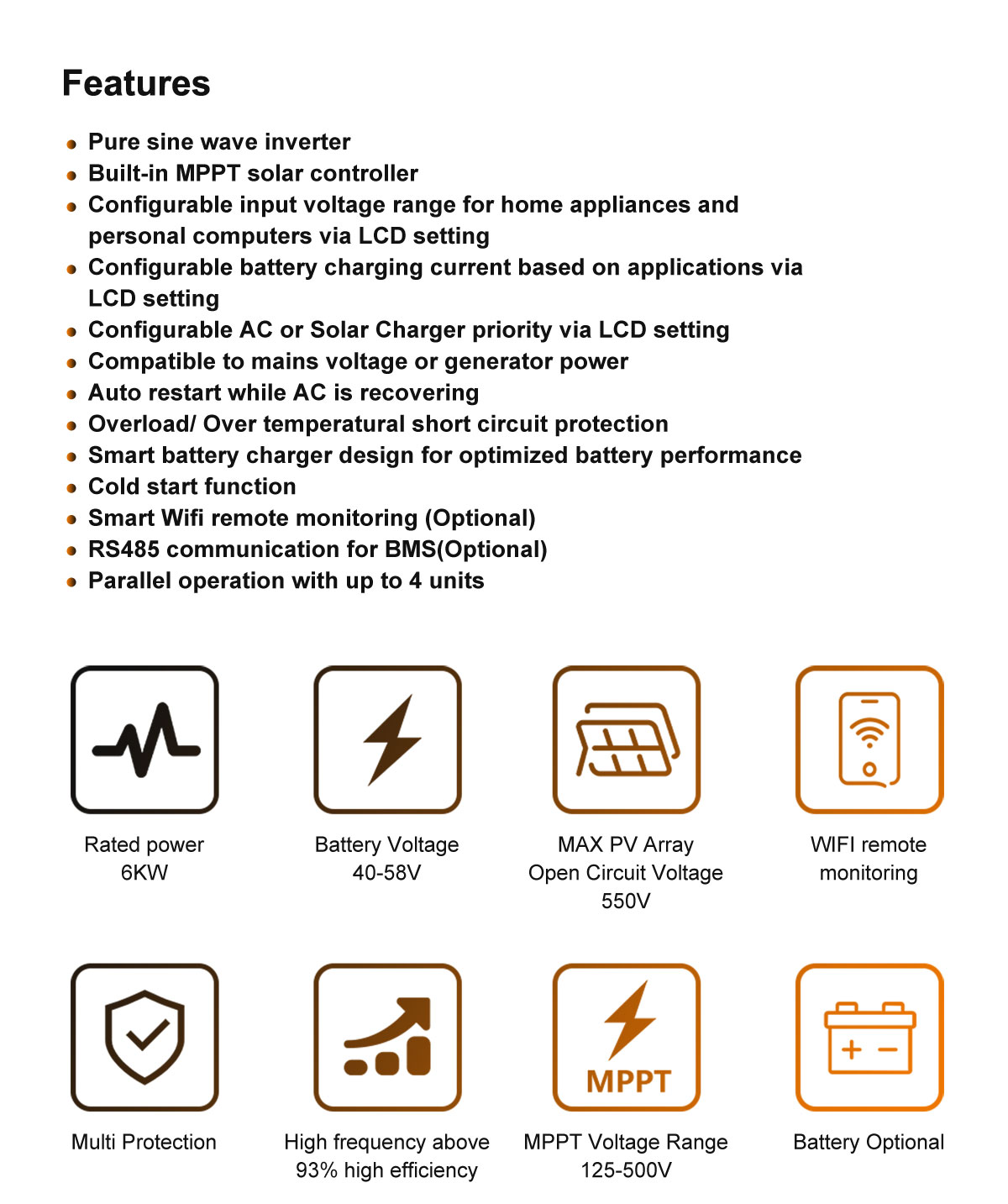

Features
Display	LCD
Interface: RS485/wifi/can/drm	yes / opt / yes / yes
Certificates	CE、TUV、SAA
